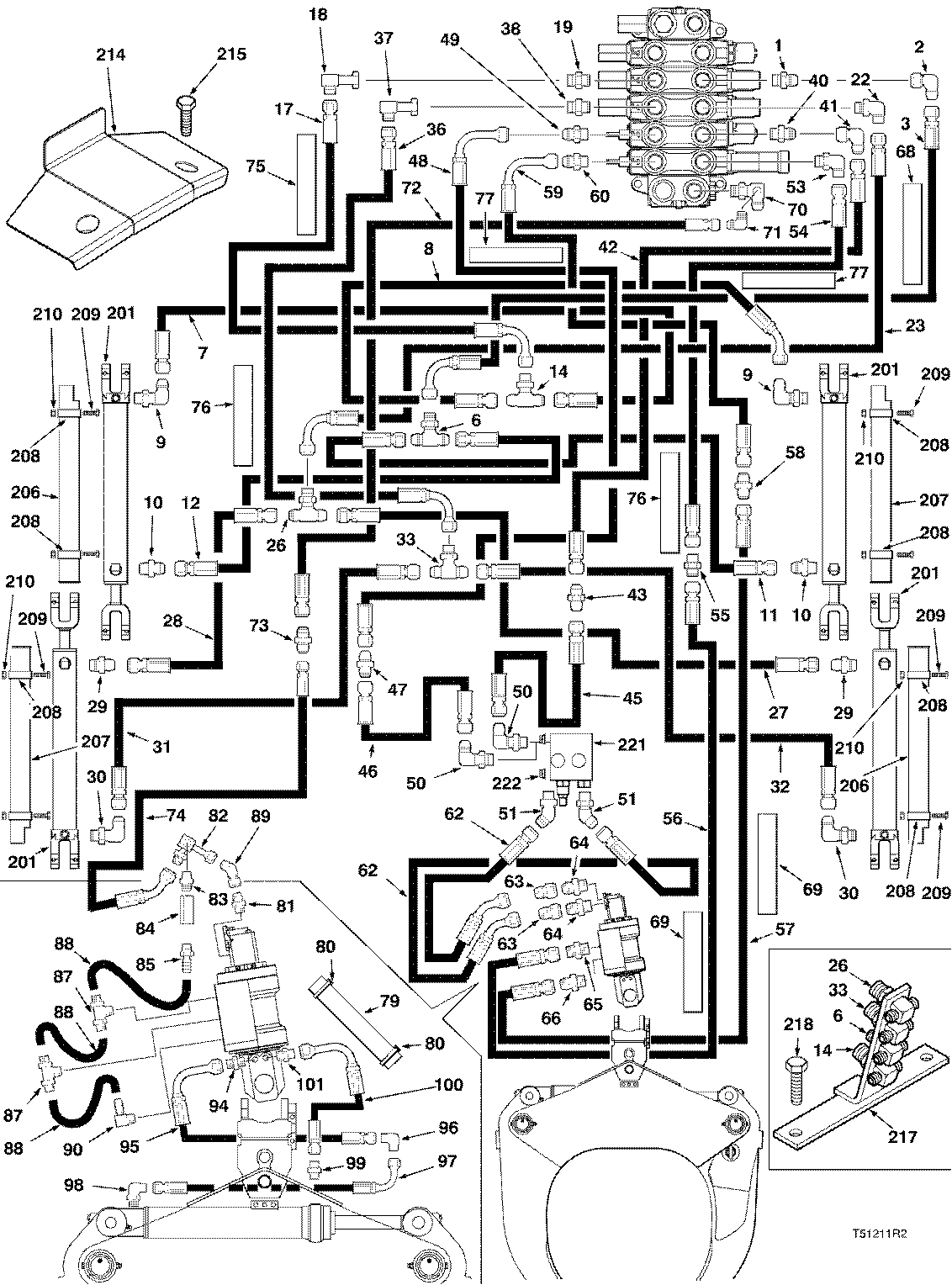

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A TJ105`` ( 974174 - 985712) 2000-382/10 [2000-382/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810490900	1	FITTING 1/2 MJIC 3/4 -	-
2	810433800	1	ELBOW-90 DEG.	-
3	811112500	1	HOSE-HYD*0.5X108 - (UP TO S/N 974272)	-
6	810787500	1	TEE	-
7	811247300	1	HOSE-HYD*0.5X68 -	-
8	F120279	1	HOSE-HYD*.50 X 68 - (660)	-
9	810292900	2	ELBOW-90 DEG. -	-
10	810490900	2	FITTING 1/2 MJIC 3/4 -	-
11	811249400	1	HOSE-HYD*0.5X97 -	-
12	811249400	1	HOSE-HYD*0.5X97 -	-
14	827318000	1	TEE-SPECIAL -	-
17	F121004	1	HOSE-HYD*.75 X 106 - (UP TO S/N 974272)	-
18	811730800	1	ELBOW-90 DEG. -	-
19	811439600	1	ADAPTER -	-
22	811437600	1	ELBOW-90 -	-
23	F121003	1	HOSE-HYD*.75 X 104 - (UP TO S/N 974272)	-
26	827318000	1	TEE-SPECIAL -	-
27	811246700	1	HOSE-HYD*0.50X52 -	-
28	811246700	1	HOSE-HYD*0.50X52 -	-
29	810490900	2	FITTING 1/2 MJIC 3/4 -	-
30	810292900	2	ELBOW-90 DEG. -	-
31	810932500	1	HOSE-HYD*0.50X26	-
32	810932500	1	HOSE-HYD*0.50X26	-
33	827318000	1	TEE-SPECIAL -	-
36	F121002	1	HOSE-HYD*.75 X 110 -	-
37	811730800	1	ELBOW-90 DEG. -	-
38	811439600	1	ADAPTER -	-
40	810425400	1	FITTING 3/8 MJIC 3/4	-
41	810335500	1	ELBOW-90 DEG. -	-
42	811419300	1	HOSE-HYD*0.38X104 -	-
43	810630200	1	FITTING -	-
45	811992500	1	HOSE-HYD*.38 X 118 - (660)	-
46	811992500	1	HOSE-HYD*.38 X 118 - (660)	-
47	810630200	1	FITTING -	-
48	F121005	1	HOSE-HYD*.38 X 106 -	-
49	810425400	1	FITTING 3/8 MJIC 3/4	-
50	810280500	2	ELBOW-90 DEG. -	-
51	810564700	2	ELBOW-45 DEG. -	-
53	811437600	1	ELBOW-90 -	-
54	F121001	1	HOSE-HYD*.75 X 98 -	-
55	811464300	1	FITTING -	-
56	F122212	1	HOSE-HYD*.75X136 -	-
57	F122211	1	HOSE-HYD*.50X134 -	-
58	810348700	1	FITTING -	-
59	811112700	1	HOSE-HYD*0.50X108 -	-
60	810490900	1	FITTING 1/2 MJIC 3/4 -	-
62	F120237	2	HOSE-HYD* .38 X 22 -	-
63	810749600	2	FITTING MJIC/FJIC	-
64	810270000	2	FITTING*METRIC -	-
65	811439600	1	ADAPTER -	-
66	810490900	1	FITTING 1/2 MJIC 3/4 -	-
68	826494100	1	SLEEVE	-
69	F284480	2	SLEEVE -	-
70	F280312	1	ELBOW REWORK -	-
71	810189400	1	ELBOW-90 DEG.	-
72	811983700	1	HOSE-HYD*.38 X 90 -	-
73	810630200	1	FITTING -	-
74	F121121	1	HOSE-HYD*.38 X 180 -	-
75	F281986	1	SLEEVE - 60``	-
76	F277976	2	SLEEVE - 40``	-
77	F281985	2	SLEEVE - 80``	-
79	826791300	1	SLEEVE -	-
80	810402100	2	TIE WRAP -	-
81	810887400	1	FITTING -	-
82	826312100	1	ELBOW	-
83	811131500	1	NIPPLE	-
84	811160400	1	VALVE-CHECK	-
85	811172000	1	FITTING -	-
87	811204500	2	FITTING-TEE -	-
88	826311900	3	HOSE -	-
89	811675600	1	ELBOW-45 DEG.	-
90	811172100	1	ELBOW -	-
94	811439600	1	ADAPTER -	-
95	811957800	1	HOSE-HYD*.75 X 40 -	-
96	811732700	1	ELBOW-90 DEG. -	-
97	F120922	1	HOSE-HYD*.75 X 30 -	-
98	811437600	1	ELBOW-90 -	-
99	811439600	1	ADAPTER -	-
100	F120274	1	HOSE-HYD*.75 X 37 -	-
101	811439600	1	ADAPTER -	-
201	-------	4	O-RING	-
206	827072400	2	COVER -	-
207	827061900	2	COVER -	-
208	826906300	8	BAND -	-
209	811700900	8	SCREW*M10X1.50-110 -	-
210	811268300	8	LOCKNUT*M10X1.5 -	-
214	F280896	1	WELD`T-COVER -	-
215	811703800	2	SCREW*M16X2.00-45mm -	-
217	F277683	1	BRACKET -	-
218	811181400	2	BOLT*M20X2.50-50 -	-
221	F122355	1	VALVE -	-
222	811706900	2	LOCKNUT*M8X1.25 -	-
-	-------	2	O-RING	-
-	-------	2	O-RING	-
-	811853600	1	HOSE-HYD*.50 X 112`` - (S/N 974273 & UP)	-
-	F284444	1	BULKHEAD - (S/N 974273 & UP)	-
-	F121002	1	HOSE-HYD*.75 X 110 -	-
-	F121352	1	HOSE-HYD*.75 X 108 -	-
-	F435504	1	SEAL KIT -	-
-	F121353	1	HOSE-HYD*.75 X 114 -	-

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A TJ105`` ( 974174 - 985712) 2000-382/10 [2000-382/10]
