Открытый узел

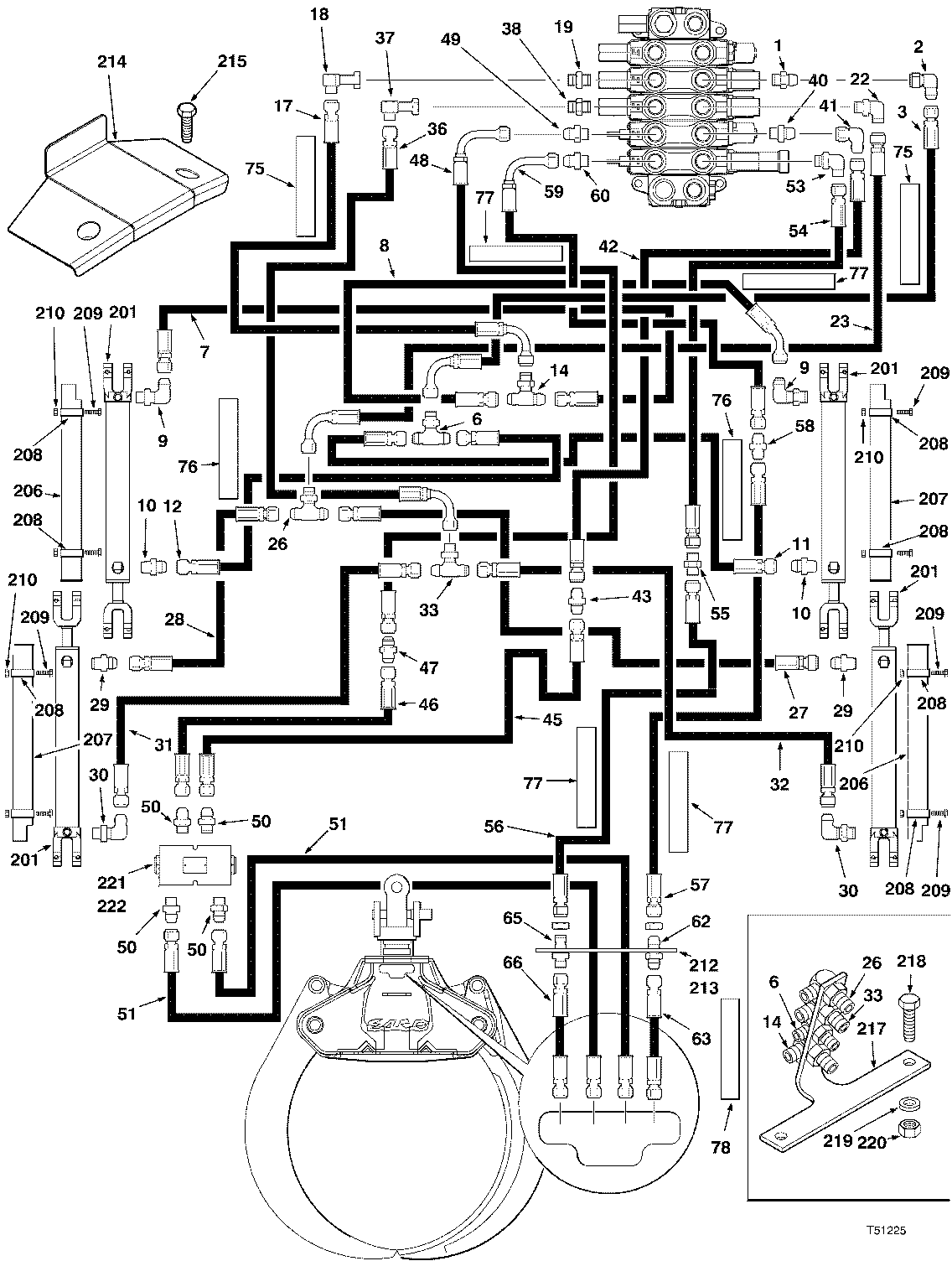

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A ESCO ( 962772 - 974173) 2000-306/14 [2000-306/14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810490900	1	FITTING 1/2 MJIC 3/4 -	-
2	810433800	1	ELBOW-90 DEG.	-
3	811112500	1	HOSE-HYD*0.5X108 - (UP TO S/N 974272)	-
6	810787500	1	TEE	-
7	811247300	1	HOSE-HYD*0.5X68 -	-
8	F120279	1	HOSE-HYD*.50 X 68 - (660)	-
9	810292900	2	ELBOW-90 DEG. -	-
10	810490900	2	FITTING 1/2 MJIC 3/4 -	-
11	811249400	1	HOSE-HYD*0.5X97 -	-
12	811249400	1	HOSE-HYD*0.5X97 -	-
14	827318000	1	TEE-SPECIAL -	-
17	F121004	1	HOSE-HYD*.75 X 106 - (UP TO S/N 974272)	-
18	811730800	1	ELBOW-90 DEG. -	-
19	811439600	1	ADAPTER -	-
22	811437600	1	ELBOW-90 -	-
23	F121003	1	HOSE-HYD*.75 X 104 - (UP TO S/N 974272)	-
26	827318000	1	TEE-SPECIAL -	-
27	810935000	1	HOSE-HYD*0.50X52	-
28	810935000	1	HOSE-HYD*0.50X52	-
29	810490900	2	FITTING 1/2 MJIC 3/4 -	-
30	810292900	2	ELBOW-90 DEG. -	-
31	810932500	1	HOSE-HYD*0.50X26	-
32	810932500	1	HOSE-HYD*0.50X26	-
33	827318000	1	TEE-SPECIAL -	-
36	F121002	1	HOSE-HYD*.75 X 110 -	-
37	811730800	1	ELBOW-90 DEG. -	-
38	811439600	1	ADAPTER -	-
40	810425400	1	FITTING 3/8 MJIC 3/4	-
41	810335500	1	ELBOW-90 DEG. -	-
42	811419300	1	HOSE-HYD*0.38X104 -	-
43	810630200	1	FITTING -	-
45	810848200	1	HOSE-HYD*0.38X110 - (560)	-
46	810848200	1	HOSE-HYD*0.38X110 - (560)	-
47	810630200	1	FITTING -	-
48	F121005	1	HOSE-HYD*.38 X 106 -	-
49	810425400	1	FITTING 3/8 MJIC 3/4	-
50	810328600	4	FITTING 3/8 MJIC 3/8	-
51	F120229	2	HOSE-HYD*.38 X 67	-
53	811437600	1	ELBOW-90 -	-
54	F121001	1	HOSE-HYD*.75 X 98 -	-
55	811464300	1	FITTING -	-
56	F120993	1	HOSE-HYD*.75 X 128	-
57	811250100	1	HOSE-HYD*0.5X126	-
58	810348700	1	FITTING -	-
59	811112700	1	HOSE-HYD*0.50X108 -	-
60	810490900	1	FITTING 1/2 MJIC 3/4 -	-
62	810328400	1	ADAPTER -	-
63	811977800	1	HOSE-HYD* .50 X 54 -	-
65	811634100	1	ADAPTER -	-
66	811760200	1	HOSE-HYD*0.75X54 -	-
75	F281986	2	SLEEVE - 60``	-
76	F277977	2	SLEEVE - 30``	-
77	F281985	4	SLEEVE - 80``	-
78	826051700	1	SLEEVE	-
201	-------	4	O-RING	-
206	827072400	2	COVER -	-
207	827061900	2	COVER -	-
208	826906300	8	BAND -	-
209	811700900	8	SCREW*M10X1.50-110 -	-
210	811268300	8	LOCKNUT*M10X1.5 -	-
212	827309200	1	PLATE	-
213	811701300	3	SCREW*M12X1.75-25 -	-
214	F280896	1	WELD`T-COVER -	-
215	811703800	2	SCREW*M16X2.00-45mm -	-
217	F277683	1	BRACKET -	-
218	811181400	2	BOLT*M20X2.50-50 -	-
219	810183200	2	Washer	-
220	811337100	2	NUT*M20X2.50 -	-
221	811939300	1	VALVE -	-
222	811706800	2	LOCKNUT*M6X1.00 -	-
-	F281055	1	SLEEVE - 54`` (120`` ONLY)	-
-	811271000	1	Hydraulic Hose	-
-	F120856	1	HOSE-HYD.*.50X60 - (120`` ONLY)	-
-	843125300	2	CARTRIDGE -	-
-	841732200	1	REPAIR KIT - FOR ITEM 4	-
-	810620400	2	HOSE-HYD*0.38X75 - (120`` ONLY)	-

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A ESCO ( 962772 - 974173) 2000-306/14 [2000-306/14]
