Открытый узел

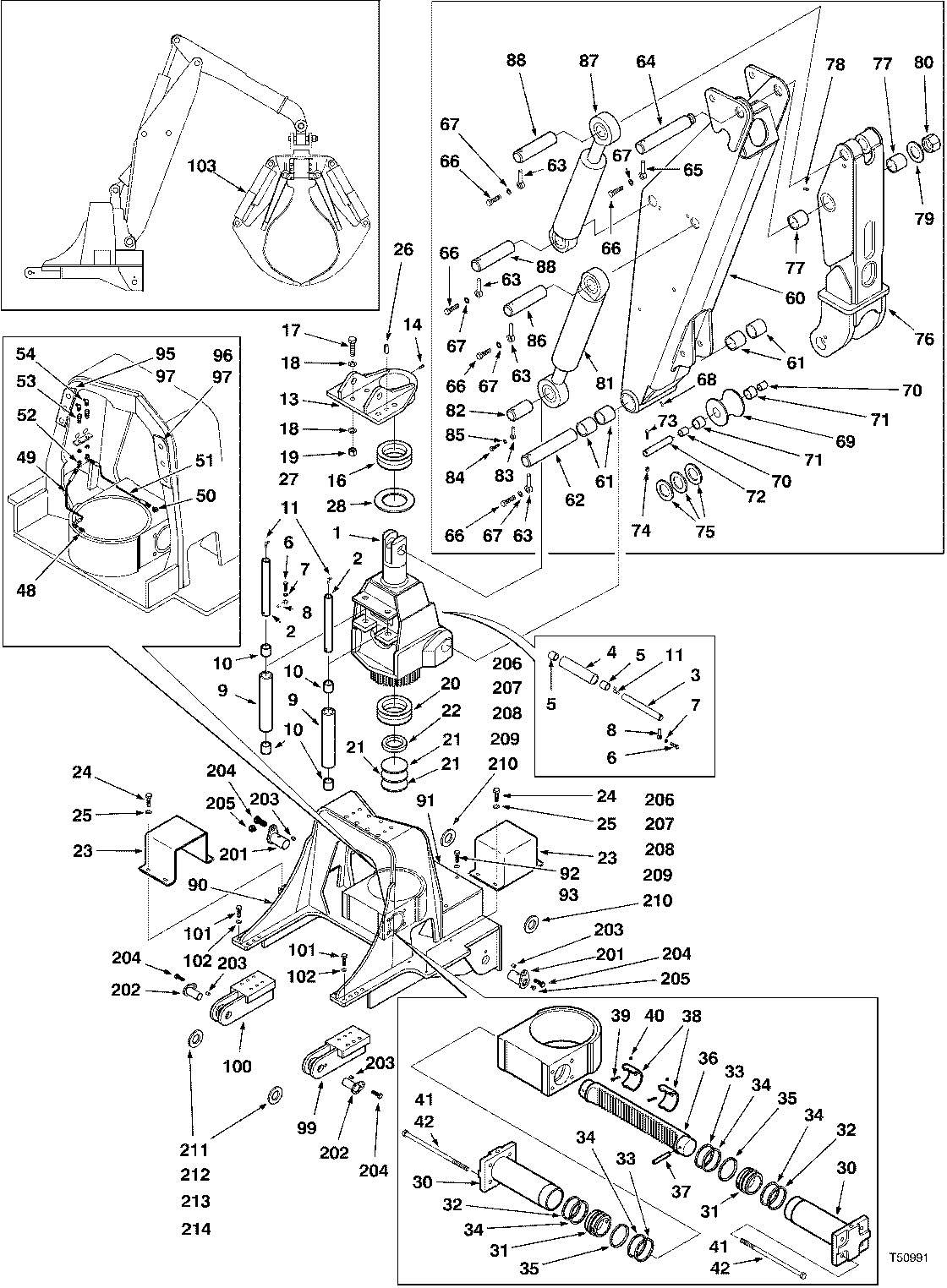

GRAPPLE SWING BOOM ASSY ( CE2001 - 10EB1276) 4321-026/10 [4321-026/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F433078	1	KING POST -	-
2	F433079	2	PIN-VERTICAL -	-
3	F433080	1	PIN-HORIZONTAL -	-
4	F433081	1	ROLLER ASSY - HORIZONTAL	-
5	F433082	2	BUSHING -	-
6	810082200	3	BOLT*1/2-13UNCX1-1/4	-
7	810011600	3	WASHER*1/2	-
8	841721400	3	LOCK - BANJO	-
9	F433083	2	ROLLER ASSY - VERTICAL	-
10	F433082	2	BUSHING -	-
11	810000100	3	GREASE FITTING.N610	-
13	F433084	1	SADDLE CAP ASSY -	-
14	810000100	1	GREASE FITTING.N610	-
16	F433085	1	BALL BUSHING - UPPER	-
17	810883900	8	BOLT*1-8UNCX4-1/2	-
18	810020200	16	WASHER*1	-
19	810180000	8	NUT*1-8UNC	-
20	842706800	1	BEARING - LOWER	-
21	F433086	1	SHIM SET -	-
22	F433087	1	THRUST BEARING -	-
23	F433088	2	SWING COVER -	-
24	810082200	8	BOLT*1/2-13UNCX1-1/4	-
25	810011600	8	WASHER*1/2	-
26	F433089	2	DOWEL PIN -	-
27	810147600	8	LOCKNUT*1-8UNC	-
28	F433090	1	SHIM RADIUS RING -	-
30	F433091	2	TUBE ASSY -	-
31	F433092	2	PISTON -	-
32	-------	2	O-RING	-
33	-------	2	O-RING	-
34	-------	4	O-RING	-
35	-------	2	O-RING	-
36	F433093	1	RACK GEAR -	-
37	F433094	2	PISTON PIN -	-
38	F433095	2	RACK BEARING -	-
39	F433096	2	BOLT*3/8-16X2 -	-
40	F433097	2	NUT*3/8-16 -	-
41	F433098	8	BOLT*3/4-10X17-3/4 -	-
42	810002100	8	WASHER*3/4	-
48	810280700	1	FITT*1/8NPTFX7/16-20 -	-
49	F433099	1	HOSE - GREASE	-
50	810273400	1	Elbow Fitting	-
51	F433100	1	HOSE - GREASE	-
52	F433101	2	SWIVEL-45 -	-
53	811103400	2	Fitting	-
54	810044000	2	GREASE FIT*1/8-27PTF -	-
60	F433103	1	MAIN BOOM -	-
61	F433104	4	BUSHING -	-
62	F433105	1	PIN - MAIN BOOM	-
63	841941400	4	LOCK*3/4 - BANJO	-
64	F433106	1	PIN-JIB JOINT -	-
65	F433107	1	LOCK PIN -	-
66	841922000	5	BOLT	-
67	810004200	5	LOCKWASHER 3/4	-
68	810000100	1	GREASE FITTING.N610	-
69	F433108	1	ARCH ROLLER -	-
70	F433109	2	BEARING RACE - OUTER	-
71	F433110	2	BEARING RACE - INNER	-
72	F433111	1	PIN-ARCH ROLLER -	-
73	810080800	1	BOLT*3/8-16UNCX2-3/4	-
74	841917200	1	LOCKNUT*3/8 -	-
75	F433112	1	SHIM KIT - MAIN BOOM	-
76	F433113	1	JIB BOOM -	-
77	F433114	2	BUSHING -	-
78	810000100	1	GREASE FITTING.N610	-
79	F433115	1	SHIM KIT -	-
80	841468400	1	NUT*2-12UNF -	-
81	F433137	1	BOOM CYLINDER -	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\WINCH\WINCH T40-D WINCH OIL LINES ( CK2311 - ) 4142-020/10
82	F433116	1	PIN-CYL-KINGPOST -	-
83	841721400	1	LOCK - BANJO	-
84	810082100	1	BOLT*1/2-13UNCX1	-
85	810002400	1	LOCKWASHER*1/2	-
86	F433117	1	PIN-CYL-MAINBOOM -	-
87	F433146	1	JIB CYLINDER -	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\WINCH\WINCH T40-D WINCH OIL LINES ( CK2311 - ) 4142-020/10
88	F433118	2	PIN-JIB CYL. -	-
90	F433119	1	SADDLE -	-
91	F433120	1	PLATE-COVER -	-
92	810082100	4	BOLT*1/2-13UNCX1	-
93	810011600	4	WASHER*1/2	-
95	-------	1	O-RING	-
96	-------	1	O-RING	-
97	-------	6	O-RING	-
99	F433122	1	CLEVIS-LH -	-
100	F433123	1	CLEVIS-RH -	-
101	810984800	12	BOLT*M16X2.00-60 -	-
102	810000500	12	WASHER*5/8	-
103	811950500	1	GRAPPLE HEAD-84`` -	Refer to Page: SKIDDER, LOG\360 SKIDDER, LOG\360 - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 84`` ( CE2001 - 985128) 4321-022/10
201	827265900	2	PIN -	-
202	F280194	2	PIN -	-
203	826945800	4	SPACER -	-
204	811703500	4	SCREW*M16X2.00-30 -	-
205	810520200	2	PLUG	-
206	827169200	2	THRUST WASHER*4.5 -	-
207	827169300	2	THRUST WASHER*5.5 -	-
208	827169400	2	THRUST WASHER*6.0 -	-
209	827169500	2	THRUST WASHER*7.0 -	-
210	827169600	2	THRUST WASHER*8.0 -	-
211	827318600	4	WASHER-SPECIAL 1.75`` -	-
212	827326900	4	SHIM (0.0598``) -	-
213	827327000	4	SHIM (0.0359``) -	-
214	827327100	4	SHIM (0.1196``) -	-
A	F120740	1	SWING BOOM - 84``	-
B	F120330	1	SWING BOOM/GRAPPLE - 100`` - TO S/N 10EB1447	-
-	-------	1	O-RING	-
-	F122175	1	GRAPPLE HEAD-100 IN -	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( 10EC1079 - ) 4321-029/10
-	811950600	1	GRAPPLE-HEAD 100`` -	Refer to Page: SKIDDER, LOG\560 SKIDDER, LOG\560 - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( CE2001 - 985210) 4321-023/10
-	F122178	1	GRAPPLE HEAD-84 IN -	Refer to Page: SKIDDER, LOG\360C SKIDDER, LOG\360C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 84`` ( 10EB1277 - ) 4321-028/10
-	F433121	1	WEAR STRIP KIT -	-
-	F433102	1	PACKING KIT -	-
-	F122819	1	BOOM - 100`` - S/N 10EB1448 & UP	-

GRAPPLE SWING BOOM ASSY ( CE2001 - 10EB1276) 4321-026/10 [4321-026/10]

Нет текстового описания
