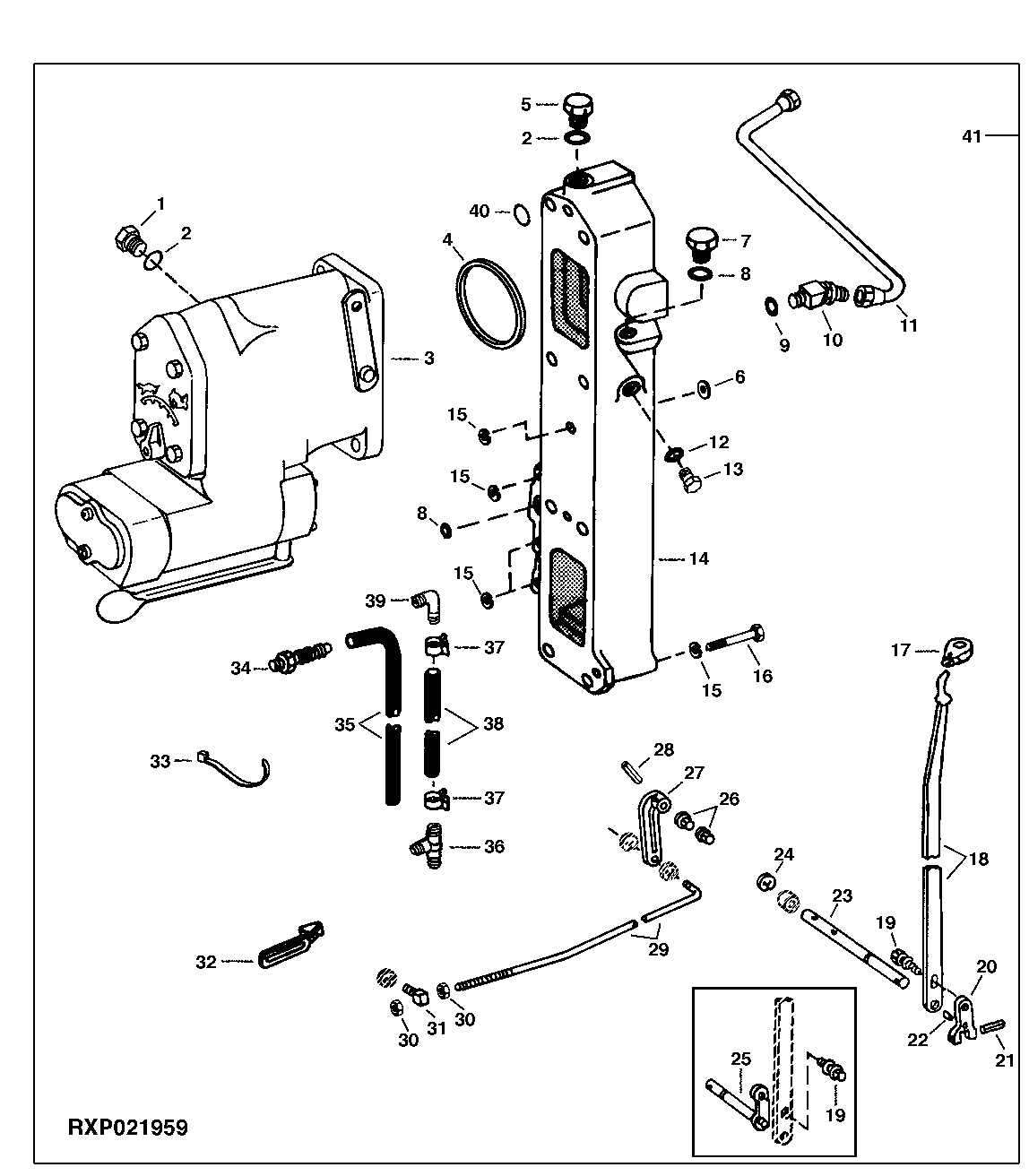

SELECTIVE CONTROL VALVE CONVERSION KIT (DUAL TO TRIPLE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41155	1	Fitting Plug	-
2	R26375	2	O-Ring	-
3	AR102602	1	Control Valve	(TRIPLE)
3	RE238324	1	Selective Control Valve	(SUB FOR RE10461)
4	R40922	2	Back-Up Ring	-
5	R39112	1	Fitting	-
6	R26149	1	PACKING	-
7	R27218	1	Fitting Plug	-
8	R26448	1	O-Ring	-
9	R29936	1	O-Ring	-
10	AR93905	1	Elbow Fitting	-
11	AR100253	1	Oil Line	(3RD SCV)
11	AR95435	1	Oil Line	(2ND SCV)
11	AR93907	1	Oil Line	-
12	R26906	1	O-Ring	-
13	R27474	1	Drain Plug	-
14	R76061	1	Cover	(MARKED R70198)
15	12H293	4	Lock Washer	7/16"
16	19H2731	1	Cap Screw	7/16" X 1-3/8"
17	R52692	1	Grip	-
18	R72214	1	Lever	-
19	AR58652	1	Bolt	-
20	R74331	1	Pivot	-
21	34H331	1	Spring Pin	5/16" X 1-1/2"
22	R42882	1	Dowel Pin	-
23	R74333	1	Shaft	-
24	F2863R	2	Snap Ring	-
25	AR94963	1	Shaft	-
26	R42093	1	Grommet	-
27	R62555	1	Arm	-
28	34H313	1	Spring Pin	1/4" X 1-1/8"
29	R73388	1	Rod	-
29	R72694	1	Rod	-
30	14H882	2	Nut	5/16"
31	R79521	1	Swivel	-
32	R56479	1	Stop	-
33	R44302	1	Tie Band	-
34	R65785	1	Fitting	-
35	-	1	Part 39	1016 MM (40"), (MAKE FROM R80623)
36	H83254	1	Tee Fitting	-
37	R56101	2	Clip	-
38	R74249	1	Hose	300 MM (11 13/16")
39	M84497	1	Elbow Fitting	-
40	F2741R	1	Packing	-
41	AR95597	1	Control	(SUB RE238221) (FI)
..	24H1323	1	Washer	15/32" X 13/16" X 0.090"
..	28H81	1	Washer	0.364" X 0.540" X 3/16"

SELECTIVE CONTROL VALVE CONVERSION KIT (DUAL TO TRIPLE)

Нет текстового описания
