Открытый узел

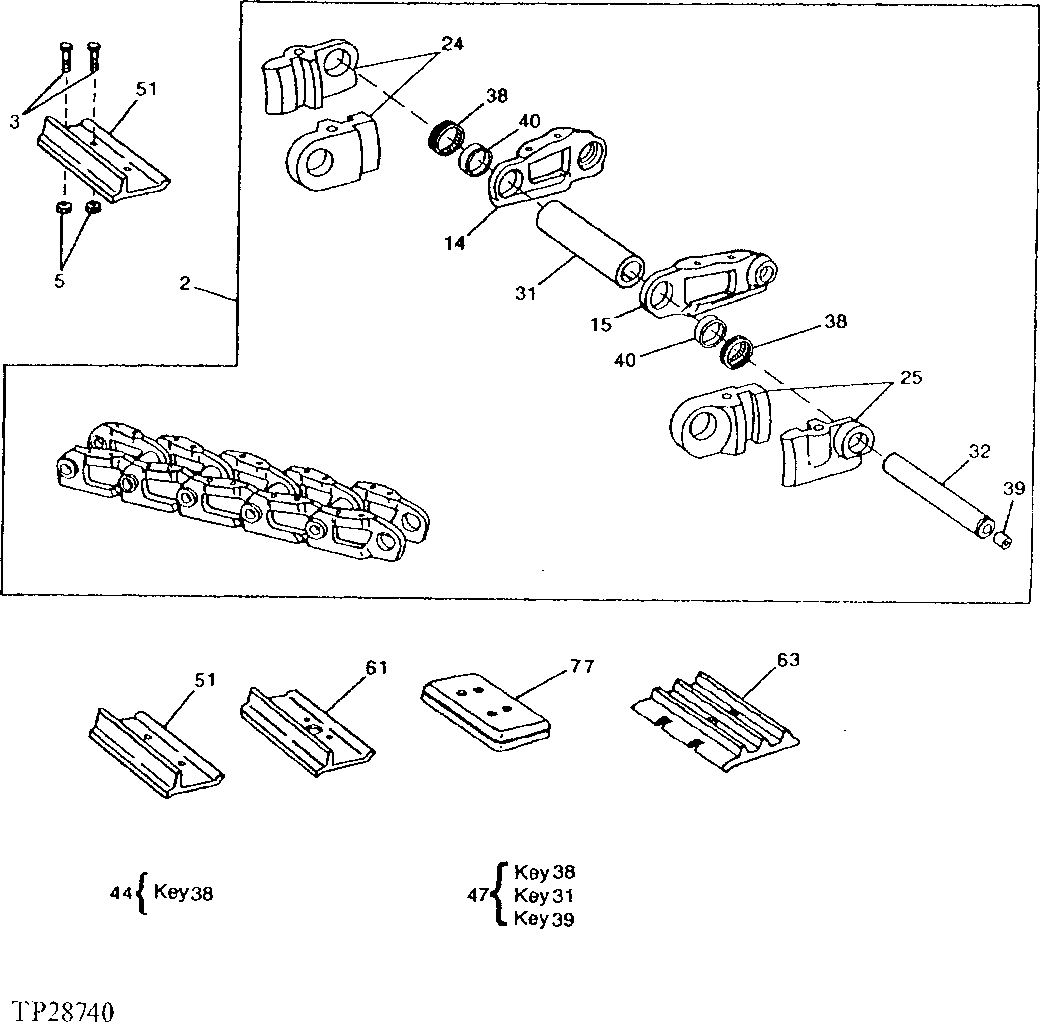

LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/18" CHAIN WITH SHOES)
2	AT148567	2	TRACK CHAIN W/O SHOES	(36L) (USE WITH SPROCKET T129880) (USE IF AVAILABLE) (SUB FOR AT113036 AND AT148561) (SUB AT168607)
2	AT148574	2	TRACK CHAIN W/O SHOES	(USE IF AVAILABLE) (39L)(USE WITH SPROCKET T129880) (SUB FOR AT113037) (SUB AT168612)
3	T74183	1	BOLT	(QUANTITY IS 144 OR 156)
3	T80151	1	BOLT	(QUANTITY IS 144 OR 156) (FOR USE WITH SELF CLEANING SHOE)
5	T74184	1	NUT	(QUANTITY IS 144 OR 156)
14	T112081	1	NON-STRUTTED LINK-LH	(QUANTITY IS 35 OR 38)
15	T112080	1	NON-STRUTTED LINK-RH	QUANTITY IS 35 OR 38)
24	AT113369	1	MASTER TRACK LINK-SPLIT-LH	(USE IF AVAILABLE, THEN ORDER AT168313 AND AT168314) (FOR FIRST TIME REPLACEMENT ALSO ORDER(2) T152271, (2) T152272 AND (1) REGULAR SHOE TO USE AS MASTER)
25	AT113370	1	MASTER TRACK LINK-SPLIT-RH	(USE IF AVAILABLE, THEN ORDER AT168314 AND AT168313) (FOR FIRST TIME REPLACEMENT ALSO ORDER (2) T152271, (2) T152272 AND (1) REGULAR SHOE TO USE AS MASTER)
31	T112245	1	BUSHING	(QUANTITY IS 36 OR 39)
32	T112247	1	Track Pin	(QUANTITY IS 36 OR 39)
38	AT113118	1	Seal	(QUANTITY IS 36 OR 39) (PACKAGE OF 2)
39	T149248	1	Plug	(INSERT IN MIDDLE OF PLUG T151270)
39	T151270	1	Plug	(QUANTITY IS 36 OR 39) (SUB FOR T112246) (ALSO ORDER T149248)
40	T112252	1	Washer	(QUANTITY IS 72 OR 78)
44	AT124014	1	SEAL KIT	CONTAINS 72 SEALS (FOR 39L ALSO ORDER (3) AT113118 - PACKED 2 PER PACKAGE)
47	AT113119	1	PLUG AND SEAL KIT BUSHING	CONTAINS 72 SEALS, 36 BUSHING AND 36 PLUGS (FOR (39L), (FOR 39L ALSO ORDER (3) T112245, (3) T151270, (3) T149248 AND (3) AT113118 PACKED 2 PER PACKAGE)
51	T112404	1	SINGLE BAR SHOE	406MM (16") (QUANTITY IS 36 OR 39) (SUB FOR T75586)
51	T112405	1	SINGLE BAR SHOE	457MM (18") (QUANTITY IS 36 OR 39) (SUB FOR T75507)
51	T112406	1	SINGLE BAR SHOE	610MM (24") (QUANTITY IS 36 OR 39) (SUB FOR T106997)
61	T112400	1	OPEN CENTER 1 BAR SHOE	406MM (16") (QUANTITY IS 36 OR 39) (SUB FOR T75591)
61	T112401	1	OPEN CENTER 1 BAR SHOE	457MM (18") (QUANTITY IS 36 OR 39) (SUB FOR T75592)
61	T112402	1	OPEN CENTER 1 BAR SHOE	610MM (24") (QUANTITY IS 36 OR 39) (SUB FOR T78331)
63	T75588	1	OPEN CENTER 3 BAR SHOE	355MM (14") (QUANTITY IS 36 OR 39)
63	T24699	1	OPEN CENTER 3 BAR SHOE	406MM (16") (QUANTITY IS 36 OR 39) - NLA
74	T106996	1	SELF CLEANING SHOE	610MM (24") (QUANTITY IS 36 OR 39) (SUB FOR T80152)
77	-	1	Part 28	350MM (13") AT125940, NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365 PHONE 800-289-1456 (QUANTITY IS 36 OR 39) (SUB FOR AT22880)

LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B08]

Нет текстового описания
