LOADER PRESSURE AND RETURN CIRCUIT OIL LINES [02D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

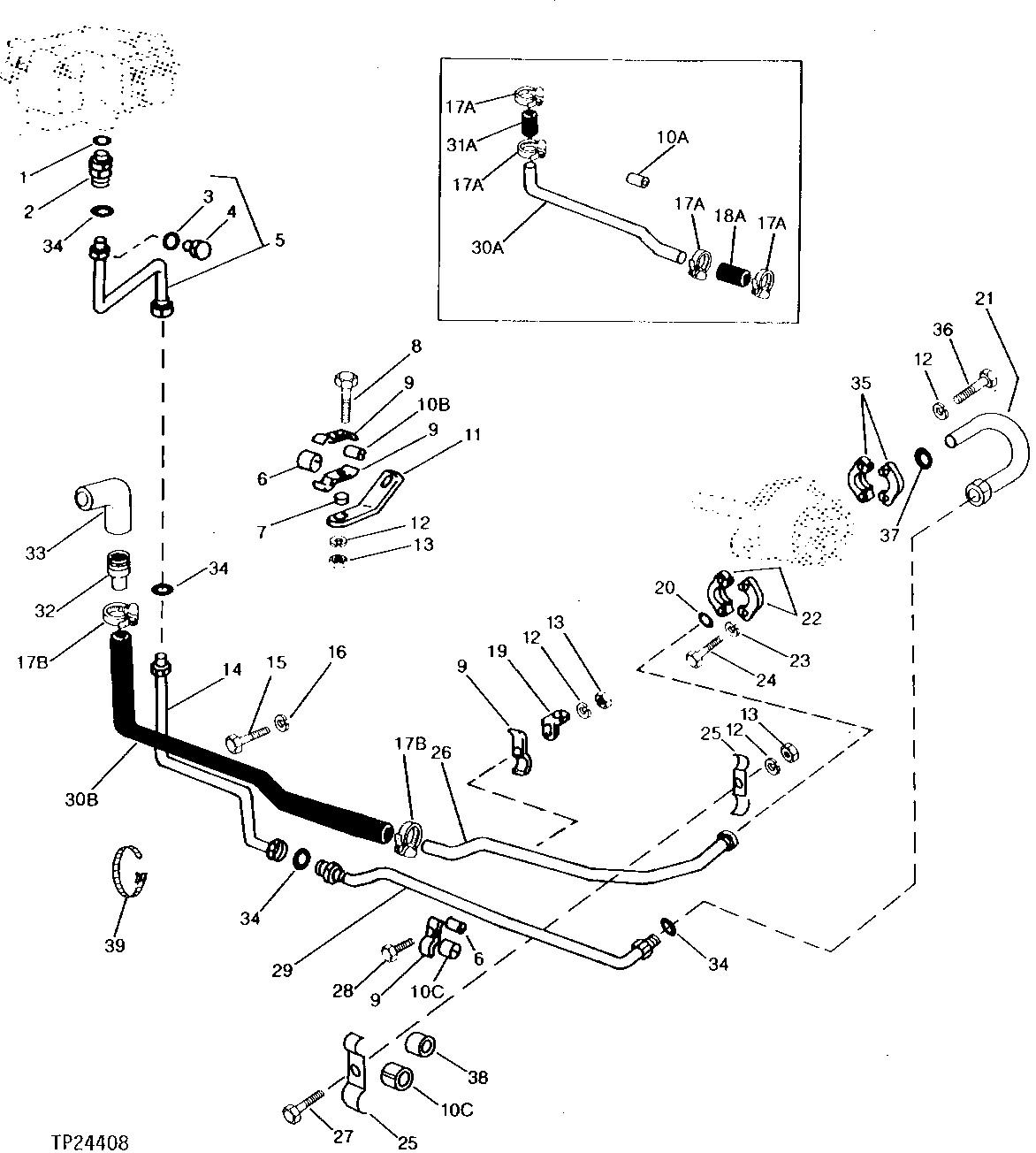

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	1	O-Ring	-
2	38H1164	1	Adapter Fitting	-
3	R26448	1	O-Ring	-
4	R27218	1	Fitting Plug	-
5	AT81603	1	OIL LINE	PRESSURE
6	T37808	2	ISOLATOR	-
7	28H1519	1	Washer	0.493" X 0.675" X 3/8"
8	19H2732	1	Cap Screw	3/8" X 2-3/4"
9	T37806	4	CLAMP	-
11	T37809	1	BRACKET	-
12	12H304	7	Lock Washer	3/8"
13	T11234	5	Lock Nut	-
14	AT81601	1	OIL LINE	PRESSURE
15	19H3472	1	Cap Screw	5/8" X 9-3/4"
16	12H301	1	Lock Washer	1/2"
19	T37805	1	ANGLE	-
20	U10289	1	O-Ring	-
21	AT81599	1	OIL LINE	PRESSURE
22	R29867	2	Flange Fitting	-
23	12H293	4	Lock Washer	7/16"
24	19H3205	4	Cap Screw	7/16" X 1-1/2"
25	U16862	2	CLAMP	-
26	AT84406	1	OIL TUBE	SUCTION, (SUB FOR AT42586)
27	19H3065	1	Cap Screw	3/8" X 2"
28	19H1726	1	Cap Screw	3/8" X 2-1/4"
29	AT81600	1	OIL LINE	-
32	U17211	1	HOSE FITTING	-
33	15H112	1	ELBOW FITTING	90°, 1-1/4"
34	T76938	4	O-Ring	-
35	R29424	2	Flange Fitting	-
36	19H3239	4	Cap Screw	3/8" X 1-1/4"
37	T59014	1	O-Ring	-
38	28H1525	1	BUSHING	0.493" X 0.675" X 1-1/16"
39	T44946	3	Tie Band	(SUCTION HOSE TO PRESSURE LINE)
10A	T37807	3	ISOLATOR	-
10B	28H1953	1	Spacer	0.493" X 0.675" X 1-7/16"
10C	T37807	2	ISOLATOR	-
17A	AR21999	4	Hose Clamp	-
17B	AR21999	2	Hose Clamp	-
18A	U17214	1	HYDRAULIC HOSE - FABRICATE	-
30A	T37804	1	TUBE	-
30B	T112540	1	HOSE	-
31A	T76966	1	HYDRAULIC HOSE - FABRICATE	-
