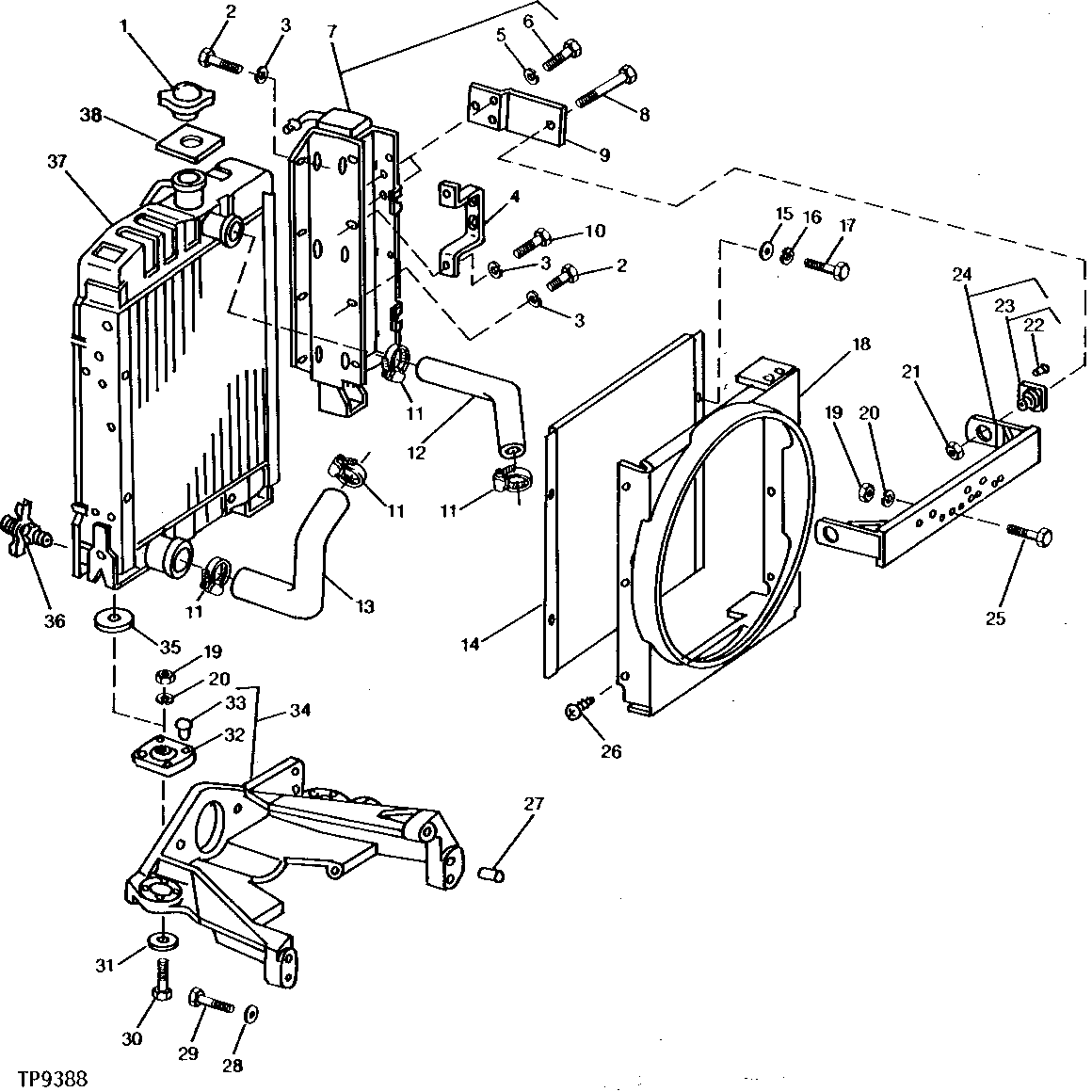

RADIATOR, RADIATOR SUPPORT, FAN SHROUD AND ENGINE OIL COOLER [01G17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT165587	1	FILLER CAP	(SUB FOR AR27868)
2	19H2020	6	Cap Screw	5/16" X 1/2"
3	12H303	8	Lock Washer	5/16"
4	AT30807	1	BRACKET	-
5	12H303	2	Lock Washer	5/16"
5	12H303	3	Lock Washer	5/16"
6	19H2127	2	Cap Screw	5/16" X 7/8"
6	19H2127	3	Cap Screw	5/16" X 7/8"
7	AT37547	1	OIL COOLER	-
8	19H1791	2	Cap Screw	1/4" X 1-1/4"
9	T63684	2	SUPPORT	-
10	19H1813	2	CAP SCREW	5/16" X 5/8"
11	AR21999	4	Hose Clamp	(SUB FOR AR21840)
12	T21124	1	HOSE	-
13	T21125	1	HOSE	-
14	T50378	1	SHIELD	SAND
15	24H1287	4	Washer	9/32" X 5/8" X 0.065"
16	12H302	4	Lock Washer	1/4"
17	19H1227	4	Cap Screw	1/4" X 1/2"
18	AT34002	1	SHROUD	-
19	14H812	5	NUT	3/8"
20	12H304	5	Lock Washer	3/8"
21	M453T	2	Lock Nut	-
22	16H173	8	RIVET	5/32" X 3/8"
23	AM640T	2	CUSHION	-
24	AT49778	1	BRACKET	-
25	19H2676	3	Cap Screw	3/8" X 1"
26	37H116	6	Screw	-
27	R54380	2	Dowel Pin	-
28	12H294	3	Lock Washer	5/8"
29	19H3107	3	Cap Screw	5/8" X 2-3/4"
30	19H3065	2	Cap Screw	3/8" X 2"
31	24H1314	2	Washer	13/32" X 1-3/4" X 7/64"
32	AT21389	2	ISOLATOR	-
33	T31754	8	RIVET	-
34	AT30803	1	SUPPORT	(MARKED T31753)
35	24H1843	2	WASHER	13/32" X 3" X 0.095"
36	AT13740	1	Drain Valve	DRAIN
37	AT116777	1	RADIATOR	(SUB FOR AT39009)
38	T17284	1	BARRIER	-

RADIATOR, RADIATOR SUPPORT, FAN SHROUD AND ENGINE OIL COOLER [01G17]
