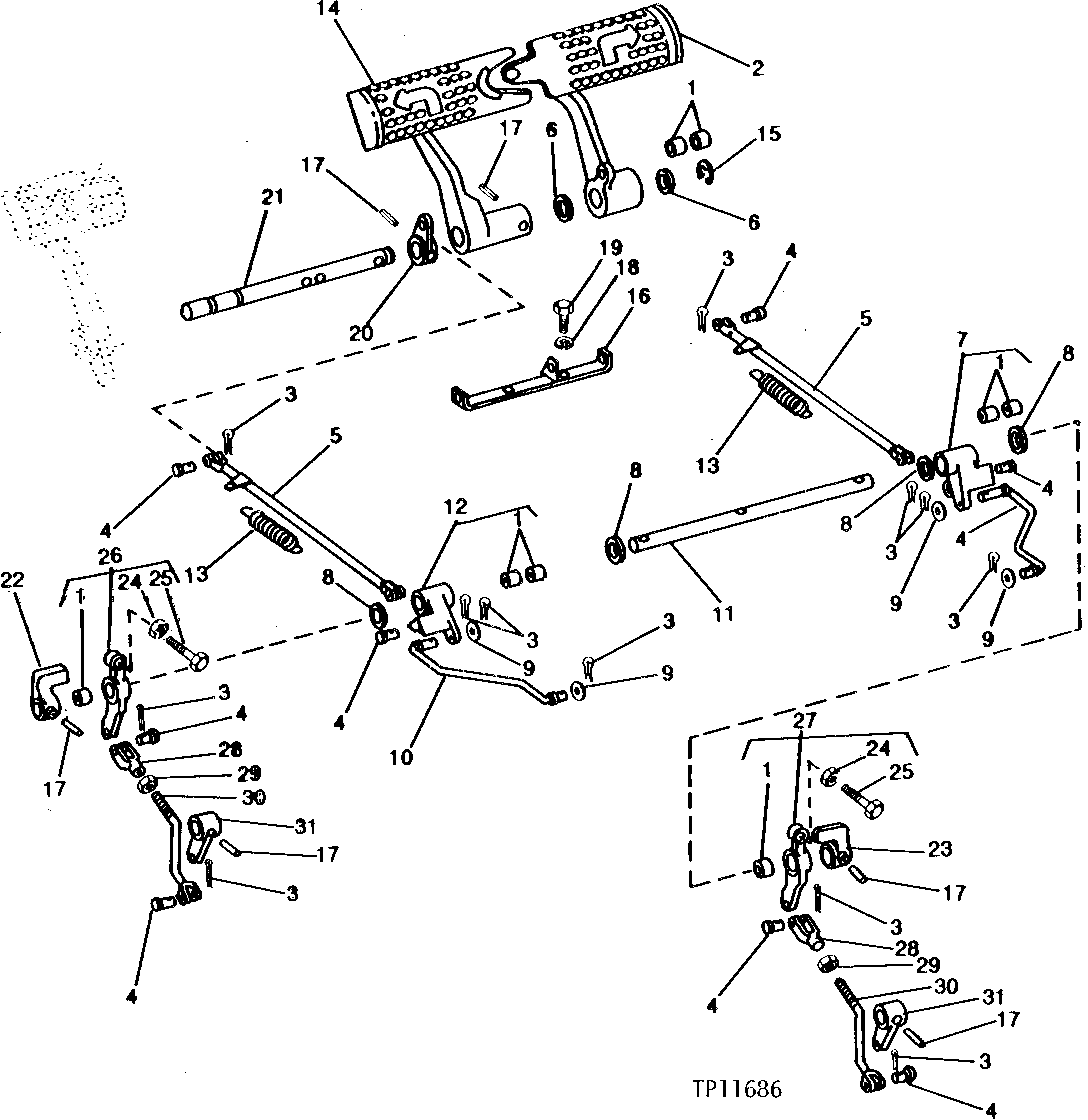

PEDAL STEERING BRAKE LINKAGE [01C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T42687	8	BUSHING	-
2	T77743	1	PEDAL	RIGHT STEERING
3	11M7081	12	Cotter Pin	2.500 X 20 MM
4	-	8	Part 4	( C1067R - USE IF AVAILABLE)
4	R65563	8	Pin Fastener	(SUB FOR C1067R)
5	AT39208	2	ROD	-
6	24H1423	1	Washer	29/32" X 1-1/2" X 0.036"
7	AT47802	1	PIVOT	(SUB (2) T42687 AND T49233)
8	24H1424	1	Washer	29/32" X 1-1/2" X 0.060"
9	24M7096	4	Washer	0.413" X 0.709" X 0.063"
10	T78254	2	ROD	-
11	T80494	1	SHAFT	(SUB FOR T40590)
11	R26192	2	Snap Ring	(RETAINING) (SUPPORT SHAFT)
11	24H1423	1	Washer	29/32" X 1-1/2" X 0.036", (BETWEEN FLOATING LEVERS AND RETAINING RING) (USE AS REQUIRED TO MINIMIZE END PLAY OF SUPPORT SHAFT ASSEMBLY)
12	AT47803	1	PIVOT	(SUB (2) T42687 AND T49234)
13	T14243	2	SPRING	-
14	T77742	1	PEDAL	LEFT STEERING
15	P46402	1	Snap Ring	-
16	AT71579	1	BRACKET	-
17	25H125	6	GROOVE PIN	5/16" X 1-3/4"
18	12H304	2	Lock Washer	3/8"
19	19H2676	2	Cap Screw	3/8" X 1"
20	T41507	1	LEVER	-
21	T74049	1	PIN FASTENER	-
22	T41510	1	PIVOT	L.H.
23	T41509	1	PIVOT	R.H.
24	14H732	2	Nut	3/8"
25	19H2467	2	CAP SCREW	3/8" X 2-1/2"
26	AT47804	1	LEVER	L.H.
27	AT47805	1	LEVER	R.H.
28	M80373	2	Yoke	-
29	14H774	2	Nut	3/8"
30	AT50281	2	ROD	-
31	T46136	2	HANDBRAKE LEVER	-

PEDAL STEERING BRAKE LINKAGE [01C03]
