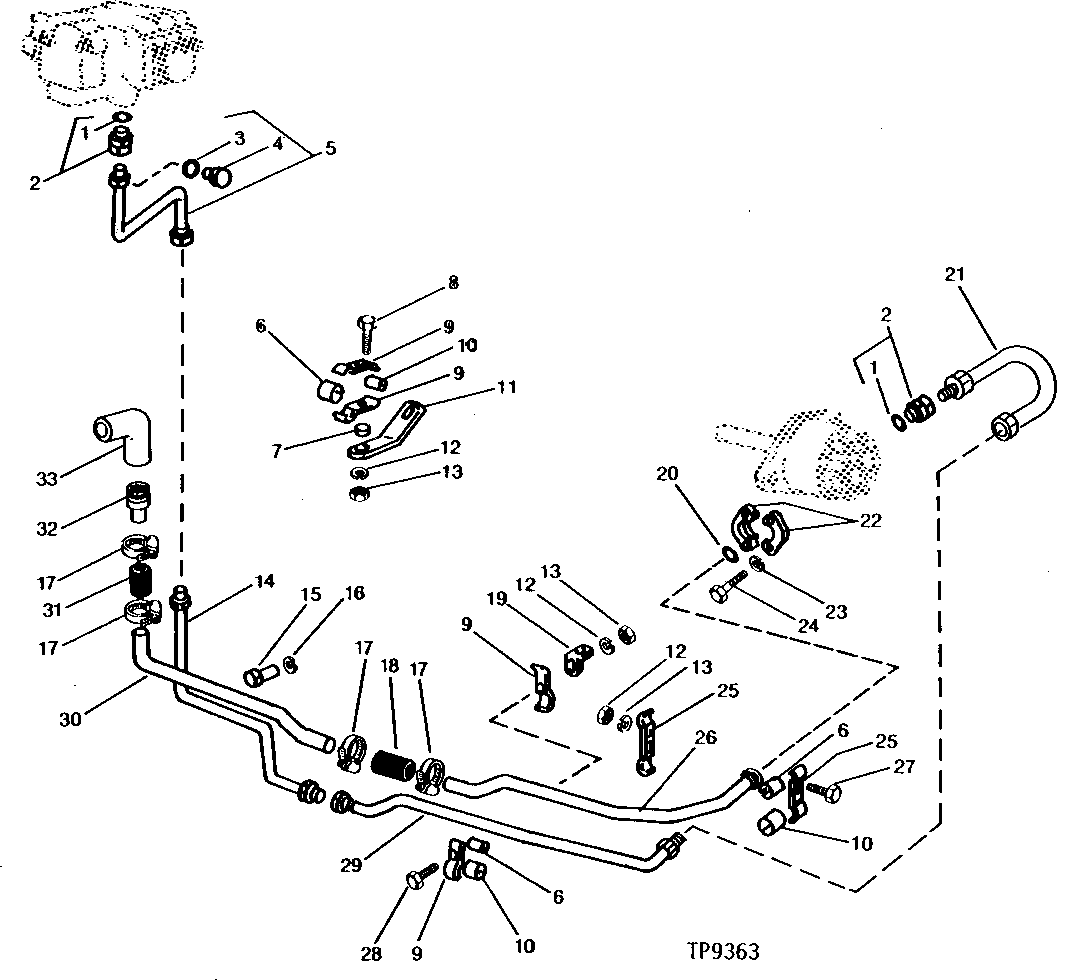

LOADER PRESSURE AND RETURN CIRCUIT OIL LINES (SERIAL NO. -709369) [02D23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	AU13375	2	FITTING	-
3	R26287	1	O-Ring	-
4	R27216	1	DRAIN PLUG	-
5	AT71518	1	LINE	PRESSURE
6	T37808	3	ISOLATOR	-
7	28H1519	1	Washer	0.493" X 0.675" X 3/8"
8	19H2732	1	Cap Screw	3/8" X 2-3/4"
9	T37806	4	CLAMP	-
10	T37807	3	ISOLATOR	-
11	T37809	1	BRACKET	-
12	12H304	4	Lock Washer	3/8"
13	T11234	4	Lock Nut	-
14	AT36541	1	LINE	PRESSURE
15	19H3472	1	Cap Screw	5/8" X 9-3/4"
16	12H301	1	Lock Washer	1/2"
17	AR21999	4	Hose Clamp	(SUB FOR AR21840)
18	U17214	1	HYDRAULIC HOSE - FABRICATE	SUCTION
19	T37805	1	ANGLE	-
20	U10289	1	O-Ring	-
21	AT71519	1	TUBE	PRESSURE (SUB AT78710)
22	R29867	2	Flange Fitting	-
23	12H293	4	Lock Washer	7/16"
24	19H3205	4	Cap Screw	7/16" X 1-1/2"
25	T37810	2	CLAMP	-
26	AT84406	1	OIL TUBE	SUCTION, (SUB FOR AT42586)
27	19H3217	2	Cap Screw	3/8" X 1-3/4"
28	19H1726	1	Cap Screw	3/8" X 2-1/4"
29	AT71520	1	TUBE	PRESSURE (SUB AT78710)
30	T37804	1	TUBE	SUCTION
31	T76966	1	HYDRAULIC HOSE - FABRICATE	SUCTION
32	U17211	1	HOSE FITTING	-
33	15H112	1	ELBOW FITTING	90°, 1-1/4"
