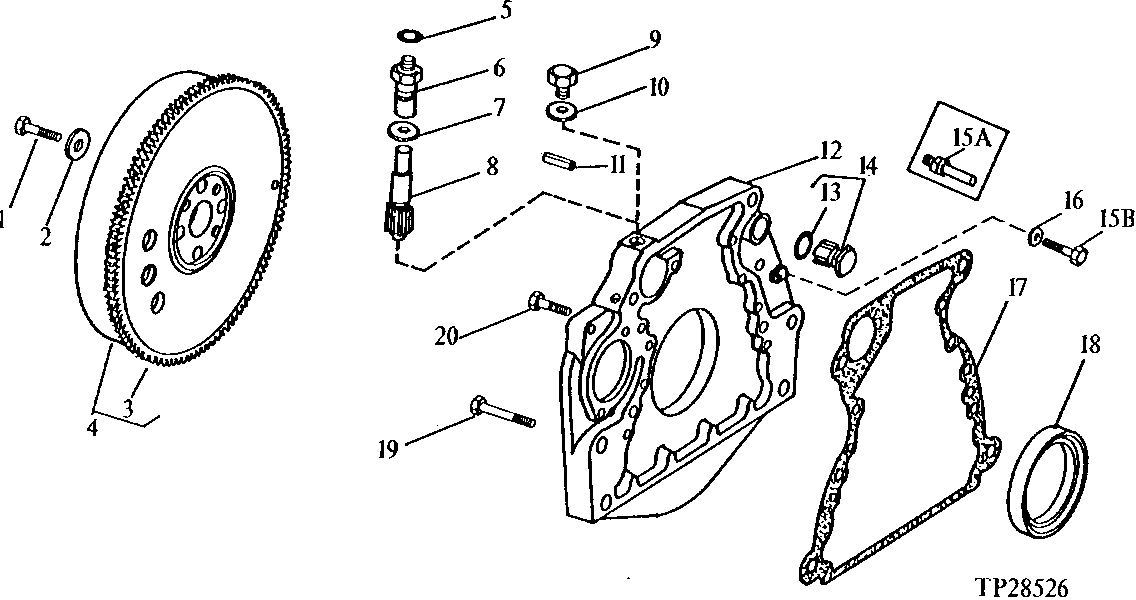

FLYWHEEL, FLYWHEEL HOUSING AND TACHOMETER DRIVE [01G06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2993	4	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
2	T23891	4	Washer	-
3	T20088	1	GEAR	(142 TEETH)
4	RE51448	1	FLYWHEEL	(MARKED R47610) (SUB FOR AR50389)
5	B3285R	1	Washer	(WITH TACHOMETER)
6	T22537	1	Fitting	(WITH TACHOMETER)
7	T13213	1	WASHER	(WITH TACHOMETER) (SUB FOR H1058R, THIS APPLICATION)
8	T22536	1	Gear	(WITH TACHOMETER)
9	M1746T	1	Drain Plug	(WITHOUT TACHOMETER) (SUB FOR AU13052, THIS APPLICATION)
10	T13213	1	WASHER	(WITHOUT TACHOMETER) (SUB FOR H1058R, THIS APPLICATION)
11	R48685	2	Dowel Pin	(SUB FOR A120R)
12	R77017	1	Housing	-
13	R27149	1	O-Ring	-
14	AR61533	1	Plug	-
16	T20168	1	Washer	-
17	R70483	1	GASKET	-
18	RE24959	1	SEAL	(USE IF AVAILABLE) (SUB FOR RE17831)
18	RE44574	1	Seal	(SUB FOR RE24959)
19	19H2937	2	Screw	5/8" X 1-3/4"
20	19H3385	8	Cap Screw	1/2" X 1-1/8"
15A	T20090	1	SCREW	(SUB 19H2351)
15B	19H2351	1	Cap Screw	1/2" X 1/2"

FLYWHEEL, FLYWHEEL HOUSING AND TACHOMETER DRIVE [01G06]
