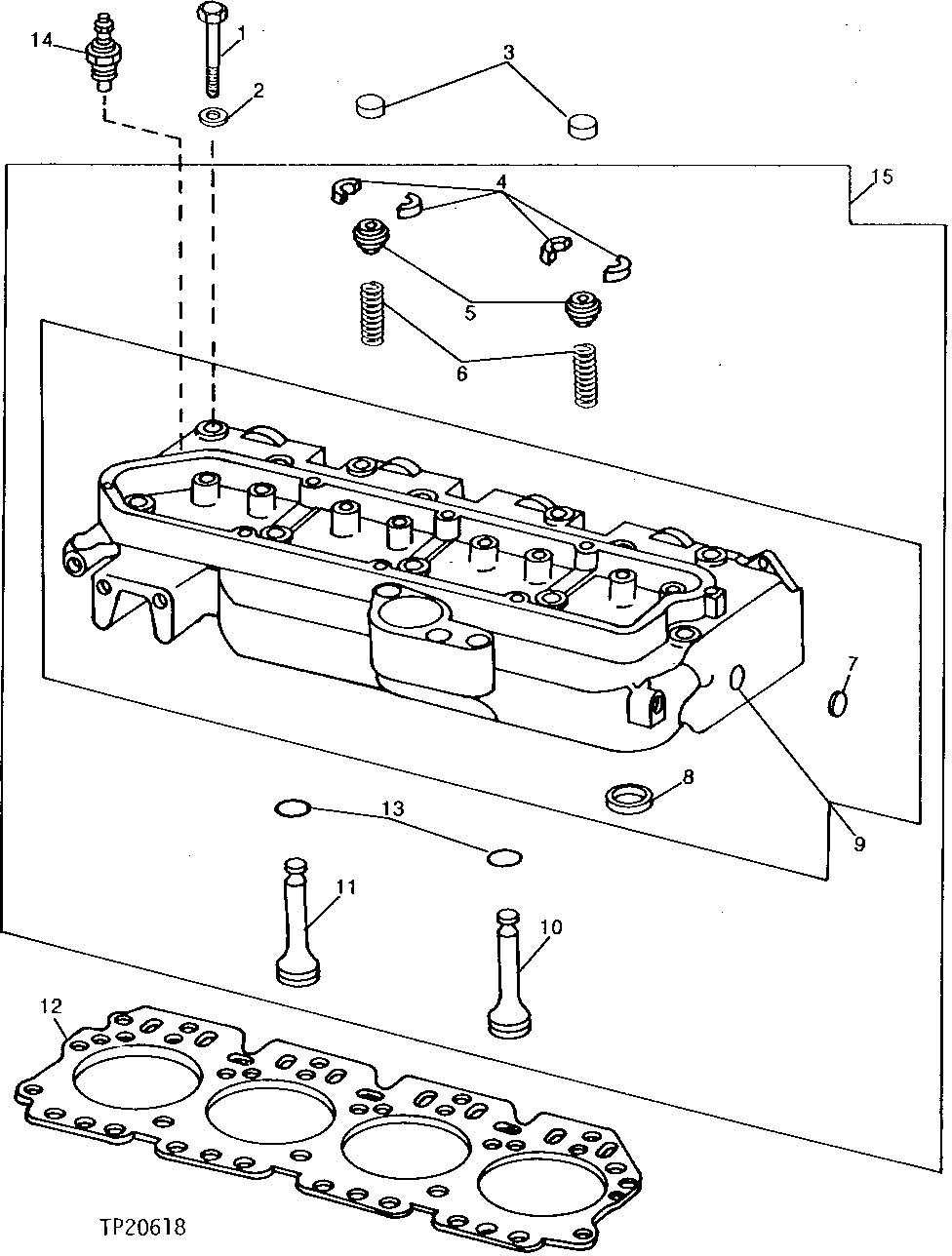

CYLINDER HEAD, HEAD GASKET AND VALVES [01E10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R53223	18	CAP SCREW	1/2" X 4-1/4"
2	T20168	18	Washer	-
3	T20129	8	Cap	-
4	T20077	16	Retainer	-
5	RE11410	8	Rotator	-
6	R26125	8	Spring	-
7	A3910R	1	PLUG	-
7	CD16284	1	Plug	-
8	R51734	4	VALVE SEAT INSERT	EXHAUST
8	R73064	4	VALVE SEAT INSERT	INTAKE
9	AR100074	1	CYLINDER HEAD	(MARKED R57078) (SUB RE56545)
10	R79625	4	EXHAUST VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R57333)
10	-	4	Part 15	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57337)
10	R79626	4	EXHAUST VALVE	0.38 MM (.015") OVERSIZE, (SUB FOR R57335)
10	R79624	4	EXHAUST VALVE	STANDARD, (SUB FOR R52252)
11	R83071	4	INTAKE VALVE	STANDARD, (SUB FOR R72611)
11	R89223	4	INTAKE VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R76538 AND R88174) (ALSO ORDER R87627)
11	R89224	4	INTAKE VALVE	0.36 MM (.015") OVERSIZE, (SUB FOR R76540 AND R88175) (ALSO ORDER R87627)
11	-	4	Part 19	( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R76542 AND R88176) (ALSO ORDER R87627)
12	R91878	1	GASKET	(SUB FOR R59448 AND R80242)
13	R87627	1	O-RING	(SUB FOR R27976, THIS APPLICATION)
14	AT37368	1	SENDER	ENGINE WATER TEMPERATURE (USE WITH STEWART-WARNER)
14	AT124052	1	SENDER	ENGINE WATER TEMPERATURE (USE WITH VDO)
15	AR100073	1	CYLINDER HEAD	(MARKED R57078) (SUB RE56545)

CYLINDER HEAD, HEAD GASKET AND VALVES [01E10]
