INSTRUMENTS, INTELLITRAK®

Нет текстового описания

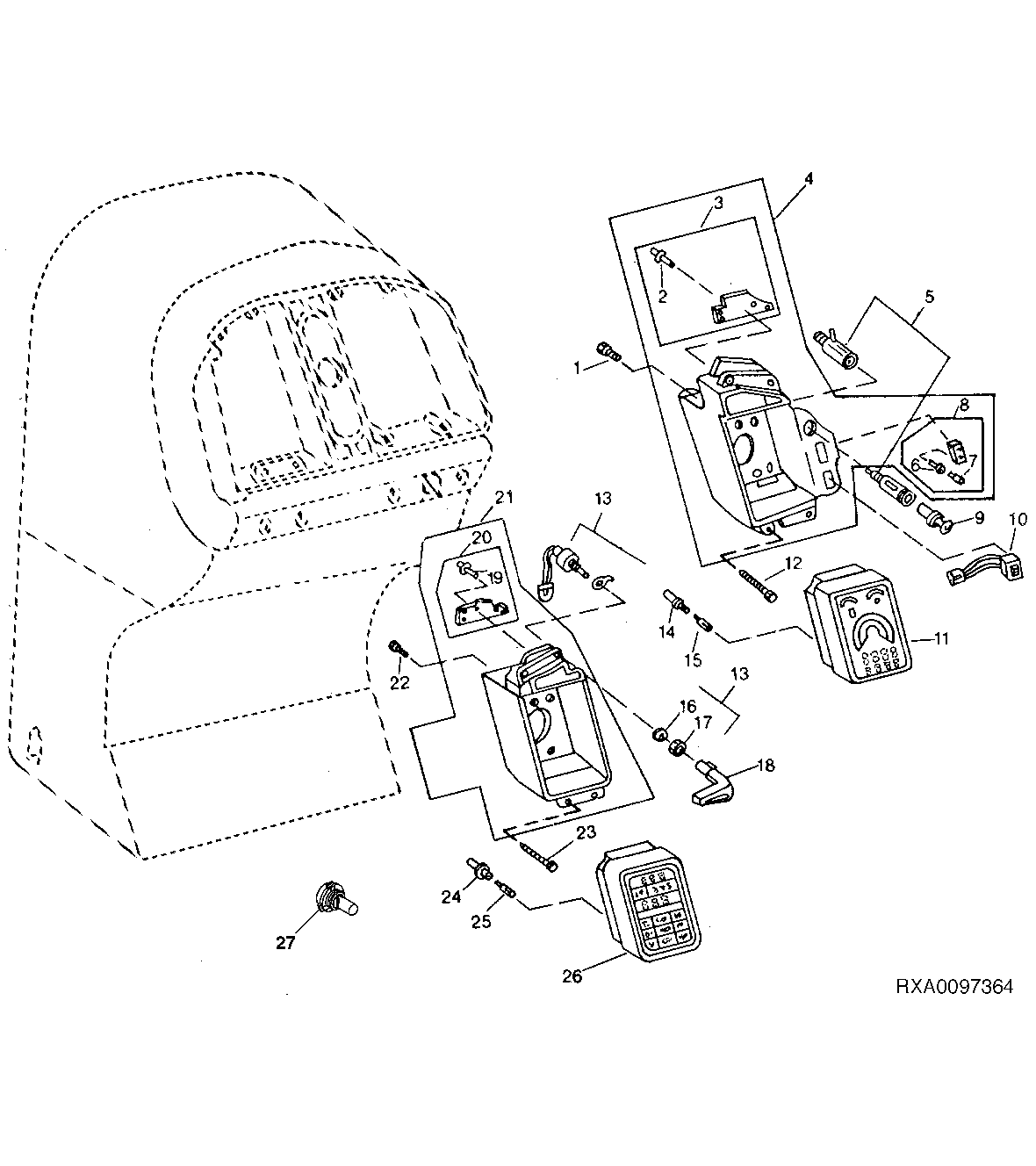

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H147	2	Screw	-
2	AL33162	8	Bulb	-
3	RE33135	1	Circuit Board	RH
4	RE33386	1	Housing	(MECHANICAL FRONT WHEEL DRIVE) RH
4	RE33027	1	Housing	RH
4	RE33387	1	Housing	(MECHANICAL FRONT WHEEL DRIVE) (EUROPEAN VERSION) RH
4	RE33029	1	Housing	(EUROPEAN VERSION) RH
5	AR56766	1	Housing	-
6	R136481	2	Socket	SUB FOR R75048; SUB RE285212
7	RE52348	2	Bulb	GE18
8	RE33381	1	Circuit Board	(MECHANICAL FRONT WHEEL DRIVE) RH
9	AR60937	1	Electrical Lighter	-
10	RE33563	1	Toggle/Rocker Switch	(MECHANICAL FRONT WHEEL DRIVE) (( -XXXXXX) 4755-003103; 4955-003636)
10	RE38699	1	Toggle/Rocker Switch	(MECHANICAL FRONT WHEEL DRIVE) ((XXXXXX- ) 4755-003104; 4955-003637)
11	RE242467	1	Display Module	(REMANUFACTURED) (INTELLITRAK) (SUB FOR RE24513, RE42545, RE66844, RE66843 OR RE239420 ALSO ORDER RE38310(4WD) OR RE51840(2WD), RE151433, AND RE52257)
11	RE47901	1	Tachometer	(CANADA) (SUB RE242467)
12	R78803	4	Cap Screw	-
13	RE33575	1	Switch	(( -XXXXXX) 4555-003846; 4755-003849; 4955-004788) SUB RE53109
13	RE53109	1	Flasher	((XXXXXX- ) 4555-003847; 4755-003850; 4955-004789) SUB FOR RE33575 OR RE44742
14	R136481	2	Socket	SUB FOR R75048; SUB RE285212
15	R97738	2	Bulb	USE WITH R75048; (FWG-203)
15	RE52348	2	Bulb	USE WITH R136481; (GE18)
16	12H233	1	Lock Washer	1/8"
17	R44025	1	Nut	-
18	R93838	1	Handle	-
19	EP2722MF	7	Bulb	-
20	RE33136	1	Circuit Board	-
21	RE33028	1	Housing	LH
21	RE33030	1	Housing	(EUROPEAN VERSION) LH
22	37H147	2	Screw	-
23	R78803	4	Cap Screw	-
24	R136481	2	Socket	SUB FOR R75048; SUB RE285212
25	RE52348	2	Bulb	USE WITH R136481; (GE18)
25	R97738	2	Bulb	USE WITH R75048; (FWG-230)
26	RE66839	1	Performance Monitor Reman	(REMANUFACTURED) SUB FOR RE66841
26	RE253576	1	Performance Monitor	(CANADA) (SUB FOR RE47902 OR RE71059)
26	RE47349	1	Performance Monitor	(EUROPEAN VERSION) INCLUDES (4) R87768 AND (8) 37M7044
26	RE66969	1	Performance Monitor	(EUROPEAN VERSION) (REMANUFACTURED) (( -XXXXXX) 4755-003103; 4955-003636) SUB RE66840
26	RE42262	1	Performance Monitor	(EUROPEAN VERSION) ((XXXXXX- ) 4755-003104; 4955-003637) SUB FOR RE42262
26	R94459	1	Insert	(W/O MONITOR)
27	RE285212	2	Socket	-
..	R44302	1	Tie Band	Not Illustrated
..	R87768	4	Screw	Not Illustrated
..	37M7044	8	Screw	Not Illustrated, Order Higher Assembly
