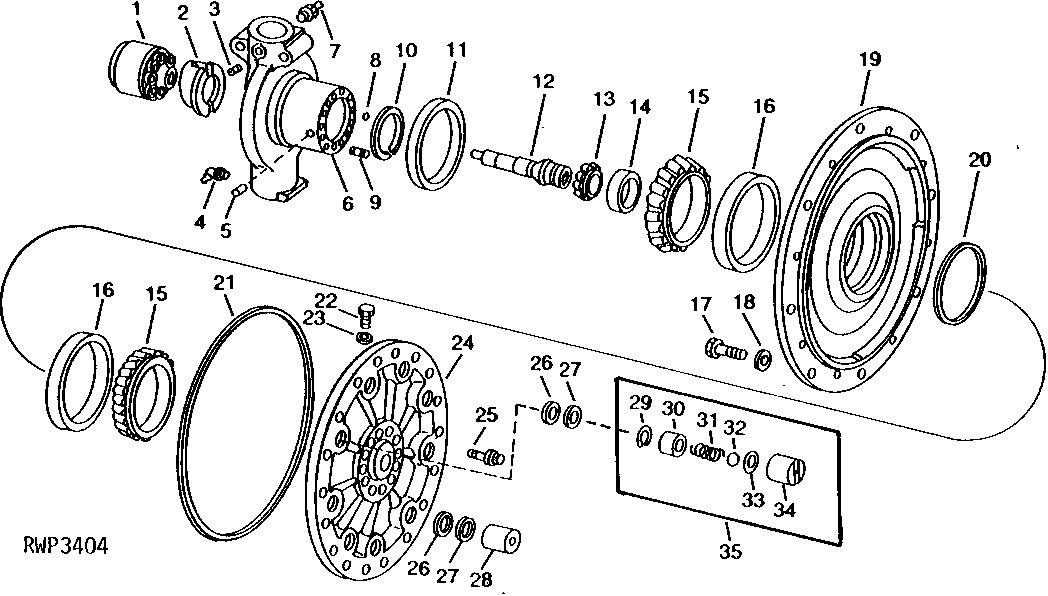

WHEEL HUB, MOTOR, AND HOUSING (POWER FRONT WHEEL DRIVE) [02I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR73212	1	CYLINDER BLOCK	(SUB FOR AR45034)
2	R42817	1	SWASH PLATE	-
3	15H558	1	Pipe Plug	1/8"
4	JD7781	1	Lubrication Fitting	-
5	R42881	1	Dowel Pin	-
6	AR86538	1	HOUSING	(MARKED R42332 OR R66649) (ALSO ORDER R66650) (SUB FOR AR45414)
7	JD7759	1	Lubrication Fitting	-
8	R27490	1	O-Ring	(SUB T17951)
9	R36666	2	DOWEL PIN	-
10	R45569	1	Snap Ring	-
11	AR77224	1	SEAL	(SUB FOR AR47137)
12	R42735	1	SHAFT	-
13	JD9029	1	Bearing Cone	-
14	JD7403	1	Bearing Cup	-
15	JD9028	2	BEARING CONE	-
16	JD8292	2	BEARING CUP	-
17	19H1800	8	Cap Screw	3/8" X 1-1/2"
18	R42729	8	Washer	-
19	R41958	1	HUB	-
20	R48811	1	Shim	0.13MM (.005")
20	R42766	1	Shim	0.25MM (.010")
20	R42765	1	Shim	0.08MM (.003")
21	R42877	1	PACKING	-
22	R27216	1	DRAIN PLUG	(SUB FOR R27216)
23	R26287	1	O-Ring	-
24	AR44376	1	HOUSING	-
25	R42969	12	SCREW	-
26	R29354	9	O-Ring	(SUB FOR R42763)
27	R35473	9	Back-Up Ring	-
28	R42927	8	PISTON	-
29	R33282	1	Snap Ring	-
30	R54172	1	PLUNGER	(SUB AR78303)
31	R59860	1	SPRING	-
32	R26552	1	Ball	-
33	P48347	1	O-Ring	(SUB FOR R34404, THIS APPLICATION)
34	R54171	1	PISTON	(SUB AR78303)
35	AR78303	1	PISTON	-

WHEEL HUB, MOTOR, AND HOUSING (POWER FRONT WHEEL DRIVE) [02I17]
