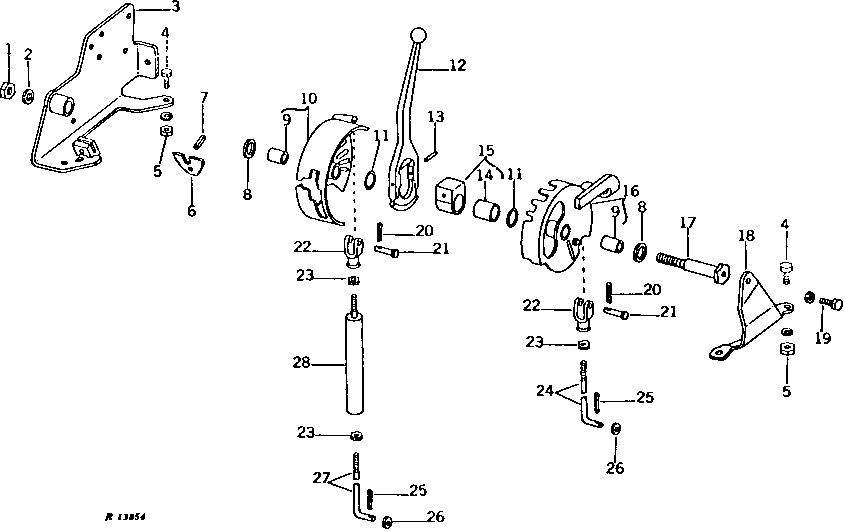

TRANSMISSION SHIFTER CONTROL LEVER, QUADRANT, AND LINKAGE (POWER FRONT WHEEL DRIVE) (SYNCRO-RANGE) [02G04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1039	1	Nut	5/8"
2	F2783R	1	WASHER	-
3	AR46042	1	SUPPORT	-
4	19H2284	3	Cap Screw	3/8" X 7/8"
4	19H246	3	CAP SCREW	3/8" X 1-3/4"
5	14H1076	4	Nut	3/8"
5	12H304	4	Lock Washer	3/8"
6	R52882	1	LATCH	(SUB FOR R42128)
7	34H348	1	Spring Pin	3/8" X 1"
8	R42127	2	Washer	-
9	R26182	1	Bushing	-
10	AR45240	1	QUADRANT	SPEED CHANGE
11	R26187	2	WASHER	-
12	AR59446	1	LEVER	(SUB FOR R31188)
13	34H314	2	Spring Pin	1/4" X 1-1/4"
14	R26186	1	Bushing	-
15	AR26360	1	PIVOT	(MARKED R26185) (SUB (2) R26187 AND R53247)
16	AR45342	1	QUADRANT	SPEED RANGE
17	R42126	1	SHAFT	-
18	R42129	1	SUPPORT	-
19	19H2284	1	Cap Screw	3/8" X 7/8"
19	12H304	1	Lock Washer	3/8"
20	11M7081	2	Cotter Pin	0.098" X 0.787"
21	R65563	2	Pin Fastener	(SUB FOR C1067R)
22	C284R	2	Yoke	-
23	14H732	3	Nut	3/8"
24	R43462	1	BOLT	-
25	11M7059	2	Cotter Pin	3.200 X 20 MM
26	24H1302	2	Washer	13/32" X 11/16" X 0.035"
27	R43462	1	BOLT	(SUB FOR R43886)
28	AR49457	1	SPRING ASSEMBLY	(SUB FOR AR31649)

TRANSMISSION SHIFTER CONTROL LEVER, QUADRANT, AND LINKAGE (POWER FRONT WHEEL DRIVE) (SYNCRO-RANGE) [02G04]
