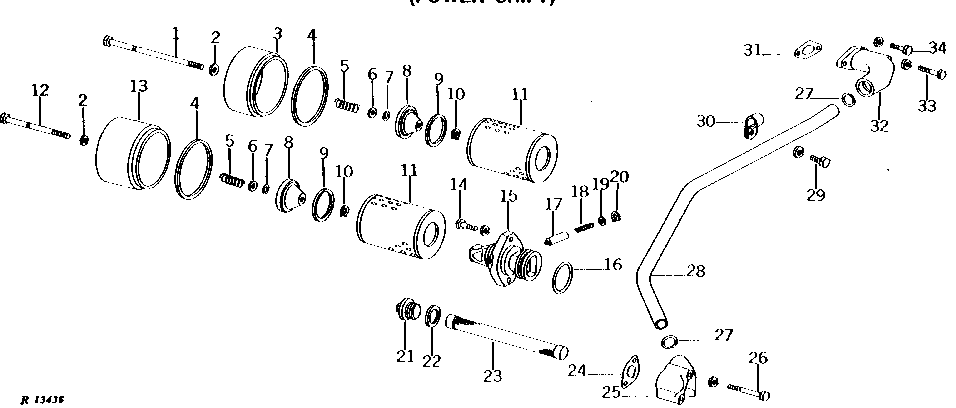

TRANSMISSION OIL FILTER AND OIL PUMP INTAKE (POWER SHIFT) [02H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54750	1	SCREW	(SUB FOR R39795)
2	R394R	2	O-Ring	-
3	R39794	1	COVER	-
4	R34733	2	WASHER	-
5	H819R	2	SPRING	-
6	24H1227	2	Washer	17/32" X 13/16" X 0.060"
7	R394R	2	O-Ring	-
8	R65892	2	RETAINER	-
9	R28594	2	WASHER	-
10	R32507	2	Snap Ring	-
11	AR75603	2	FILTER ELEMENT	(SUB FOR AR28271 OR AR75601) (PKG. OF 2)
12	R54751	1	SCREW	(SUB FOR R39797)
13	R39796	1	COVER	-
14	19H1800	2	Cap Screw	3/8" X 1-1/2"
14	12H304	2	Lock Washer	3/8"
15	R54962	1	Housing	-
16	U12198	1	O-Ring	-
17	R33162	1	VALVE	BYPASS, (SUB R33259 AND R57559)
18	R26686	1	SPRING	-
19	R48013	1	Washer	(SUB FOR R33294)
20	R33282	1	Snap Ring	-
21	R40147	1	FITTING	(SUB FOR A4806R)
22	A4808R	1	WASHER	(ALUMINUM)
23	R53169	1	Screen	(NYLON)
23	AR26375	1	SCREEN	(STEEL)
24	R28110	1	GASKET	-
25	R84270	1	ADAPTER FITTING	(SUB FOR R33911)
26	19H1944	2	Cap Screw	3/8" X 2-3/4"
26	12H304	2	Lock Washer	3/8"
27	A3606R	2	O-RING	-
28	R43249	1	TUBE	-
29	19H2284	1	Cap Screw	3/8" X 7/8"
29	12H304	1	Lock Washer	3/8"
30	R33364	1	CLAMP	-
31	R33363	1	GASKET	-
32	AR41885	1	ADAPTER FITTING	-
33	19H1765	1	Cap Screw	3/8" X 1-3/4"
33	12H304	1	Lock Washer	3/8"
34	19H1732	1	Cap Screw	3/8" X 1-1/4"
34	12H304	1	Lock Washer	3/8"

TRANSMISSION OIL FILTER AND OIL PUMP INTAKE (POWER SHIFT) [02H17]

Нет текстового описания
