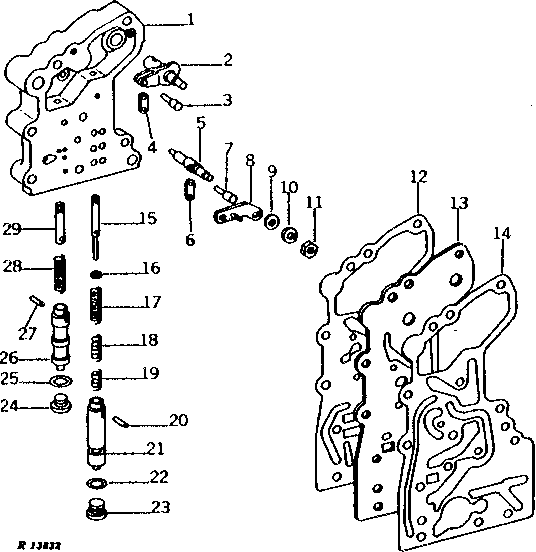

TRANSMISSION CLUTCH VALVE HOUSING, VALVES, AND GASKETS (POWER SHIFT) [02G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR88040	1	HOUSING	(MARKED R41151, R41152, R41153 OR R44164) (SUB FOR AR40794 OR AR45381) (ALSO ORDER 15H558)
2	AR32128	1	SHAFT	(SUB RE19993)
3	R33145	2	PIN	-
4	R28401	1	LINK	-
5	AR61609	1	SHAFT	(A) (SUB FOR AR48690 OR AR27720) (SUB AR98146 AND (2) T42441)
6	R28401	1	LINK	(A)
7	R33145	2	PIN	(A)
8	AR48689	1	ARM	(A) (SUB FOR AR40929)
9	24H1287	1	Washer	(A) 9/32" X 5/8" X 0.065"
10	12H302	1	Lock Washer	(A) 1/4"
11	14H786	1	Nut	(A) 1/4"
12	R98926	1	GASKET	(SUB FOR R33178 AND R46816 OR R51573)
13	R33164	1	PLATE	-
14	T67029	1	GASKET	(SUB FOR R33177 OR R46815)
15	R33137	1	SHAFT	-
16	R33521	1	Shim	0.76MM (.030")
17	R33173	1	Spring	-
18	R33174	1	SPRING	-
19	R33175	1	SPRING	-
20	34H245	1	Spring Pin	1/8" X 5/8"
21	R33136	1	VALVE	-
22	R26375	1	O-Ring	-
23	R33138	1	Fitting	-
25	R26375	1	O-Ring	-
26	R47509	1	VALVE	(SUB FOR R41502)
27	34H260	1	SPRING PIN	5/32" X 5/8"
28	R31725	1	SPRING	-
29	R41503	1	SHAFT	-

TRANSMISSION CLUTCH VALVE HOUSING, VALVES, AND GASKETS (POWER SHIFT) [02G22]
