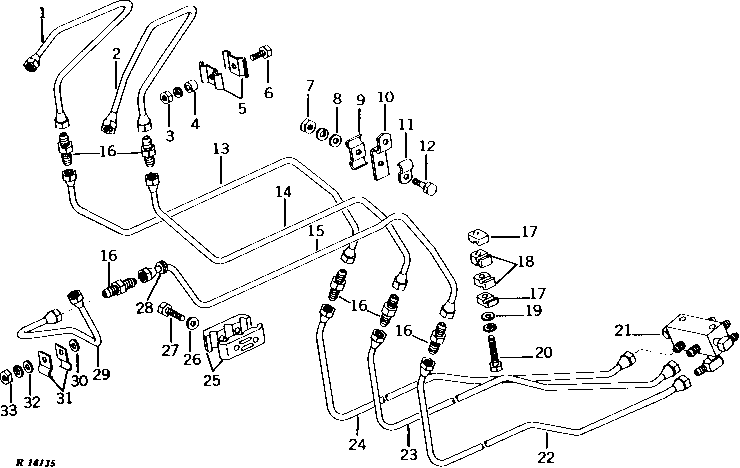

STEERING OIL LINES (TRACTOR SERIAL NO. 007920- ) (AIR CONDITIONING) [02K01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR43421	1	OIL LINE	STEERING VALVE, REAR, L.H.
2	AR43420	1	LINE	STEERING VALVE, REAR, R.H.
3	12H304	1	Lock Washer	3/8"
3	14H1076	1	Nut	3/8"
4	28H3381	1	Spacer	3/8" X 5/8"
5	R27491	2	Clamp	-
6	19H1800	1	Cap Screw	3/8" X 1-1/2"
7	14H786	1	Nut	1/4"
7	12H302	1	Lock Washer	1/4"
8	24H1821	1	Washer	9/32" X 47/64" X 1/16"
9	R27323	1	CLAMP	-
10	R43648	1	SUPPORT	-
11	R27590	1	CLAMP	-
12	19H1914	1	Cap Screw	1/4" X 1"
13	AR43960	1	LINE	STEERING VALVE, MIDDLE, L.H.
14	AR43958	1	LINE	STEERING VALVE, MIDDLE, CENTER
15	AR43959	1	LINE	STEERING VALVE, MIDDLE, R.H.
16	R27095	6	Fitting	-
17	R46067	2	CLAMP	-
18	R46066	2	CLAMP	-
19	24H1305	1	Washer	13/32" X 13/16" X 0.065"
20	19H2985	1	CAP SCREW	3/8" X 2-1/2"
20	12H304	1	Lock Washer	3/8"
21	AR43549	1	MANIFOLD	(NLA)
22	AR43839	1	OIL LINE	STEERING VALVE, FRONT, CENTER
23	AR43841	1	LINE	STEERING VALVE, FRONT, R.H. (NLA)
24	AR43842	1	LINE	STEERING VALVE, FRONT, L.H.
25	R43761	2	CLAMP	-
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	19H1765	2	Cap Screw	3/8" X 1-3/4"
27	12H304	2	Lock Washer	3/8"
28	R41440	1	Grommet	-
29	AR49248	1	LINE	STEERING VALVE, REAR, R.H.
30	24H1652	1	Washer	13/32" X 11/16" X 7/64"
31	R27720	2	CLAMP	-
32	24M7096	1	Washer	10.500 X 18 X 1.600 MM
33	14H1076	1	Nut	3/8"
33	12H304	1	Lock Washer	3/8"
