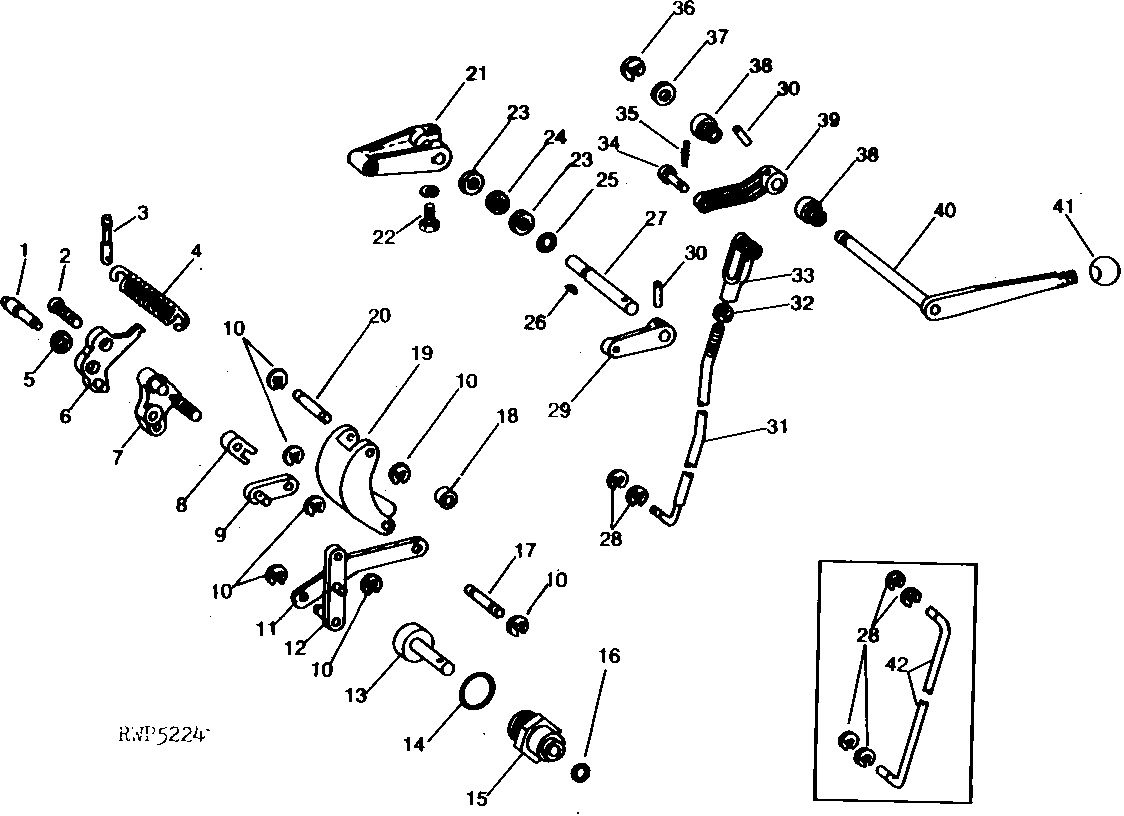

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL [03C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64296	1	SHAFT	(SUB FOR R40949)
2	T22228	1	SCREW	-
3	R41108	1	PIN FASTENER	-
4	R60730	1	Extension Spring	(SUB FOR R44300 OR R53033)
5	24H1321	1	Shim	29/64" X 13/16" X 0.018"
6	AR40676	1	LEVER	CONTROL VALVE ADJUSTING
7	AR40754	1	LINK	(SUB AR81783, R64845, T519R AND R64843)
8	R40885	1	NUT	(NLA)
9	AR40675	1	PIN FASTENER	-
10	R72653	7	Snap Ring	(SUB FOR M2396T)
11	R51025	1	LINK	(SUB FOR R41079)
12	AR40753	1	LINK	(SUB AR72292 AND AR79505)
13	R41077	1	SHAFT	(SUB AR79505 AND AR72292)
14	U13639	1	O-Ring	-
15	R41115	1	BEARING HOUSING W/O BEARING	-
16	R394R	1	O-Ring	-
17	R41118	1	PIN FASTENER	-
18	R41661	1	BUSHING	-
19	R40886	1	LINK	(SUB AR58474)
20	R41119	1	PIN FASTENER	-
21	R40944	1	ARM	LOAD SELECTOR CONTROL, (SUB AR58474)
22	19H1905	1	Cap Screw	5/16" X 1"
22	12H303	1	Lock Washer	5/16"
23	R47301	2	Washer	-
24	T519T	2	Washer	-
25	R394R	1	O-Ring	-
26	26H67	1	Shaft Key	1/8" X 3/8"
27	R41117	1	SHAFT	-
28	R72654	2	Snap Ring	(SUB FOR R27507)
29	R40892	1	LEVER	-
30	34H297	2	Spring Pin	7/32" X 1"
31	R43926	1	ROD	-
32	14H882	1	Nut	5/16"
33	R42282	1	Yoke	(SUB T54033 OR R82766)
34	R72660	1	Pin Fastener	(SUB R662R)
35	11M7079	1	Cotter Pin	0.098" X 0.472"
36	P44982	1	Piston Ring	-
37	24H1227	1	Washer	17/32" X 13/16" X 0.060"
38	R41076	2	Grommet	-
39	R40915	1	Lever	-
40	AR40683	1	LEVER	-
41	R40948	1	KNOB	-
42	R43926	1	ROD	(SUB FOR R43646) (ALSO ORDER T54033, R82766, 11M7079 AND 14H882) (FOR NO OR SINGLE SELECTIVE CONTROL) (FOR DUAL OR TRIPLE SELECTIVE CONTROL, ALSO ORDER R43927)

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL [03C17]

Нет текстового описания
