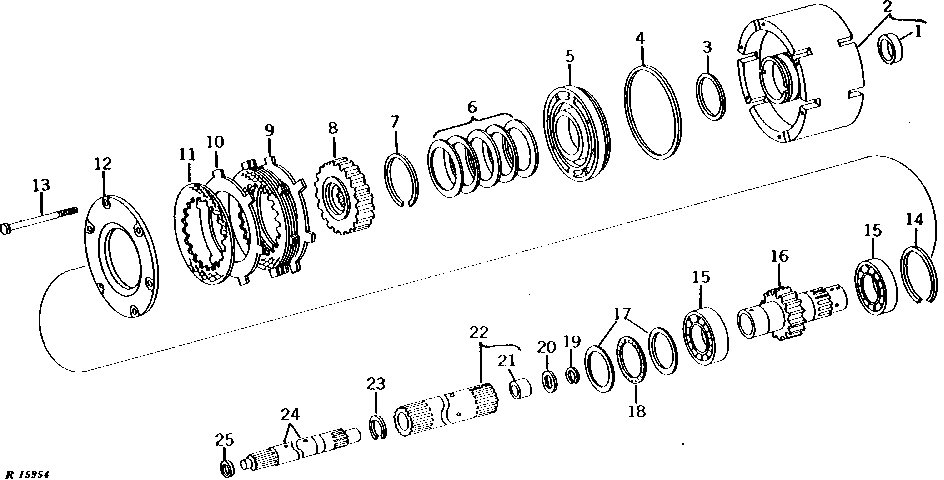

REAR TRANSMISSION CLUTCH PACK (POWER SHIFT) [02G18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43367	1	BUSHING	(A) (B) (NLA)
2	AR43093	1	DRUM	(MARKED R43028)
2	AR49654	1	DRUM	(A) (B) (MARKED R47124)
3	R43381	1	Washer	(A) (C)
4	R43380	1	WASHER	(A) (C) (SUB R120841)
5	R43304	1	PISTON	(A) (C) PTO CLUTCH
6	R70027	5	Disk Spring	(A) (C) (SUB FOR R43382)
7	R43383	1	Snap Ring	(A) (C)
8	R47125	1	SPLINED COUPLING	(A) (C) (SUB FOR R43030)
9	R46418	1	CLUTCH PLATE	(A) (C) (FLAT) (SUB FOR R43209)
10	R46419	3	CLUTCH PLATE	(A) (C) (WAVY) (SUB FOR R43210)
11	RE238331	4	CLUTCH DISK	(A) (SUB FOR AR43057, AR68352, AR87484, RE20133 OR RE28023) (ALSO ORDER R46418)
12	R43151	1	PLATE	(A) (C)
13	19H2343	6	Cap Screw	(A) (B) 5/16" X 5-1/2"
14	F2622R	1	SNAP RING	-
15	JD9320	2	Ball Bearing	-
16	R43905	1	SHAFT	PTO DRIVE, (SUB FOR R43060)
17	R43722	1	WASHER	-
17	JD9894	2	BEARING RACE	-
18	JD9886	1	Thrust Bearing	-
19	R43273	1	Snap Ring	-
20	R43374	1	THRUST WASHER	-
21	R43305	1	Bushing	-
22	AR43074	1	SHAFT	HIGH RANGE DRIVE
23	F2197R	1	Snap Ring	-
24	R43109	1	SHAFT	LOW RANGE DRIVE
25	AT12889	1	Seal	-
..	AR90515	1	CLUTCH	PTO, (SUB FOR AR49395)
..	AR90516	1	CLUTCH	LESS PTO, (SUB FOR AR49396)

REAR TRANSMISSION CLUTCH PACK (POWER SHIFT) [02G18]
