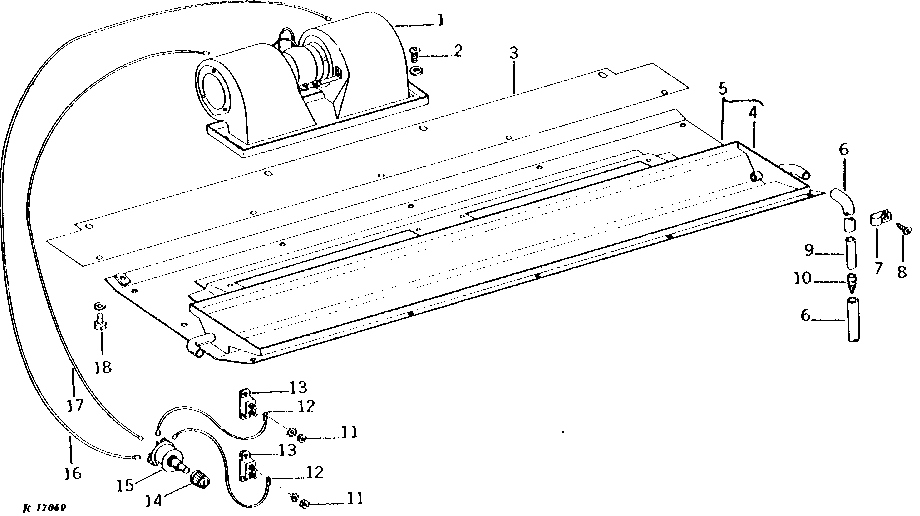

PRESSURIZER MOTOR AND EVAPORATOR TRAY (STOLPER CAB) (CAB SERIAL NO. 208300- ) [03H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR68973	2	BLOWER	(SUB FOR AR49968, AR53156, AR62561 OR AR66027) (ALSO ORDER R36229)
2	21H1158	8	Screw	0.164" X 1/2"
2	12H315	8	Lock Washer	0.164"
3	R47326	1	COVER	-
4	AR55715	1	CONTAINER	CONDENSATION TRAY, (SUB FOR AR50014) (ALSO ORDER R48913)
5	AR55713	1	PANEL	(SUB FOR AR50013) (ALSO ORDER R48913)
6	R47475	2	HOSE	-
7	R44516	4	CLAMP	-
8	37H49	4	Screw	NO. 10 X 1/2"
9	R47306	2	TUBE	-
10	R47305	2	VALVE	(SUB R48906, R45211 AND TY22465)
11	14H778	4	Nut	0.190"
11	12H246	4	LOCK WASHER	0.190"
12	-	2	Part 14	152MM (6") CIRCUIT BREAKER TO BLOWER SWITCH, (MAKE FROM R32018, R66319 AND R32027) (ALSO ORDER R32024)
13	AR49973	2	CIRCUIT BREAKER	15 AMP
14	AR69370	1	KNOB	(SUB FOR AR49969)
15	AR53155	1	SWITCH	(SUB FOR AR49964)
16	-	1	Part 18	1168MM (46") R.H. BLOWER, (MAKE FROM (2) R32027 AND R66319) (ALSO ORDER (2) R32024)
17	-	1	Part 19	813MM (32") L.H. BLOWER, (MAKE FROM (2) R32027 AND R66319) (ALSO ORDER (2) R32024)
18	19H1227	15	Cap Screw	1/4" X 1/2"
18	12H302	15	Lock Washer	1/4"

PRESSURIZER MOTOR AND EVAPORATOR TRAY (STOLPER CAB) (CAB SERIAL NO. 208300- ) [03H08]
