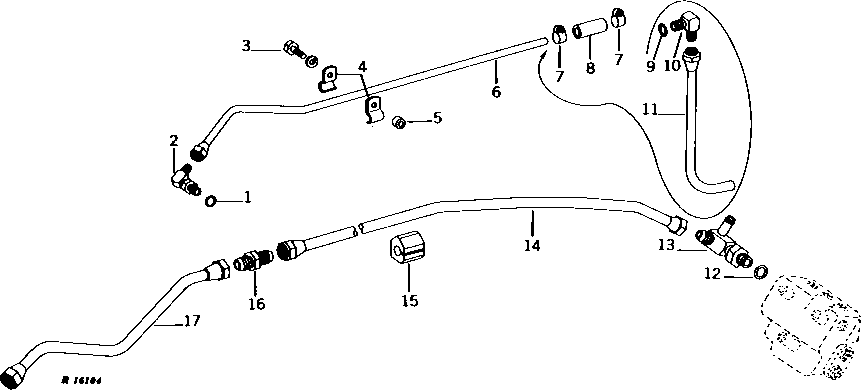

HYDRAULIC OIL DRAIN LINES (POWER FRONT WHEEL DRIVE) [02J11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	1	O-Ring	(A)
2	AT32332	1	Elbow Fitting	(A) (SUB FOR AR26763)
3	19H2552	1	CAP SCREW	3/8" X 1-1/8"
3	24M7096	1	Washer	10.500 X 18 X 1.600 MM
4	R27539	2	CLAMP	-
5	28H1519	1	Washer	0.493" X 0.675" X 3/8"
6	AR49083	1	LINE	(A) REAR DRAIN
7	AR21837	2	Clamp	(SUB TY22465)
8	R32641	1	HOSE	(SUB FOR R33678) (SUB TY22327)
9	R26448	1	O-Ring	(B) REAR DRAIN
10	AT35120	1	Elbow Fitting	(B) (SUB FOR AR37017 AND AT32337)
11	AR49081	1	LINE	(B)
12	U17409	1	O-Ring	-
13	AR49132	1	TEE FITTING	(SUB AR54694, R26375 AND R39112)
14	AR49118	1	OIL LINE	(A) FILTER RELIEF VALVE TO CONTROL VALVE, FRONT
14	AR49119	1	OIL LINE	(B) CLUTCH REGULATING VALVE TO CONTROL VALVE
15	R43479	1	SPACER	-
16	R27266	1	Fitting	-
17	AR43150	1	OIL LINE	(A) FILTER RELIEF VALVE TO CONTROL VALVE, REAR

HYDRAULIC OIL DRAIN LINES (POWER FRONT WHEEL DRIVE) [02J11]

Нет текстового описания
