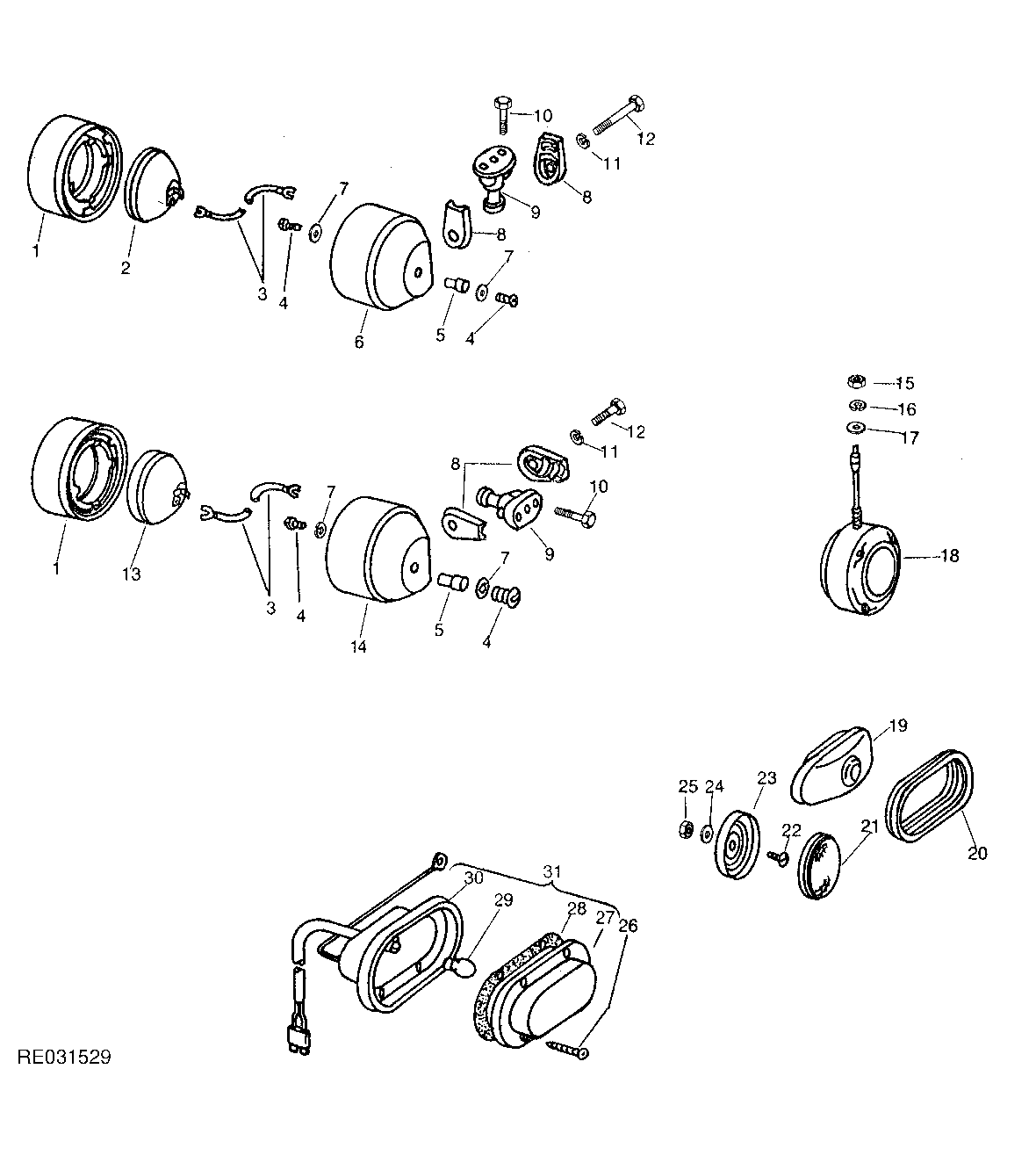

FRONT AND REAR LAMP PARTS, WARNING LAMP AND REFLECTOR (STOLPER CAB) [02D09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48293	6	Bezel	(GUIDE LAMP)
1	R42689	6	Bezel	(HOBBS)
2	AR104119	4	Headlight	(12-VOLT) (USE WITH RE19075)
2	RE285628	4	FLOODLAMP	LED LAMP, FLOOD PATTERN.
2	RE285629	4	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
2	AR42591	4	Headlight	(12-VOLT) (FRONT AND REAR UPPER LAMPS) (USE WITH AR42119)
3	-	1	Part 7	165MM (6-1/2") (MAKE FROM R66319 AND (2) R32016)
4	21H1293	12	SCREW	0.164" X 5/16"
5	R30181	6	PLATE	(HOBBS)
6	AR42119	4	FLOODLAMP	(12-VOLT) (SUB RE19075, THIS APPLICATION)
7	12M7084	12	Lock Washer	0.169"
8	R27460	12	ELEC. CONNECTOR ACCESSORY	-
9	T19178	6	BRACKET	-
10	37H106	12	SCREW	3/8" X 5/8"
11	12H301	6	Lock Washer	1/2"
12	19H2644	6	Cap Screw	1/2" X 2-1/2"
13	AF3892R	2	Bulb	(12-VOLT) (FRONT LOWER LAMPS)
13	AR104119	2	Headlight	(USE WITH RE19075)
13	RE285628	2	FLOODLAMP	LED LAMP, FLOOD PATTERN.
13	RE285629	2	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
14	AR42120	1	LAMP	(12-VOLT) (LOWER FRONT, R.H.) (SUB RE19075)
14	AR42121	1	LAMP	(12-VOLT) (LOWER FRONT, L.H.) (SUB RE19075)
15	14H856	2	Nut	1/2"
16	12H292	2	Lock Washer	1/2"
17	R47831	2	WASHER	-
18	AH164498	2	LAMP	WARNING, (SUB FOR AR38456 OR AT23467)
19	AR78825	2	Tail Lamp	(SUB FOR AR44989 OR AR45099)
19	12M7084	1	Lock Washer	4.300 MM
19	14H605	1	Nut	0.164"
20	R42779	2	GROMMET	-
21	T33745	2	Reflector	(SUB FOR R42777 OR R60731)
22	21H979	2	SCREW	0.190" X 5/16"
23	T33745	2	Reflector	(SUB FOR R42778 OR R60731)
24	12M7060	2	Washer	0.209"
25	14H631	2	Nut	0.190"
26	37H2	8	Screw	0.164" X 5/8"
27	R45936	2	Lens	-
28	R45937	2	Gasket	-
29	AR48041	2	Bulb	-
30	AR48040	2	HOUSING	(SUB AR78825)
31	AR78825	2	Tail Lamp	(SUB FOR AR45099)
31	12M7084	1	Lock Washer	4.300 MM
31	14H605	1	Nut	0.164"
