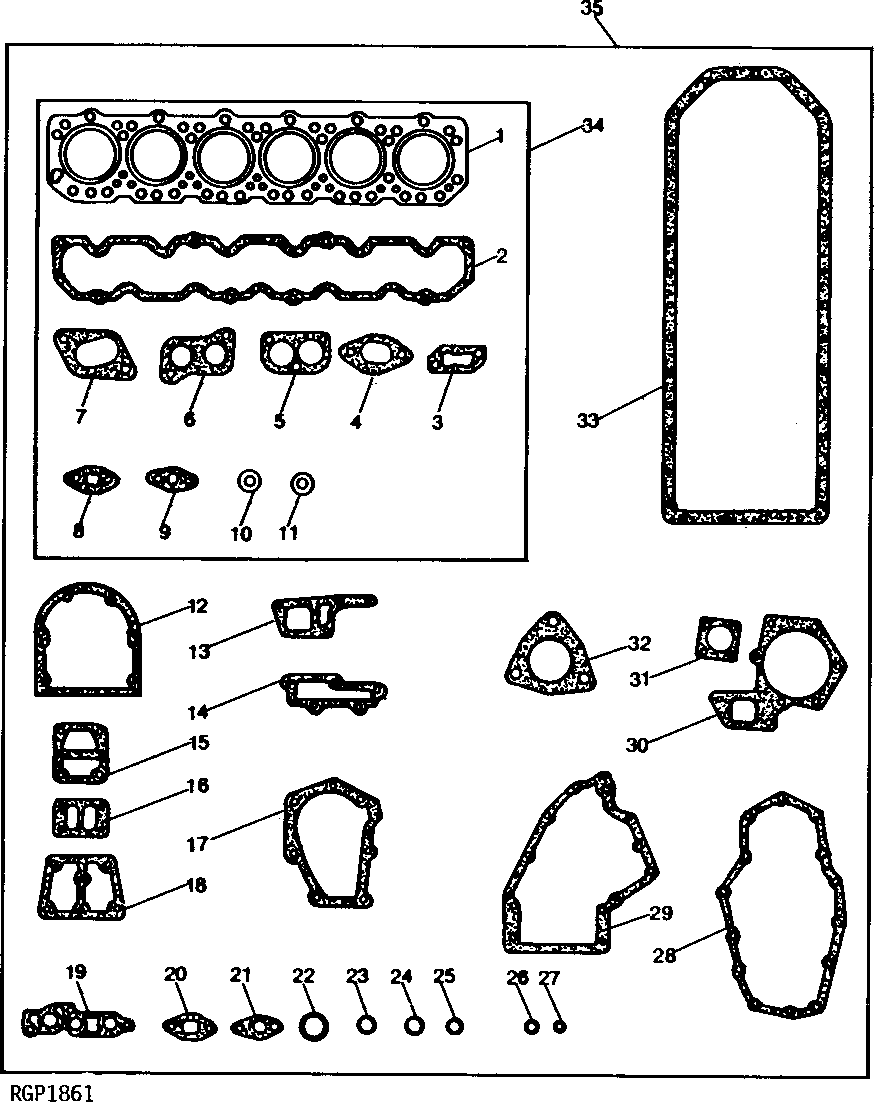

ENGINE GASKET SETS (ENGINE SERIAL NO. 303519- ) [01D06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48291	1	ENGINE CYLINDER HEAD GASKET	CYLINDER HEAD (THIN)
2	R49866	1	Gasket	ROCKER ARM COVER, (SUB FOR R32593)
3	R88397	2	Gasket	WATER OUTLET MANIFOLD, (SUB FOR R42693)
4	R83021	2	Gasket	EXHAUST MANIFOLD, OUTER, (SUB FOR R44374)
5	R124607	1	Gasket	(SUB FOR R46479) THERMOSTAT COVER
6	R83020	2	GASKET	EXHAUST MANIFOLD, INNER, (SUB FOR R44373)
7	R26297	3	GASKET	INTAKE MANIFOLD
8	R105346	1	Gasket	TURBOCHARGER OIL OUTLET ADAPTER, (SUB FOR R43416)
9	R97348	1	GASKET	TURBOCHARGER OIL INLET ADAPTER
10	R64840	6	Washer	INJECTION NOZZLE, (SUB FOR R48633)
11	R48693	12	Washer	INJECTION LEAK-OFF LINE
12	R26058	1	Gasket	CRANKSHAFT OIL SEAL HOUSING
13	R42406	2	GASKET	WATER PUMP
14	R45968	1	GASKET	CYLINDER COVER
15	R44853	1	GASKET	TACHOMETER DRIVE HOUSING (SUB FOR R62410, APPL)
16	R43751	1	GASKET	TURBOCHARGER
17	R42404	1	GASKET	WATER PUMP HOUSING
18	R43595	1	GASKET	CYLINDER HEAD WATER OPENING COVER
19	R43774	1	GASKET	OIL FILTER
20	R43558	1	GASKET	OIL COOLER
21	R43563	1	GASKET	WATER INLET ELBOW
22	-	1	Part 22	FUEL PUMP, (SUB R48399)
23	R47153	1	O-Ring	WATER BYPASS TUBE, (SUB FOR A4730R OR R50420, THIS APPLICATION)
24	R495R	4	O-Ring	VENT TUBE
25	R52811	4	O-RING	OIL COOLER LINES, (SUB FOR R47102)
26	R72328	1	O-Ring	TURBOCHARGER INLET OIL, (SUB FOR R43780)
27	R51203	1	O-Ring	TURBOCHARGER OUTLET LINE, (SUB FOR R43781)
28	R47047	1	GASKET	TIMING GEAR COVER
29	R46984	1	GASKET	GEAR HOUSING
30	R43117	1	GASKET	WATER PUMP COVER
31	R27948	2	GASKET	OIL COOLER CAP
32	R43488	1	GASKET	THERMOSTAT HOUSING
33	R71918	1	GASKET	OIL PAN, (SUB FOR R53282)
34	RG27874	1	GASKET KIT	(SUB FOR AR53095) (SUB RG27874) CYLINDER HEAD
35	AR53094	1	GASKET KIT	ENGINE REBUILD, (ALSO ORDER R48399) (SUB RG27873)

ENGINE GASKET SETS (ENGINE SERIAL NO. 303519- ) [01D06]
