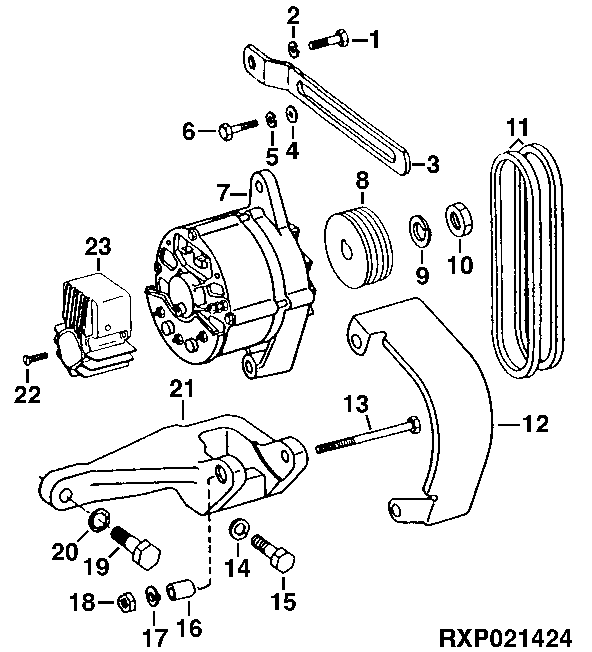

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET (AR52077) (WITH AIR CONDITIONING) [02C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2284	1	Cap Screw	3/8" X 7/8"
2	12H304	1	Lock Washer	3/8"
3	R43603	1	STRAP	-
4	24H1292	1	Washer	11/32" X 3/4" X 0.120"
5	12H303	1	Lock Washer	5/16"
6	19H1905	1	Cap Screw	5/16" X 1"
7	AR52077	1	ALTERNATOR	(72 AMP) (MOTOROLA NO.70D44414C01) (SUB TY24309)
7	TY24309	1	ALTERNATOR	(72 AMP) REMANUFACTURED, (SUB FOR TY6603)
7	SE501340	1	ALTERNATOR REMAN	(REMAN FOR TY24309)
8	AR55173	1	PULLEY	(SUB FOR R48426)
9	12H294	1	Lock Washer	5/8"
10	14H866	1	Nut	5/8"
11	AR43955	1	BELT SET	(NLA)
12	R56012	1	SHIELD	(SUB FOR R41334 OR R55245) (SUB R122848)
13	19H1854	1	Cap Screw	3/8" X 3-3/4"
14	12H293	1	Lock Washer	7/16"
15	19H1740	1	Cap Screw	7/16" X 1-3/4"
16	R45377	1	SPACER	(SUB FOR R36615)
17	12H304	1	Lock Washer	3/8"
18	14H1076	1	Nut	3/8"
19	19H2731	1	Cap Screw	7/16" X 1-3/8"
20	12H325	1	Lock Washer	7/16"
21	R48778	1	BRACKET	(SUB FOR R46574)
22	T31308	2	SCREW	-
23	AT56592	1	REGULATOR	-
