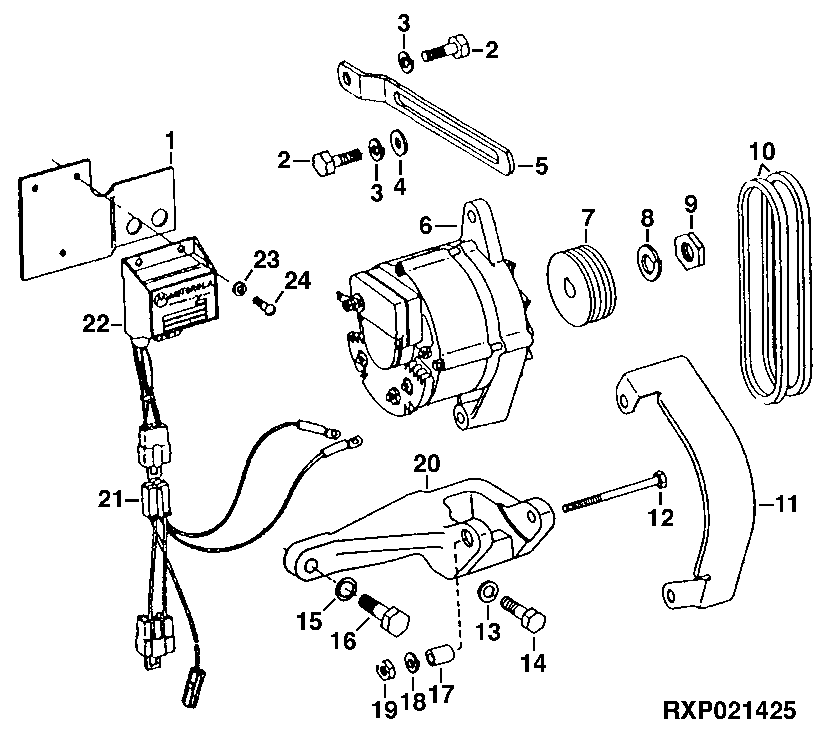

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET (AR43989) (WITH AIR CONDITIONING) [02C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46159	1	SUPPORT	(NLA)
2	19H1905	2	Cap Screw	5/16" X 1"
3	12H303	2	Lock Washer	5/16"
4	24H1292	1	Washer	11/32" X 3/4" X 0.120"
5	R46731	1	STRAP	-
6	AR43989	1	ALTERNATOR	(72 AMP) (MOTOROLA NO. 70D44236C) (SUB TY24309)
6	TY24309	1	ALTERNATOR	(SUB FOR AR43989, AR52077 OR TY6603) (12-VOLT)(72 AMP)(REMANUFACTURED)(MOTORLA)
6	SE501340	1	ALTERNATOR REMAN	(REMAN FOR TY24309)
7	AR55173	1	PULLEY	(SUB FOR R48426)
8	12H294	1	Lock Washer	5/8"
9	14H866	1	Nut	5/8"
10	AR43955	1	BELT SET	(NLA)
11	R56012	1	SHIELD	(SUB FOR R41334) (SUB R122848)
12	19H1854	1	Cap Screw	3/8" X 3-3/4"
15	12H293	2	Lock Washer	7/16"
16	19H2731	2	Cap Screw	7/16" X 1-3/8"
17	R45377	1	SPACER	-
18	12H304	1	Lock Washer	3/8", (NOT REQUIRED)
19	E55662	1	Flange Nut	3/8"
20	R48778	1	BRACKET	-
21	AR48267	1	WIRING HARNESS	(NLA)
22	AR77485	1	VOLTAGE REGULATOR	(12-VOLT) (MOTOROLA) (SUB FOR AR48266)
23	12M7060	3	Washer	0.209"
24	21H1316	3	Screw	0.190" X 1/2"

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET (AR43989) (WITH AIR CONDITIONING) [02C05]
