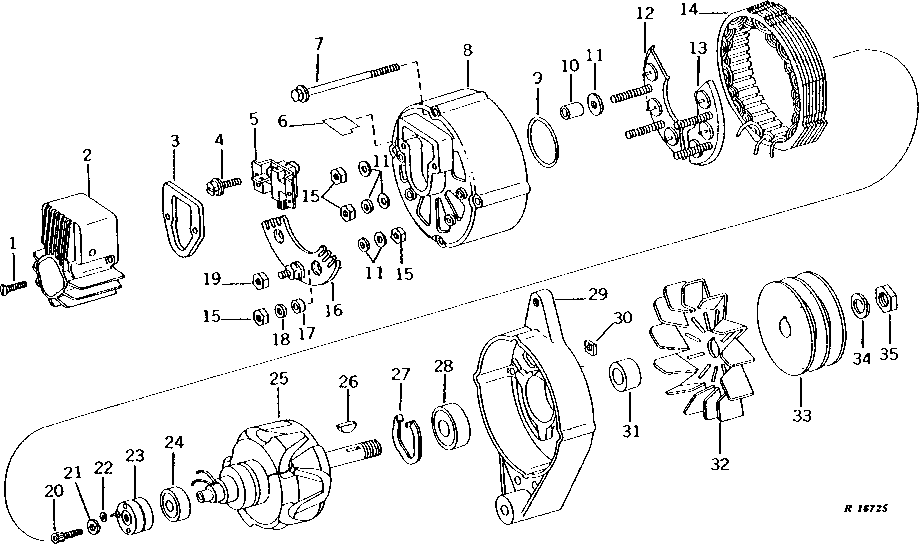

ALTERNATOR (12-VOLT) (72 AMP) (MOTOROLA) (AR52077) (AIR CONDITIONING) [02C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T31308	2	SCREW	-
2	AT56592	1	REGULATOR	(SUB FOR AR52079)
3	T29100	1	GASKET	-
4	37H10	2	Screw	0.164" X 3/8"
5	AT27128	1	HOLDER	-
6	T25357	1	Insulator	-
7	R47460	4	BOLT	-
8	R48728	1	HOUSING	-
9	T29105	1	RETAINER	-
10	T25353	2	BUSHING	-
11	R15036	7	WASHER	-
12	AH103067	1	PLATE	POSITIVE, (SUB FOR AR50225)
13	AH103068	1	PLATE	NEGATIVE
14	AR50226	1	Stator	-
15	14H778	6	Nut	0.190"
15	12H246	4	LOCK WASHER	0.190"
16	AR50229	1	Diode	-
17	R39803	1	WASHER	-
18	R15036	1	WASHER	(SUB FOR R39804)
19	14H786	1	Nut	1/4"
19	12H297	1	Lock Washer	1/4"
20	T17948	1	SCREW	(SUB FOR T29102)
21	12H246	1	LOCK WASHER	0.190"
22	R47461	1	INSULATOR	-
23	AT27127	1	RING	(NLA)
24	JD9449	1	Ball Bearing	(SUB FOR AT23188)
25	AR50227	1	ROTOR	NLA, (ORDER TY24309)
25	SE501340	1	ALTERNATOR REMAN	(REMAN FOR TY24309)
26	26H72	1	Shaft Key	1/8" X 5/8"
27	R15029	1	RETAINER	-
28	JD9449	1	Ball Bearing	(SUB FOR AT23188)
29	R15033	1	HOUSING	-
30	T23610	4	NUT	-
31	T25343	1	BUSHING	-
32	R15027	1	FAN	-
33	AR55173	1	PULLEY	(SUB FOR R48426)
34	12H294	1	Lock Washer	5/8"
35	14H866	1	Nut	5/8"
..	TY24309	1	ALTERNATOR	(REMANUFACTURED) (SUB FOR AR43989 OR AR52077 OR TY6603)

ALTERNATOR (12-VOLT) (72 AMP) (MOTOROLA) (AR52077) (AIR CONDITIONING) [02C09]
