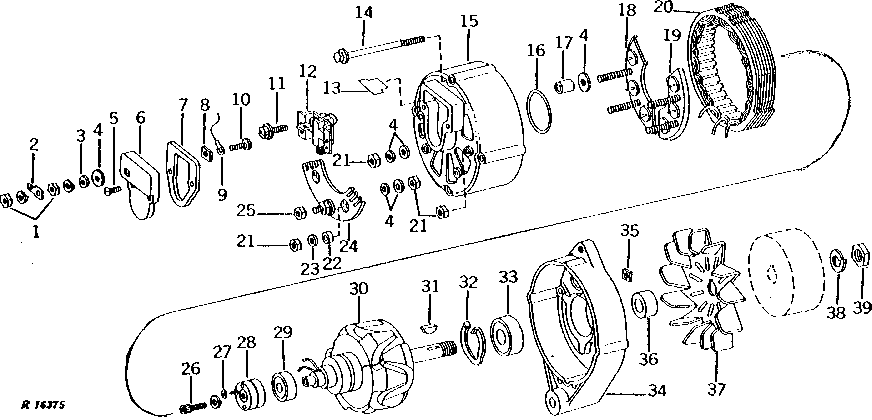

ALTERNATOR (12-VOLT) (72 AMP) (MOTOROLA) (AR43989) (AIR CONDITIONING) [02C08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7060	2	Washer	0.209"
1	14H778	2	Nut	0.190"
2	T26041	1	TERMINAL	(NLA)
3	24H1283	1	Washer	7/32" X 1/2" X 0.049"
4	R15036	8	WASHER	-
5	37H78	2	SCREW	0.164" X 3/4"
6	T29098	1	COVER	(NLA)
7	T29100	1	GASKET	-
8	T25350	1	INSULATOR	(NLA)
9	T29101	1	WIRING LEAD	(NLA)
10	T25349	1	SCREW	-
11	37H10	2	Screw	0.164" X 3/8"
12	AT27128	1	HOLDER	-
13	T46862	1	ISOLATOR	(SUB FOR T25357)
14	R47460	4	BOLT	-
15	T31307	1	HOUSING	-
16	T29105	1	RETAINER	(NLA)
17	T25353	2	BUSHING	-
18	AH103067	1	PLATE	POSITIVE, (SUB FOR AT27123)
19	AH103068	1	PLATE	NEGATIVE, (SUB FOR AT27124)
20	AR50226	1	Stator	-
21	14H778	8	Nut	0.190"
22	R39803	1	WASHER	-
23	R15036	1	WASHER	(SUB FOR R39804)
24	AR50229	1	Diode	-
25	14H786	1	Nut	1/4"
25	12H297	1	Lock Washer	1/4"
26	T17948	1	SCREW	(SUB FOR T29102)
26	12H246	1	LOCK WASHER	0.190"
27	R47461	1	INSULATOR	-
28	AT27127	1	RING	(NLA)
29	JD9449	1	Ball Bearing	(SUB FOR AT23188)
30	SE501340	1	ALTERNATOR REMAN	(REMAN FOR TY24309)
30	TY24309	1	ALTERNATOR	-
30	AR50227	1	ROTOR	NLA, (ORDER TY24309)
31	26H72	1	Shaft Key	1/8" X 5/8"
32	R15029	1	RETAINER	-
33	JD9449	1	Ball Bearing	(SUB FOR AT23188)
34	R15033	1	HOUSING	FRONT
35	T23610	4	NUT	-
36	T25343	1	BUSHING	-
37	R15027	1	FAN	-
38	12H294	1	Lock Washer	5/8"
39	14H866	1	Nut	5/8"
..	TY24309	1	ALTERNATOR	(REMANUFACTURED) (SUB FOR AR43989, AR52077 OR TY6603)

ALTERNATOR (12-VOLT) (72 AMP) (MOTOROLA) (AR43989) (AIR CONDITIONING) [02C08]
