SOLENOID VALVE, OIL TANK FILTER AND PILOT PIPINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	8055498	1	Bracket	(SUB FOR AT201894)
1	4307603	1	Solenoid Valve	(SUB FOR AT201758)
2	19M7662	6	Cap Screw	M10 X 30
2	12M7066	6	Lock Washer	10 mm
9	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH101006)
10	4154672	2	Elbow Fitting	(SUB FOR TH101008)
11	4200465	1	Adapter Fitting	(SUB FOR TH108328)
15	4303003	1	Tee Fitting	(SUB FOR AT202321)
17	4154672	1	Elbow Fitting	(SUB FOR TH101008)
18	4631976	1	Oil Filter	(SUB FOR TH108402, 4191300)
19	12M7066	2	Lock Washer	10 mm
19	19M8093	2	Cap Screw	M10 X 100
22	4270679	1	Tee Fitting	(SUB FOR AT202306)
28	4200465	1	Adapter Fitting	(SUB FOR TH108328)
30	4389009	1	Hydraulic Hose	(4344492 NLA) (SUB FOR AT204917)
33	AH89069	1	Elbow Fitting	-
77	AE42718	1	Hydraulic Hose	11.1252" X 600 mm (23-1/2") X 11.1252"
78	AA56904	1	Hydraulic Hose	3/4" X 514 mm (20-1/4") X 3/4", (SUB FOR AN280330)
79	AT49783	1	HYDRAULIC HOSE - FABRICATE	3/4" X 635 mm (25") X 3/4"
85	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH101006)
9A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
10A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
11A	M800650	1	Packing	-
15A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
17A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
18A	AT186554	1	Filter Element	(SUB FOR AT147821)
18B	-	1	Part 17	-
18C	AT264334	1	O-Ring	(SUB FOR TH100101)
22A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
28A	M800650	1	Packing	-
85A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)

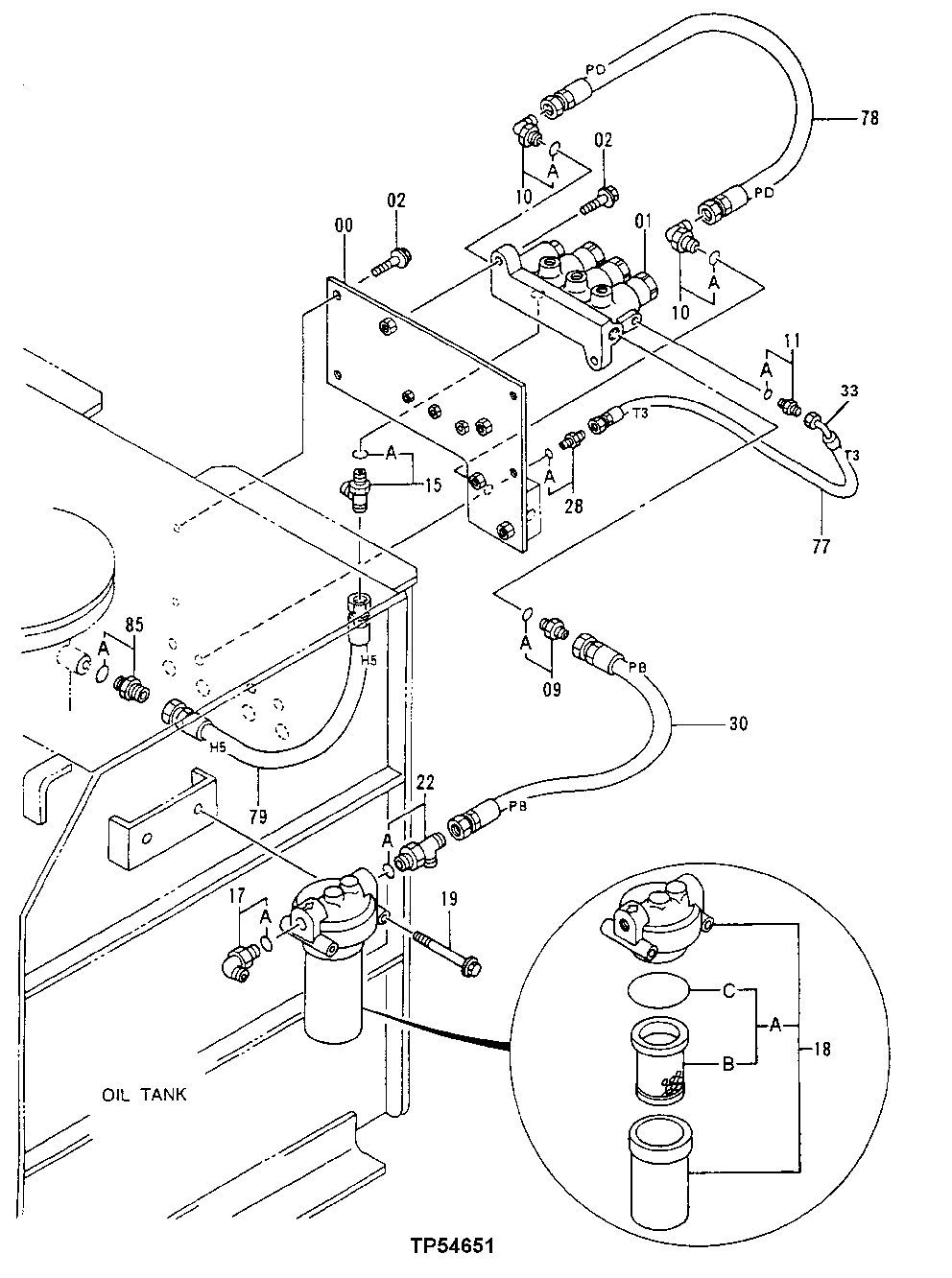

SOLENOID VALVE, OIL TANK FILTER AND PILOT PIPINGS
