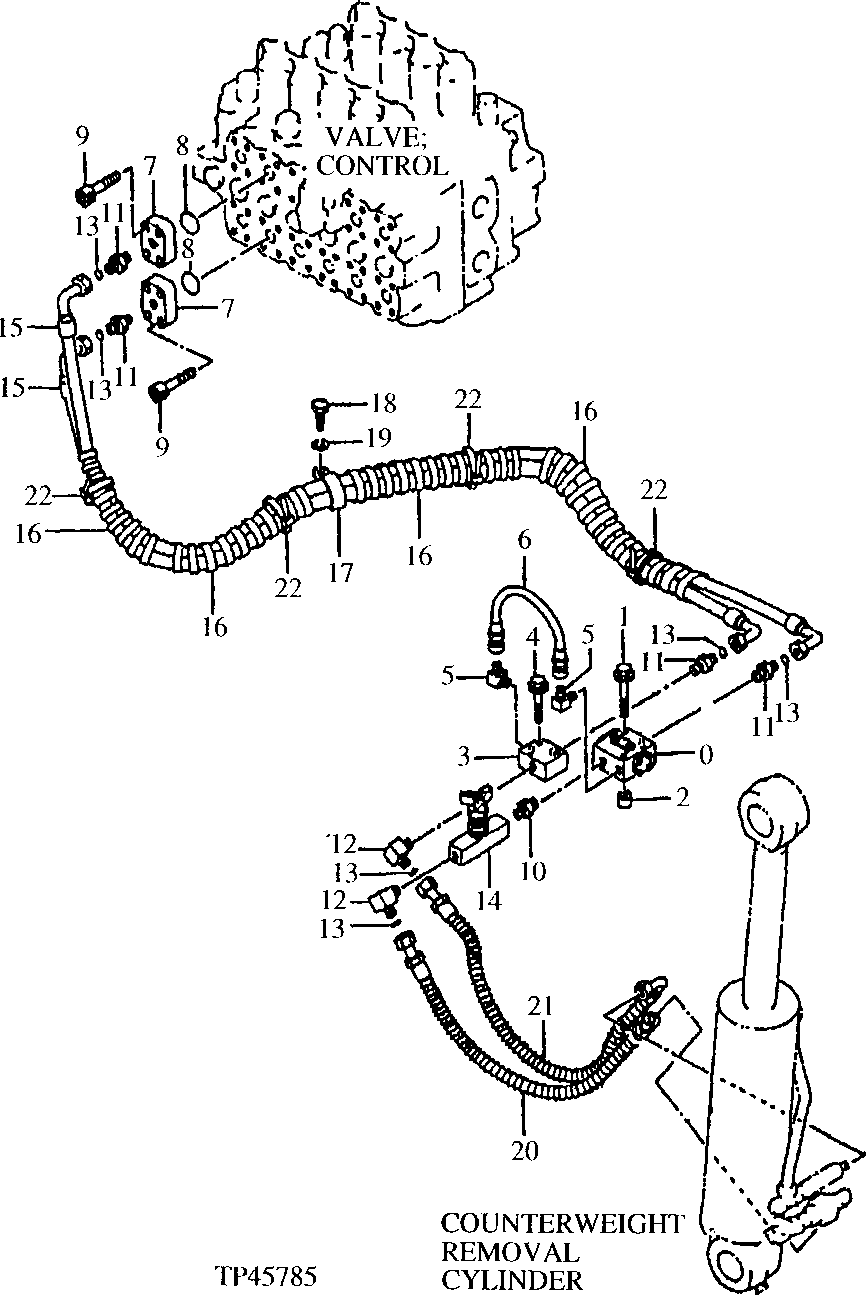

COUNTERWEIGHT REMOVAL HIGH PRESSURE PIPINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4240863	1	Flow Control Hyd. Valve	(SUB FOR AT132548)
1	19M7875	2	Cap Screw	M10 X 70
1	12M7066	2	Lock Washer	10 mm
2	4131346	2	Spacer	10.900 X 17.300 X 16 mm (0.429" X 0.681" X 0.630"), (SUB FOR AT132491)
3	4240862	1	Manifold	(SUB FOR AT132547)
4	19M8655	2	Cap Screw	M10 X 55
4	12M7066	2	Lock Washer	10 mm
5	4154656	2	Elbow Fitting	(SUB FOR TH101588)
6	AT126482	1	Hydraulic Hose	11.1252" X 500 mm (19-3/4") X 11.1252"
7	4240861	2	Flange	(SUB FOR AT132546)
8	T72216	2	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
9	19M8734	8	Screw	M14 X 45
10	94-1703	1	Adapter Fitting	(SUB FOR TH101976)
11	4210942	4	Adapter Fitting	(SUB FOR AT131868)
12	4274178	2	Elbow Fitting	(SUB FOR AT170146)
13	T77857	6	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
14	4220806	1	Flow Control Hyd. Valve	(SUB FOR AT128495)
15	4331745	2	Hydraulic Hose	(SUB FOR AT170149)
16	-	4	Part 19	Bulk Material, (MF XHG-075 CTL) (SUB FOR AT138222)
17	R50454	1	Clamp	(SUB FOR TH109445 OR 4192034)
18	19M8324	1	Cap Screw	M10 X 16
19	12M7066	1	Lock Washer	10 mm
20	4343812	1	Hydraulic Hose	(SUB FOR AT170150)
21	4343813	1	Hydraulic Hose	(SUB FOR AT170151)
22	H77698	4	Tie Band	-
30	-	1	Part 26	(AT169021 NLA, SUB AT196481) (WHOLEGOODS) (REMOVAL SYSTEM) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES)

COUNTERWEIGHT REMOVAL HIGH PRESSURE PIPINGS

Нет текстового описания
