Открытый узел

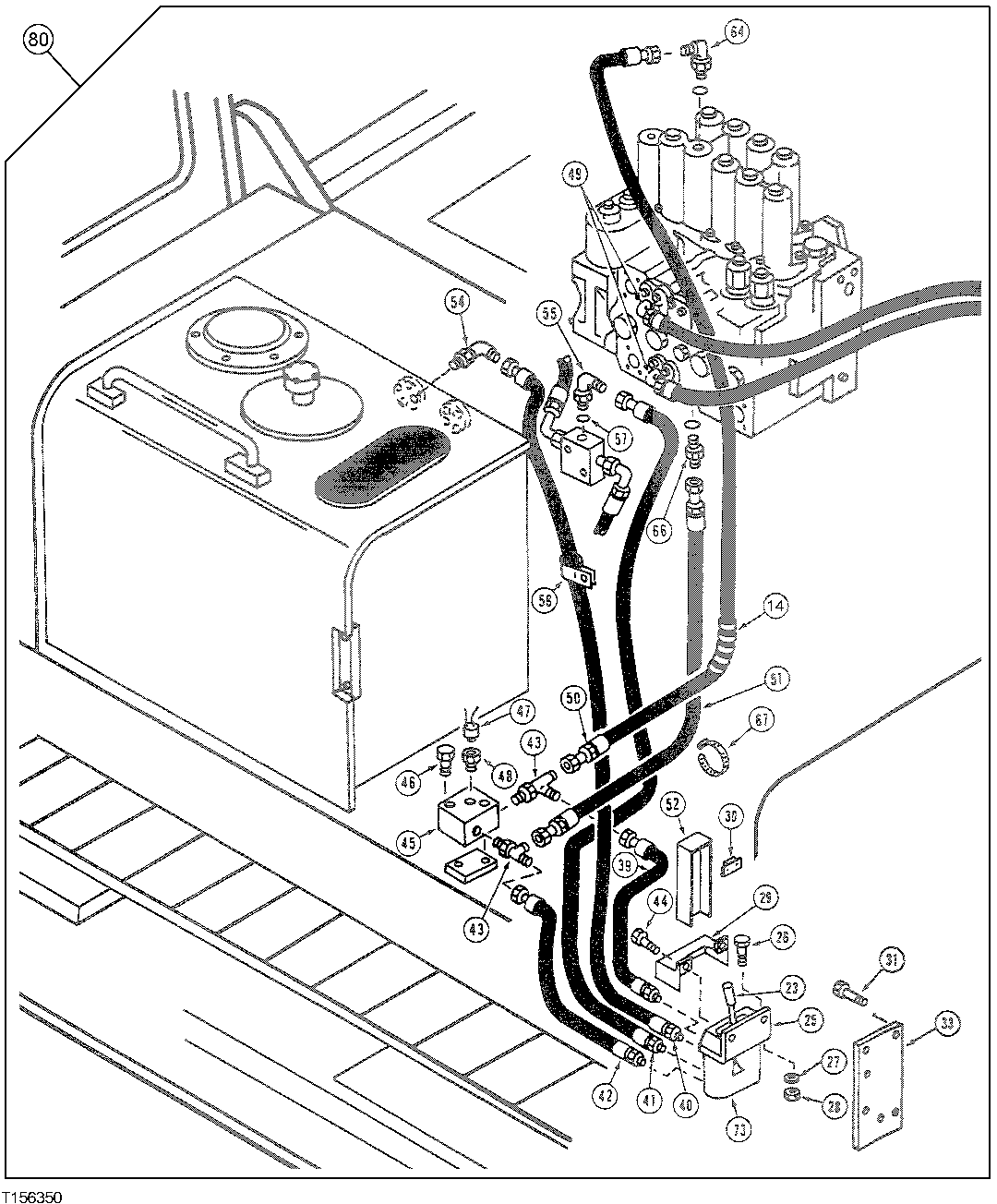

Counterweight Removal Device

Counterweight Removal Device

Counterweight Removal Device

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Counterweight Removal Device

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
23	34M7102	1	Spring Pin	5 X 26 mm
23	9732429	1	Lever	(SUB FOR AT132598)
23	24M7085	3	Washer	15 X 28 X 2.500 mm
23	4122424	1	Grip	(SUB FOR AT132489)
25	3046025	1	Bracket	(SUB FOR AT132476)
25	19M6332	3	Cap Screw	M14 X 35
26	19M7402	2	Cap Screw	M10 X 25
27	12M7066	2	Lock Washer	10 mm
28	14M7274	2	Nut	M10
29	8044683	1	Cover	(SUB FOR AT132582)
30	4240985	1	Catch	(SUB FOR AT132550)
30	21M7394	2	Screw	M3 X 10
30	12H233	2	Lock Washer	1/8", (SUB FOR 12M7048)
31	19M8011	4	Cap Screw	M12 X 30
39	4200467	1	Adapter Fitting	(SUB FOR TH108417)
39	4436254	1	Hydraulic Hose	(SUB FOR TH4436254) (FOR 450CLC)
39	AT37543	1	HYDRAULIC HOSE - FABRICATE	-
40	4373639	1	Hydraulic Hose	(SUB FOR AT170155 OR 4258889)
40	4457505	1	Hydraulic Hose	(SUB FOR TH4457505) (FOR USE ON 450CLC)
41	4373639	1	Hydraulic Hose	(SUB FOR AT170155 OR 4258889)
41	4457508	1	Hydraulic Hose	(SUB FOR TH4457508) (FOR USE ON 450CLC)
41	4200467	1	Adapter Fitting	(SUB FOR TH108417)
42	4290170	1	Hydraulic Hose	(SUB FOR AT170158)
42	4457503	1	Hydraulic Hose	(SUB FOR TH4457503) (FOR USE ON 450CLC)
42	4200467	1	Adapter Fitting	(SUB FOR TH108417)
43	4207300	1	Tee Fitting	(SUB FOR AT126381)
43	A852423	1	Tee Fitting	(SUB FOR THA852423) (FOR USE ON 450CLC)
44	19M7402	1	Cap Screw	M10 X 25
45	4195759	1	Flow Control Hyd. Valve	-
46	12M7066	2	Lock Washer	10 mm
46	19M8655	2	Cap Screw	M10 X 55
47	4254563	1	Pressure Switch	Counterweight Removal, (SUB FOR AT154212)
47	4436535	1	Sensor	(SUB FOR TH4436535) (FOR USE ON 450CLC)
48	4339737	1	Reducer	(SUB FOR AT170159)
49	4240861	2	Flange	(SUB FOR AT132546)
49	4395369	2	Flange Fitting	(SUB FOR TH4395369) (FOR USE ON 450CLC)
49	T72216	2	O-Ring	-
49	4506418	2	O-Ring	(SUB FOR U46489) (FOR USE ON 450CLC)
49	19M8734	8	Screw	M14 X 45
49	4210942	2	Adapter Fitting	(SUB FOR AT131868)
49	A853144	2	Adapter Fitting	(SUB FOR THA853144) (FOR USE ON 450CLC)
49	T77857	2	O-Ring	(SUB FOR TH108323)
50	4443902	1	Hydraulic Hose	(SUB FOR TH4457509, 4457509 OR 4443896)
50	4305130	1	Hydraulic Hose	(SUB FOR AT170156)
51	4234397	1	Hydraulic Hose	(SUB FOR AT170157)
51	4457510	1	Hydraulic Hose	(SUB FOR TH4457510)
52	4240984	1	Cover	(SUB FOR AT132549)
54	4241385	1	Elbow Fitting	(SUB FOR AT170160)
55	AT318014	1	Elbow Fitting	(SUB FOR 4156434) (SUB FOR TH101930)
57	M800650	1	Packing	-
58	T28949	1	Clamp	(SUB FOR TH108460 OR 4190273)
58	AT121321	1	Hose Clamp	-
64	A852333	1	Elbow Fitting	(SUB FOR TH101047) (SUB FOR 4154671)
66	4200466	1	Adapter Fitting	(SUB FOR TH108320)
67	H77698	1	Tie Band	-
73	9074843	1	Hyd Actuated Control Valve	-
80	AT196481	1	Kit	(SUB FOR AT169021) (WHOLEGOODS) (COUNTERWEIGHT REMOVAL) (ADDITIONAL COMPONENTS ON FOLLOWING PAGE)
