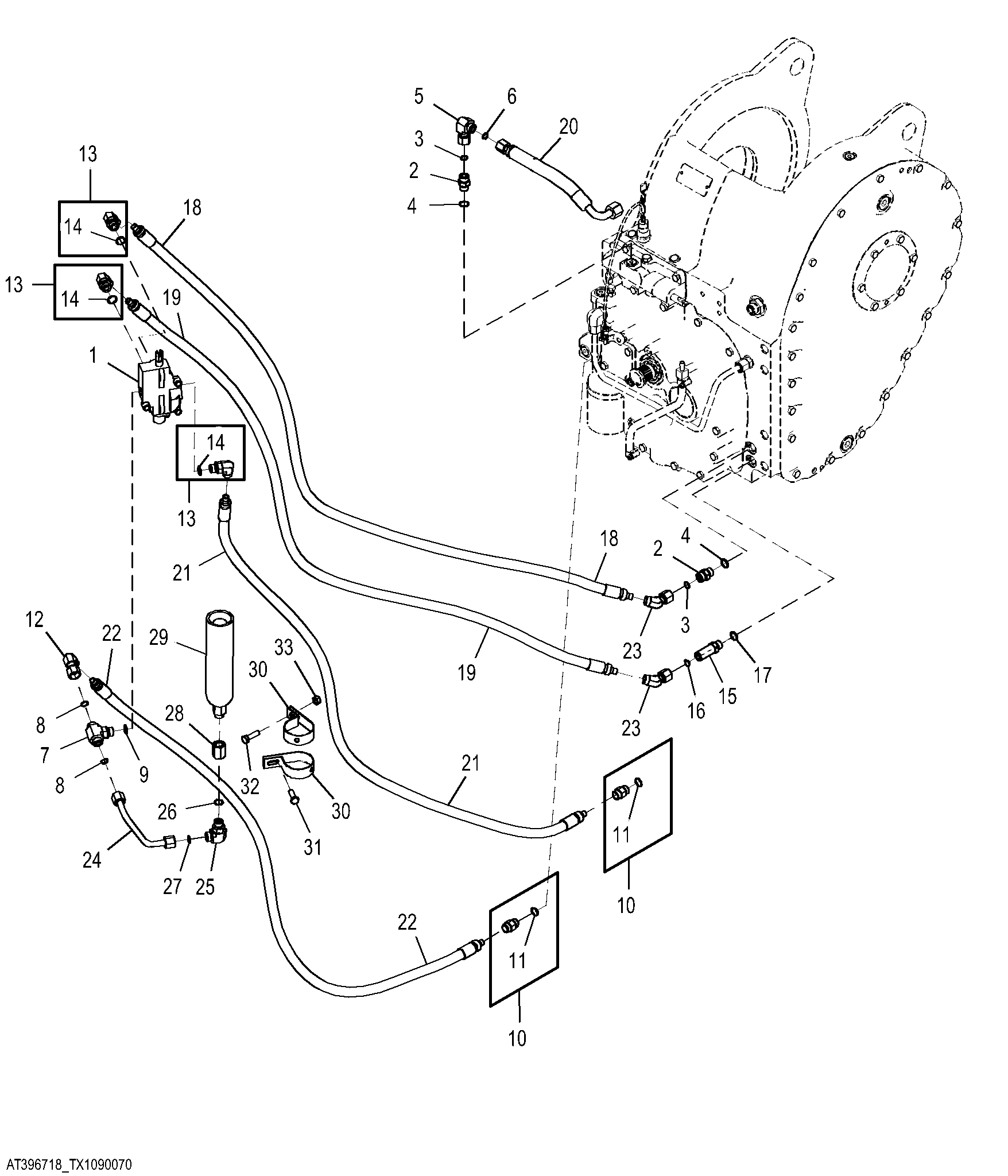

Winch External Lines with Accumulator

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT87429	1	Spool Valve	Power In Power Out
2	38H1161	2	Adapter Fitting	-
3	T77857	2	O-Ring	-
4	R26375	2	O-Ring	-
5	38H1095	1	Elbow Fitting	-
6	T77857	1	O-Ring	-
7	38H1017	1	Tee Fitting	-
8	T77857	2	O-Ring	-
9	R26375	1	O-Ring	-
10	62H1002	2	Adapter Fitting	-
11	R26375	1	O-Ring	-
12	62H1022	1	Adapter Fitting	-
13	62H1012	3	Adapter Fitting	-
14	R26375	1	O-Ring	-
15	38H1213	1	Adapter Fitting	-
16	T77857	1	O-Ring	-
17	R26375	1	O-Ring	-
18	AT396716	1	Hydraulic Hose	SUB FOR AT182373, ALSO ORDER (2) 62H1043 AND (2) T77857
19	AT396716	1	Hydraulic Hose	SUB FOR AT182373, ALSO ORDER (2) 62H1043 AND (2) T77857
20	AT396197	1	Hydraulic Hose	-
21	AT396716	1	Hydraulic Hose	SUB FOR AT182373, ALSO ORDER (2) 62H1043 AND (2) T77857
22	AT396716	1	Hydraulic Hose	SUB FOR AT182373, ALSO ORDER (2) 62H1043 AND (2) T77857
23	62H1083	2	Adapter Fitting	-
24	AT382005	1	Oil Line	-
25	38H1005	1	Elbow Fitting	-
26	R26375	1	O-Ring	-
27	T77857	1	O-Ring	-
28	R30815	1	Fitting	-
29	AR96877	1	Cap	-
29	T225374	1	Label	Not Illustrated, SUB FOR T225384
29	R60170	1	Valve	Refrigeration Valve
29	B3690R	1	O-Ring	-
29	AT125711	1	Hydraulic Accumulator	150 psi, ALSO ORDER T225374
30	T234228	2	Clamp	-
31	19M7662	1	Cap Screw	M10 X 30
32	19M7550	1	Cap Screw	M10 X 35
33	14M7274	1	Nut	M10
34	T212304	1	Tool	Not Illustrated

Winch External Lines with Accumulator
