Hydraulic Control Valve (Three Function) (312957 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KV16143	1	Pressure Relief Valve	Anticavitation Valve, INCLUDES CB11461941
1	AT407411	1	Hand Operated Valve	Three Spool Complete Control Valve, INCLUDES KV16143
1	CB11461941	1	Seal Kit	-
2	AT221403	1	Valve Stack	Inlet Housing
3	AT225537	1	Spool Valve	Angle Spool Section
4	AT222117	1	Valve Stack	Tilt Spool Section
4	AT220400	1	Seal Kit	-
5	T176728	1	Spacer	Angle Spool Positioner
6	T175732	1	Spring	-
7	AT336563	1	Valve Stack	Lift Spool Section, INCLUDES AT220398 AND AT220400
7	AT220398	1	Float Kit	INCLUDES T176448
7	AT220400	1	Seal Kit	-
8	T176448	1	Spring	-
9	R26448	1	O-Ring	-
10	R26906	1	O-Ring	-
11	-	2	Part 16	NSEP, ORDER AT211314
12	-	1	Part 17	NSEP, ORDER AT211314
13	-	4	Part 18	NSEP, ORDER AT211314
14	-	2	Part 19	NSEP, ORDER AT211314
15	AT408145	1	Pressure Relief Valve	3000 psi
15	AT314538	1	Seal Kit	INCLUDES T107887, R111235 AND R79060
15	T107887	1	O-Ring	-
15	R111235	1	Back-Up Ring	-
15	R79060	1	O-Ring	-
16	AT211314	1	Tie Rod Assembly	-
17	AT224820	2	Pressure Relief Valve	-
18	AT78527	1	Fitting Plug	Shut-Off
19	T183756	1	Seal	-
20	24M7238	3	Washer	8.700 X 17 X 2 mm
21	19M7922	3	Cap Screw	M8 X 40
22	38H1163	1	Adapter Fitting	-
23	T77858	1	O-Ring	-
24	U12547	1	O-Ring	-
25	38H1174	2	Adapter Fitting	-
26	T77857	2	O-Ring	-
27	R26906	2	O-Ring	-
28	38H1171	4	Adapter Fitting	-
29	T77613	4	O-Ring	-
30	R26375	4	O-Ring	-
31	38H1162	1	Adapter Fitting	-
32	T77932	1	O-Ring	-
33	R26906	1	O-Ring	-
34	38H1033	1	Tee Fitting	-
35	T77858	2	O-Ring	-
36	T267778	1	Adapter Fitting	-
37	T77857	1	O-Ring	-
38	T175731	1	Flow Control Hyd. Valve	Outlet Housing
39	T76502	1	Fitting	-

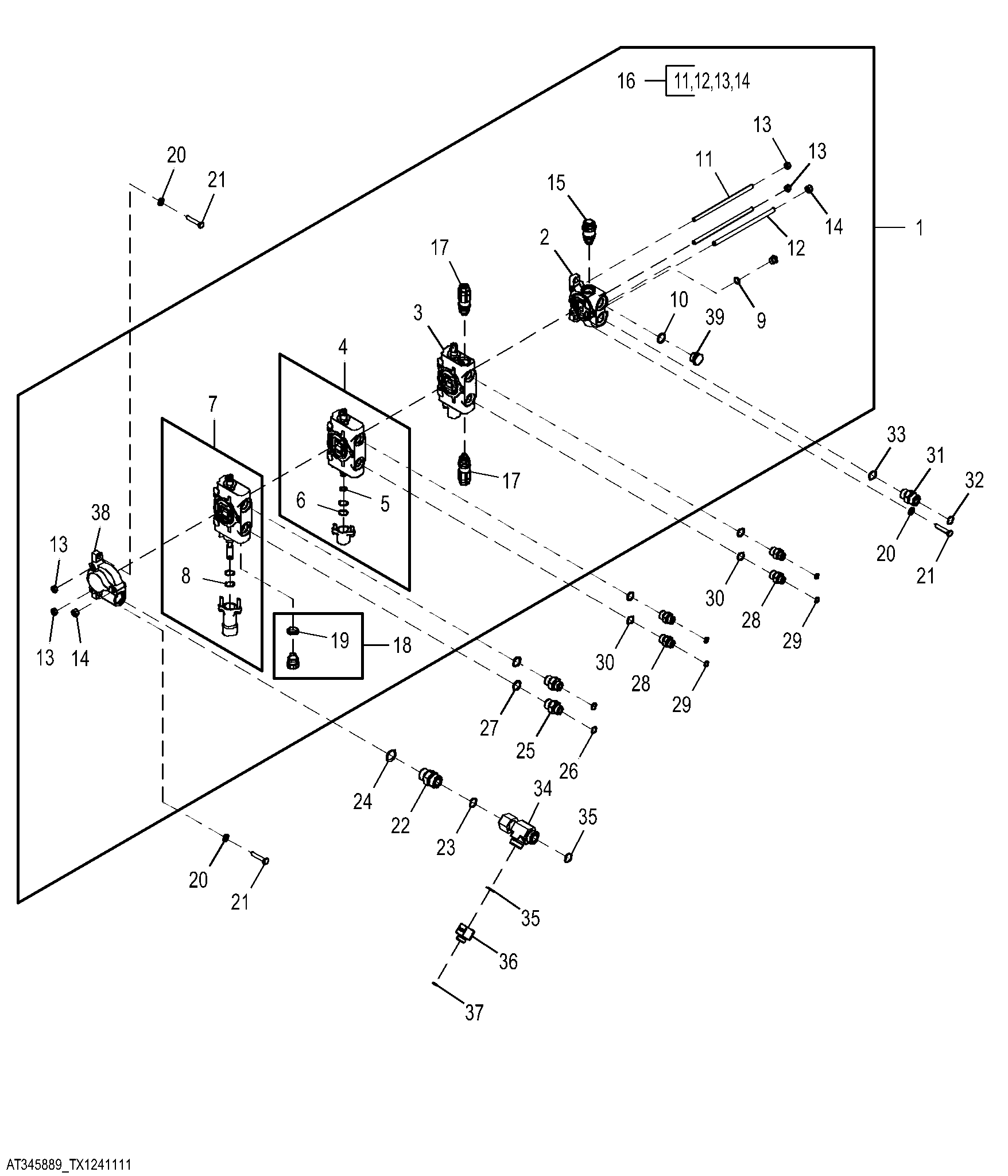

Hydraulic Control Valve (Three Function) (312957 - )
