Открытый узел

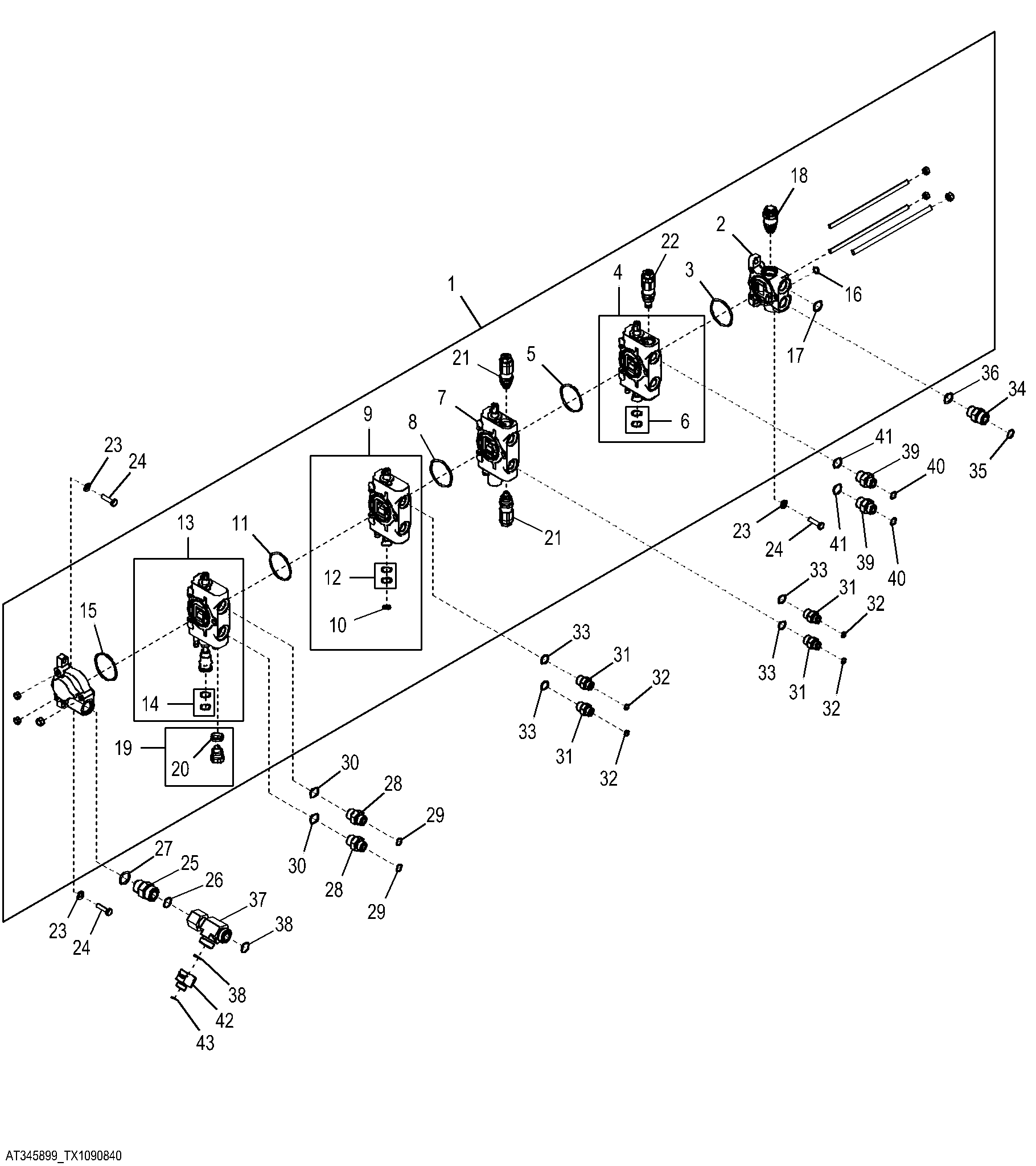

Hydraulic Control Valve (Four Function) ( - 312956)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT407412	1	Hand Operated Valve	Components On Separate Page, SUB FOR AT343654
1	AT343654	1	Hand Operated Valve	Four Spool Complete Control Valve Furnish Components, NLA, ORDER AT407412
1	AT211314	1	Tie Rod Assembly	-
2	AT221403	1	Valve Stack	-
3	L111836	1	O-Ring	56.740 X 3.530 mm (2-15/64" X 0.139")
4	AT222119	1	Valve Stack	Auxiliary Valve Section
4	AT220400	1	Seal Kit	Seal Kit
5	L111836	1	O-Ring	56.740 X 3.530 mm (2-15/64" X 0.139")
6	T175732	1	Spring	-
7	AT225537	1	Spool Valve	Angle Spool Section
8	L111836	1	O-Ring	56.740 X 3.530 mm (2-15/64" X 0.139")
9	AT222117	1	Valve Stack	Tilt Spool Section
9	AT220400	1	Seal Kit	Seal Kit
10	T176728	1	Spacer	Angle Spool Positioner
11	L111836	1	O-Ring	56.740 X 3.530 mm (2-15/64" X 0.139")
12	T175732	1	Spring	-
13	AT336563	1	Valve Stack	Lift Spool Section
13	AT220398	1	Float Kit	-
13	AT220400	1	Seal Kit	Seal Kit
14	T176448	1	Spring	-
15	L111836	1	O-Ring	56.740 X 3.530 mm (2-15/64" X 0.139")
16	R26448	1	O-Ring	-
17	R26906	1	O-Ring	-
18	AT321340	1	Flow Control Hyd. Valve	(3000 PSI)
18	AT314538	1	Seal Kit	-
19	AT78527	2	Fitting Plug	Shut-Off
19	KV16143	2	Pressure Relief Valve	Anticavitation Valve
20	T183756	1	Seal	(USE WITH AT78527)
20	CB11461941	1	Seal Kit	(USE WITH KV16143)
21	AT224820	2	Pressure Relief Valve	-
22	AT221397	1	Pressure Relief Valve	Relief, (3450 PSI)
22	AT314538	1	Seal Kit	Seal Kit
23	24M7238	3	Washer	8.700 X 17 X 2 mm
24	19M7513	3	Cap Screw	M8 X 30
25	38H1163	1	Adapter Fitting	-
26	T77858	1	O-Ring	-
27	U12547	1	O-Ring	-
28	38H1174	1	Adapter Fitting	-
29	T77857	1	O-Ring	-
30	R26906	1	O-Ring	-
31	38H1171	4	Adapter Fitting	-
32	T77613	4	O-Ring	-
33	R26375	4	O-Ring	-
34	38H1162	1	Adapter Fitting	-
35	T77932	1	O-Ring	-
36	R26906	1	O-Ring	-
37	38H1033	1	Tee Fitting	-
37	38H1532	1	Tee Fitting	(AO T77857)
38	T77858	2	O-Ring	-
39	38H1174	2	Adapter Fitting	-
40	T77857	2	O-Ring	-
41	R26906	2	O-Ring	-
42	T267778	1	Adapter Fitting	-
43	T77857	1	O-Ring	-

Hydraulic Control Valve (Four Function) ( - 312956)

Нет текстового описания
