Fuel Fired Coolant Heater (Hydronic 5 Series Heater)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT348754	1	Coolant Heater	Whole Goods
2	AT116162	3	Isolator	-
3	24H1176	4	Washer	13/32" X 1-1/4" X 0.100"
4	AT356913	1	Bracket	-
5	R123616	1	Plug	-
6	T254529	1	Elbow Fitting	-
7	51M7043	1	O-Ring	15.300 X 2.200 mm
8	AT311171	1	Coolant Heater	-
9	T177580	1	Hose	-
10	15H219	1	Elbow Fitting	1/8", Oil Pressure Sending Unit Fitting
11	19M8254	1	Cap Screw	M6 X 110
12	AT221605	1	Clamp	-
13	24M7238	2	Washer	8.700 X 17 X 2 mm
14	19M7981	1	Cap Screw	M8 X 55
15	14M7273	1	Nut	M8
16	AT353138	4	Clamp	-
17	24M7024	1	Washer	9 X 28 X 3 mm
18	24H1122	1	Washer	3/8" X 7/8" X 0.083"
19	14M7327	1	Lock Nut	M8
20	19M8359	1	Cap Screw	M8 X 45
21	19M7835	1	Screw	M10 X 35
22	19M7798	1	Screw	M8 X 40
23	24H1287	1	Washer	9/32" X 5/8" X 0.065"
24	N207956	1	Lock Nut	-
25	T120536	1	Clamp	-
26	19M7938	1	Cap Screw	M10 X 20
27	14M7296	1	Flange Nut	M10
28	T64784	1	Clip	-
29	19M8672	1	Screw	M14 X 25
30	19M9295	1	Cap Screw	M6 X 20
31	T179306	1	Clamp	-
32	38H1030	1	Tee Fitting	-
33	T77613	2	O-Ring	-
34	AT301917	8	Hose Clamp	-
35	29H593	1	Threaded Nipple	1/2"
36	15H587	1	Tee Fitting	1/2"
37	RE54885	1	Hose Fitting	-
38	AT389672	1	Bezel Kit	-
39	AT221990	1	Digital Display	-
40	AT388895	1	Fitting	-
41	L1253N	1	Adapter Fitting	-
42	T179483	1	Fitting	Sub For T177579
43	T206126	1	Exhaust Pipe	-
44	T177575	1	Exhaust Cap	-
45	T177522	1	Hose	Use For Cab Without Heater, Make From TY22330, CTL
46	T210130	1	Hose	-
47	M158004	1	Adapter Fitting	-
48	T259468	1	Hose	-
49	T206127	1	Bulk Hose	-
50	T62804	1	Fitting	-
51	T177522	1	Hose	Use For Cab With Heater, Make From TY22330, CTL
52	AT316599	1	Wiring Harness	-
53	AT221991	1	Wiring Harness	-
54	R44302	1	Tie Band	-
55	99M7069	1	Fuse	Not Illustrated

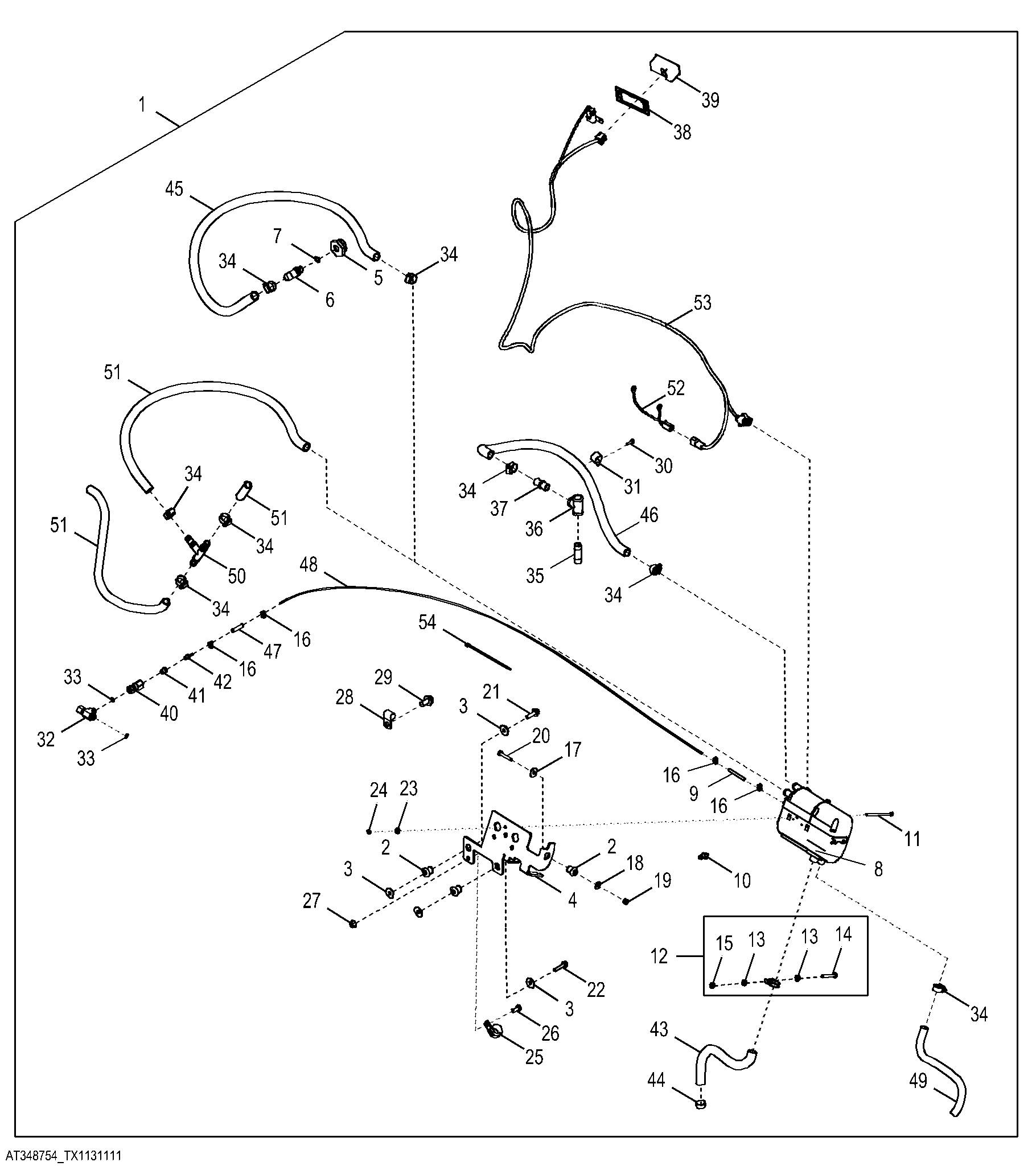

Fuel Fired Coolant Heater (Hydronic 5 Series Heater)
