Открытый узел

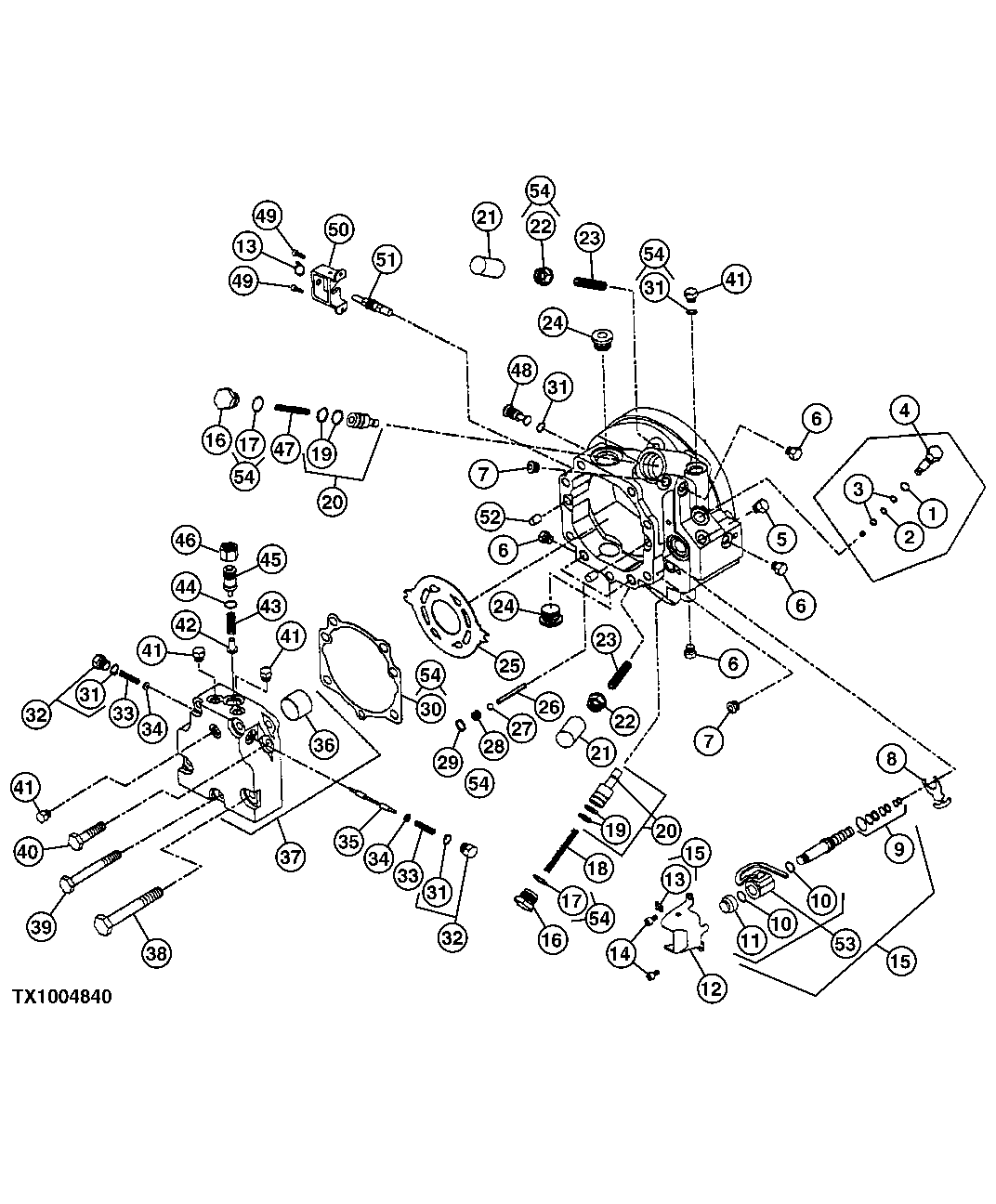

HYDROSTATIC MOTOR, SPEED SENSOR, END CAP, AND SHIFT VALVE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AT220843)
2	-	1	Part 2	(SUB AT220843)
3	-	2	Part 3	(SUB AT220843)
4	AT220843	1	Plug	(SHIFT ORIFICE)
5	T176383	1	Plug	-
5	R28782	1	O-Ring	-
6	T176383	4	Plug	-
6	R28782	4	O-Ring	-
7	T176425	2	Plug	-
7	R28782	2	O-Ring	-
8	T177599	1	Lock Plate	(SOLENOID)
9	AT318181	1	O-Ring Kit	(SUB FOR <service-part qty="1">AT220841</service-part>)(SOLENOID VALVE SEAT)
10	T176380	2	O-Ring	-
11	T176378	1	Nut	-
12	T176415	1	Bracket	(SOLENOID COVER)
13	R44302	1	Tie Band	-
14	T176416	2	Screw	-
15	AT318180	1	Solenoid Valve	(SUB FOR <service-part qty="1">AT220840</service-part>)(MOTOR SHIFT KEY)
16	T176394	2	Nut	(SPECIAL)
17	T176395	2	O-Ring	-
18	T176397	1	Spring	-
19	T176376	4	Seal	(PISTON SEAL RING)
20	AT220837	2	Piston	(SERVO PISTON ASSEMBLY)
21	T176390	2	Cap	(PLASTIC)
22	T176393	2	Nut	(SEAL)
23	T197813	2	Screw	(SUB FOR <service-part qty="1">T176391</service-part>, THIS APPLICATION)(SET)
24	T64769	2	Drain Plug	-
25	T176385	1	Plate	(MOTOR VALVE)
26	T176399	2	Pin	(SLOTTED)
27	T176400	2	Ball	-
28	T176402	2	Plug	(ORIFICED PIPE)
29	T176401	2	Ring	(CRUSHED)
30	T176398	1	Gasket	(END CAP)
31	R26448	2	O-Ring	-
32	AT180814	2	Plug	(SPECIAL), (SUB FOR AT220839)
33	-	2	Part 36	(SUB AT196462 ) (SUB FOR T162071, THIS APPLICATION)
34	T155740	2	Guide	(SPRING)
35	T176405	1	Spool	(SHUTTLE)
36	R150986	1	Bearing	(JOURNAL)
37	AT221621	1	Cap	(END CAP)(TWIN PORTS)
38	T176403	4	Screw	-
39	T176403	1	Screw	(SUB FOR R150987)
40	T176404	2	Screw	-
41	R26448	1	O-Ring	-
41	R27218	4	Fitting Plug	-
42	T155743	1	Poppet	(CHARGE RELIEF)
43	T155742	1	Spring	(SUB FOR T165494)
44	T176409	1	O-Ring	-
45	T158242	1	Pressure Relief Valve	(CHARGE RELIEF PLUG)
46	H63228	1	LOCK NUT	(SUB FOR T176412)
47	T176396	1	Spring	-
48	T176386	1	Pin	(HOLD DOWN)
49	T176422	2	Screw	-
50	T177095	1	Cover	(SPEED SENSOR)
51	AT360573	1	Wheel Speed Sensor	(SUB FOR AT220042 AND AT222633 ) (ALSO ORDER R44302)
52	R726R	2	Dowel Pin	-
53	AT220842	1	Coil Kit	-
54	AT220845	1	Seal Kit	(OVERHAUL)(CONTAINS PARTS ON OTHER PAGES)
55	M74600	1	O-Ring	(SUB FOR T158240, THIS APPLICATION ) (SUB FOR T155981)

HYDROSTATIC MOTOR, SPEED SENSOR, END CAP, AND SHIFT VALVE
