BLADE FOR ADJUSTABLE PITCH

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-	1	Part 2	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (90 INCH)(CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368152</service-part> ) (SUB FOR <service-part qty="1">AT305014</service-part> (HARDWARE NOT INCLUDED))
2	-	1	Part 1	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (97 INCH)(CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368153</service-part> ) (SUB FOR <service-part qty="1">AT305022</service-part> (HARDWARE NOT INCLUDED))
2	-	1	Part 9	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (121 INCH) (CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368158</service-part> OR <service-part qty="1">AT368154</service-part> ) (SUB FOR <service-part qty="1">AT305034</service-part > (HARDWARE NOT INCLUDED))
2	-	1	Part 8	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (124 INCH) (CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368154</service-part> ) (SUB FOR <service-part qty="1">AT303488</service-part> (HARDWARE NOT INCLUDED))
2	-	1	Part 7	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (128 INCH) (CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368157</service-part> ) (SUB FOR <service-part qty="1">AT303200</service-part> (HARDWARE NOT INCLUDED))
2	-	1	Part 5	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (105 INCH) (CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368155</service-part> ) (SUB FOR <service-part qty="1">AT305032</service-part> (HARDWARE NOT INCLUDED))
2	-	1	Part 4	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (115 INCH) (CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368158</service-part> ) (SUB FOR <service-part qty="1">AT305024</service-part> (HARDWARE NOT INCLUDED))
2	-	1	Part 3	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (124 INCH) (CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368154</service-part> ) (SUB FOR <service-part qty="1">AT305027</service-part> (HARDWARE NOT INCLUDED))
2	-	1	Part 6	(MAY ALSO REQUIRE BLADE RETAINING RING CONVERSION KIT) (105 INCH) (CA) (ALSO REQUIRES AT300480 ADJUSTABLE PITCH LINK AND AT307378 C-FRAME CONVERSION KIT), (SUB <service-part qty="1">AT368156</service-part> ) (SUB FOR <service-part qty="1">AT305036</service-part> (HARDWARE NOT INCLUDED))
3	T155646	1	Cutting Edge	(WITH 128 INCH BLADE)
3	T120981	1	Cutting Edge	(WITH 121 INCH BLADE)
3	T120980	1	Cutting Edge	(WITH 105 INCH BLADE)
3	T140560	1	Cutting Edge	(WITH 115 INCH BLADE)
3	T172943	1	Cutting Edge	(CUTTING EDGE) (WITH 124 INCH BLADE)
3	T127297	1	Cutting Edge	(WITH 90 INCH BLADE)
3	T120979	1	Cutting Edge	(WITH 97 INCH BLADE)
4	T162841	2	Dura-Max Cutting Edge	-
5	T70286	13	Bolt	(USE WITH 90, 97, 105 INCH BLADE)
5	T70286	15	Bolt	(USE WITH 115 INCH, 121 INCH, 124 INCH AND 128 INCH BLADE)
6	T10510	13	Washer	-
6	T10510	15	Washer	-
7	14H1058	13	Nut	3/4"
7	14H1058	15	Nut	3/4"
9	19M7784	8	Screw	M10 X 20, (USE WITH 90" AND 115" BLADE)
9	19M7784	10	Screw	M10 X 20, (USE WITH 97", 105", 124" AND 128" BLADE)
10	19M7789	4	Screw	M12 X 30
11	T170879	4	Pin	-
12	T170880	4	Plate	-
13	T170884	6	Bushing	-
14	T178620	6	Bushing	-
16	T174256	2	Bushing	-
16	T170884	2	Bushing	(USE WITH 115" BLADE)
17	19M7784	4	Screw	M10 X 20
20	T261505	1	Label	(SUB FOR <service-part qty="1">T216870</service-part>, <service-part qty="1">T242971</service-part>)(ENGLISH) (TORQUE AND SHIM DETAIL)
20	T261516	1	Label	(SUB FOR <service-part qty="1">T242972</service-part>)(SPANISH) (TORQUE AND SHIM DETAIL)
20	T261515	1	Label	(SUB FOR <service-part qty="1">T242973</service-part>)(FRENCH) (TORQUE AND SHIM DETAIL)
21	T181021	1	Socket	-
26	JD7759	1	Lubrication Fitting	-
29	T70286	12	Bolt	-
30	T182280	1	Dura-Max Cutting Edge	(RH)(STRAIGHT 6 BOLT ENDBIT)
30	T182281	1	Dura-Max Cutting Edge	(LH)(STRAIGHT 6 BOLT ENDBIT)
31	T182304	1	Dura-Max Cutting Edge	(CUPPED ENDBIT)(RH)(6 BOLT)
31	T182253	1	Dura-Max Cutting Edge	(CUPPED ENDBIT)(LH)(6 BOLT)
33	T10510	12	Washer	-
34	14H1058	12	Nut	3/4"
35	AT225884	1	Field Installation Kit	(BLADE ENDBIT)
37	-	1	Part 47	(INCLUDES AT303142)(BLADE CONVERSION TO GO FROM FIXED TO ADJUSTABLE PITCH LINK) (35 INCH BY 105 INCH, 115 INCH, 121 INCH, AND 128 INCH BLADE) ( AT307443 NLA)
37	-	1	Part 48	(BLADE CONVERSION TO GO FROM FIXED TO ADJUSTABLE PITCH LINK) (35 INCH BY 90 INCH AND 97 INCH BLADE), (INCLUDES AT303142 ( AT307441 NLA))
37	-	1	Part 49	(BLADE CONVERSION TO GO FROM FIXED TO ADJUSTABLE PITCH LINK) (32 INCH BY 124 INCH AND 128 INCH BLADE), (INCLUDES AT303142 ( AT307442 NLA))
37	-	1	Part 50	(BLADE CONVERSION TO GO FROM FIXED TO ADJUSTABLE PITCH LINK) (39 INCH BY 105 INCH BLADE), (INCLUDES AT303142 ( AT307444 NLA))
37	AT303142	1	Plate	-

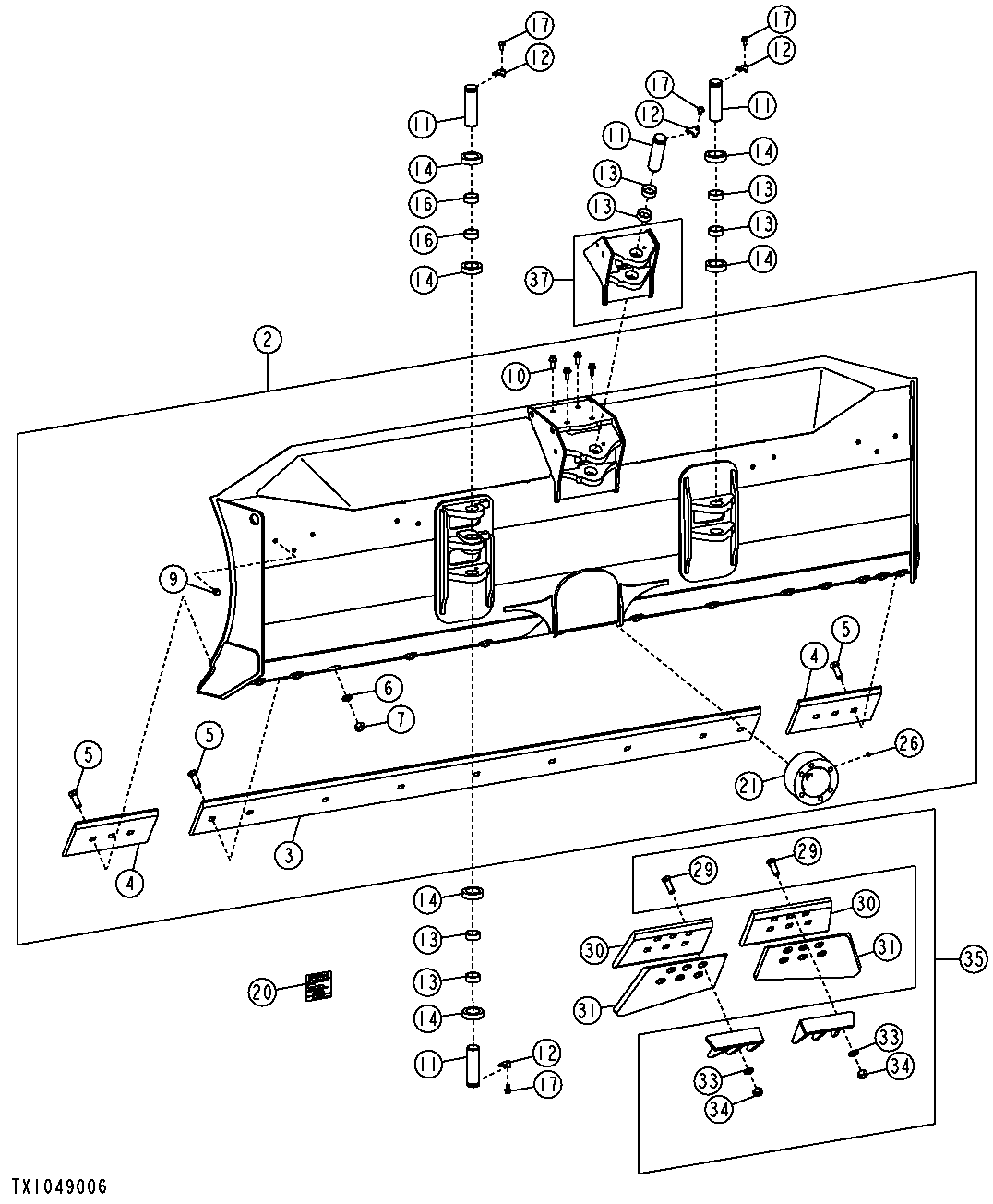

BLADE FOR ADJUSTABLE PITCH
