Открытый узел

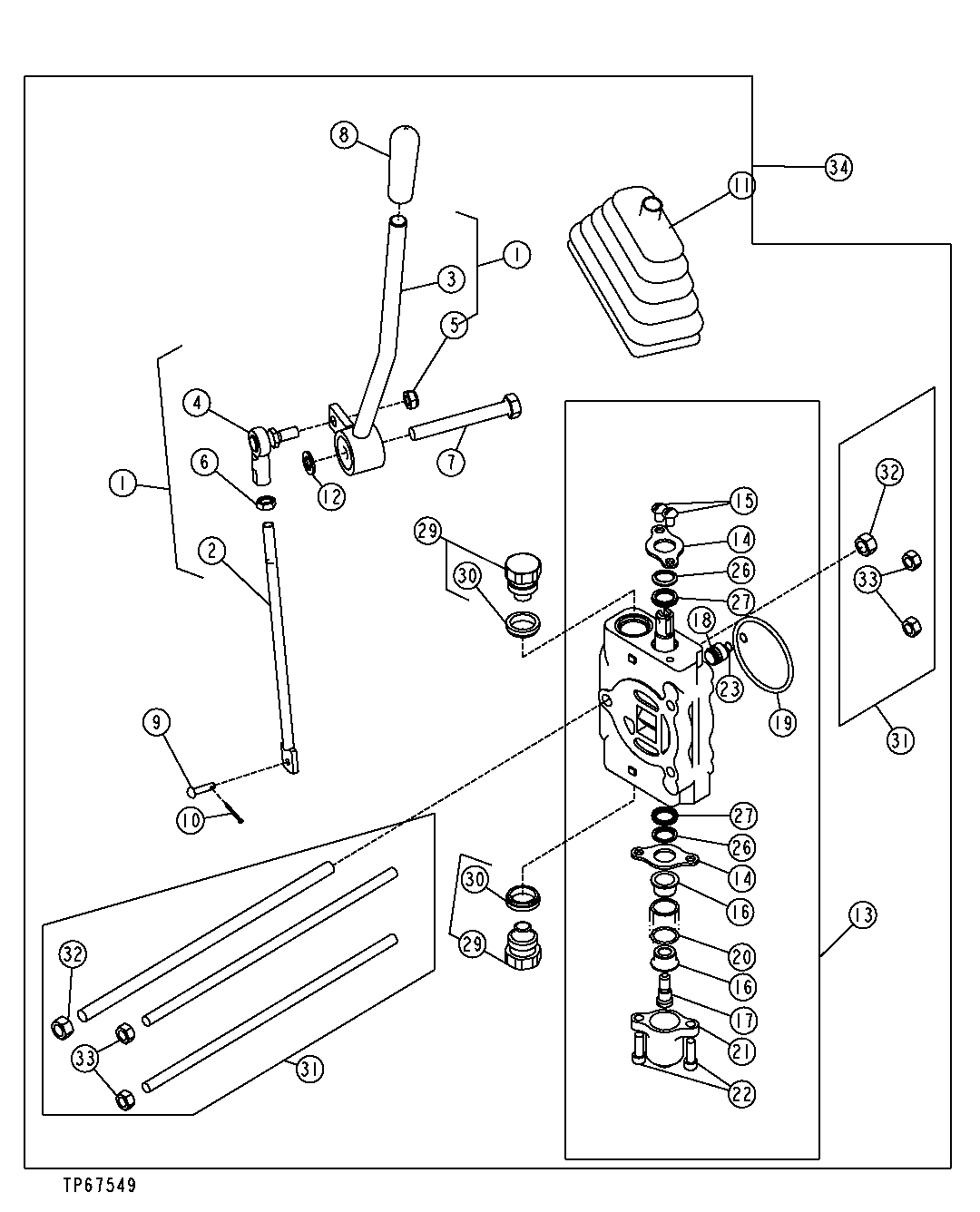

Auxiliary Valve with Linkage, Fifth Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT211121	1	Control	-
2	-	1	Part 2	(SUB AT211121)
3	-	1	Part 3	(SUB AT211121)
4	AT48548	1	Ball Joint	-
5	R11151	1	Lock Nut	-
6	14H882	1	Nut	5/16"
7	19M8081	1	Cap Screw	M10 X 80
8	T71570	1	Grip	-
9	T174528	1	Pin Fastener	-
10	11M7078	1	Cotter Pin	2 X 20 mm
11	AT140287	1	Boot	-
12	24M7096	1	Washer	10.500 X 18 X 1.600 mm
13	AT222119	1	Valve Stack	(WITHOUT FLOAT)
13	AT222097	1	Valve Stack	(WITH FLOAT) (NOT INCLUDED IN AT219741)
14	T76504	2	Plate	-
15	21H1352	2	Screw	1/4" X 3/8"
16	T76505	2	Round Retainer	-
17	T76507	1	Cap Screw	-
18	T76503	1	Poppet	-
19	L111836	1	O-Ring	-
20	T175732	1	Spring	-
21	T76508	1	Cap	-
22	19H2924	2	Screw	1/4" X 3/4"
23	T76509	1	Spring	-
24	AT220400	1	Seal Kit	(NOT ILLUSTRATED)
25	-	1	Part 26	(SUB AT220400)
26	-	2	Part 27	(WIPER), (SUB AT220400)
27	-	2	Part 28	(SPOOL), (SUB AT220400)
28	-	1	Part 29	(SUB AT220400)
29	AT221397	1	Pressure Relief Valve	(CIRCUIT RELIEFS) (MUST BE ORDERED SEPARATLY WILL NOT COME WITH AUXILIARY VALVE) (3450 PSI, 5 GPM)
29	AT224381	1	Pressure Relief Valve	(SUB FOR <service-part qty="1">AT211322</service-part>)(CIRCUIT RELIEFS) (MUST BE ORDERED SEPARATELY WILL NOT COME WITH AUXILIARY VALVE) (1900 PSI, 5 GPM)
29	AT321340	1	Flow Control Hyd. Valve	(SUB FOR <service-part qty="1">AT221396</service-part>, THIS APPLICATION)(CIRCUIT RELIEFS) (MUST BE ORDERED SEPARATELY WILL NOT COME WITH AUXILIARY VALVE) (3000 PSI, 16 GPM)
29	AT78527	2	Fitting Plug	-
30	T183756	1	Seal	(SUB FOR T126301)
31	AT219742	1	Tie Rod Assembly	INCLUDES (2) T459911, T459909, (4) 14H1042 AND (2) 14H1080
31	T459911	2	Tie Bar	-
31	T459909	1	Tie Bar	-
32	L111424	2	Nut	-
33	L111423	4	Nut	-
34	AT219741	1	Valve	(AUXILIARY CONTROL) (WITH LINKAGE) (WITHOUT FLOAT)

Auxiliary Valve with Linkage, Fifth Function

Нет текстового описания
