AUXILIARY VALVE (FOURTH FUNCTION)

AUXILIARY VALVE (FOURTH FUNCTION)

AUXILIARY VALVE (FOURTH FUNCTION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

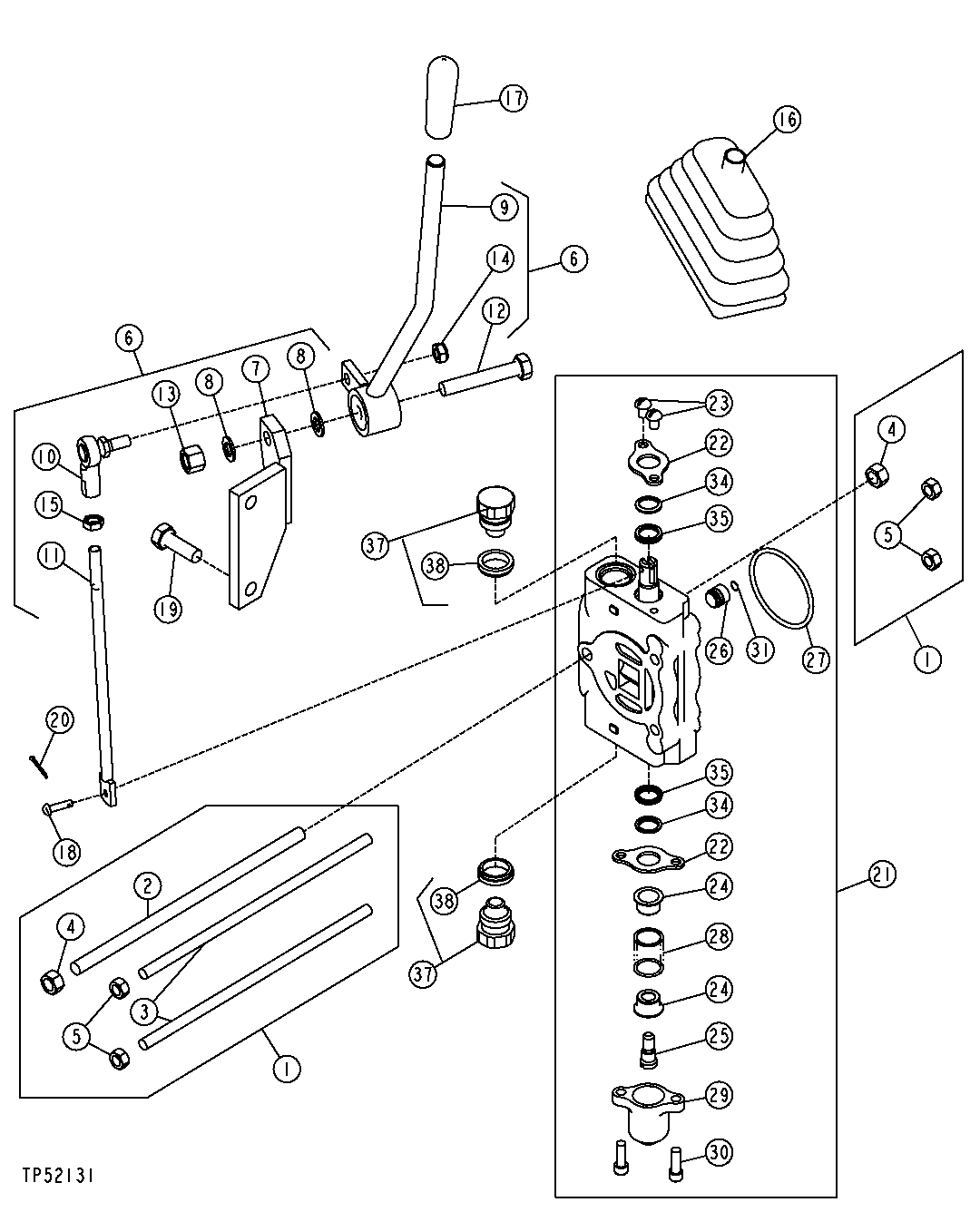

AUXILIARY VALVE (FOURTH FUNCTION)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT211314	1	Tie Rod Assembly	(FOURTH SECTION)
2	-	1	Part 2	(SUB AT211314)
3	-	2	Part 3	(SUB AT211314)
4	L111424	2	Nut	-
5	L111423	4	Nut	-
6	AT211021	1	Control	(AUXILIARY FOURTH FUNCTION)
7	-	1	Part 7	(SUB <service-part qty="1">AT211021</service-part>)(AUXILIARY LINKAGE LEVER)
8	24M7096	2	Washer	10.500 X 18 X 1.600 mm
9	-	1	Part 9	(SUB <service-part qty="1">AT211021</service-part>)(AUXILIARY FUNCTION)
10	AT48548	1	Ball Joint	(STUD)
11	-	1	Part 11	(SUB <service-part qty="1">AT211021</service-part>)(AUXILIARY LINKAGE)
12	19M8499	1	Cap Screw	M10 X 60
13	14M7517	1	Lock Nut	M10
14	R11151	1	Lock Nut	(ELASTIC INSERT)
15	14H882	1	Nut	5/16"
16	AT140287	1	Boot	-
17	T71570	1	Grip	(BLACK PVC)
18	T174528	1	Pin Fastener	(DRILLED)
19	19M7662	2	Cap Screw	M10 X 30
20	11M7078	1	Cotter Pin	2 X 20 mm
21	AT222097	1	Valve Stack	(AUXILIARY) (WITH FLOAT)(NOT INCLUDED IN <service-part>AT207568</service-part > CONTROL VALVE)
21	AT222119	1	Valve Stack	(AUXILIARY) (WITHOUT FLOAT)
22	T76504	2	Plate	-
23	21H1352	2	Screw	1/4" X 3/8"
24	T76505	2	Round Retainer	-
25	T76507	1	Cap Screw	-
26	T76503	1	Poppet	-
27	L111836	1	O-Ring	-
28	T175732	1	Spring	-
29	T76508	1	Cap	-
30	19H2924	2	Screw	1/4" X 3/4"
31	T76509	1	Spring	-
32	AT220400	1	Seal Kit	-
33	-	1	Part 34	(SUB AT220400)
34	-	2	Part 35	(SUB <service-part qty="1">AT220400</service-part>)(WIPER)
35	-	2	Part 36	(SUB <service-part qty="1">AT220400</service-part>)(SPOOL)
36	-	1	Part 37	(SUB AT220400)
37	AT78527	2	Fitting Plug	-
37	-	1	Part 39	(A) (ORDER <service-part qty="1">AT221397</service-part>)(NOT ILLUSTRATED) (CIRCUIT RELIEFS) (3450 PSI) (5 GALLON PER MINUTE)
37	-	1	Part 40	(A) (SUB FOR <service-part qty="1">AT221396</service-part>, THIS APPLICATION ) (ORDER <service-part qty="1">AT321340</service-part>)(NOT ILLUSTRATED) (CIRCUIT RELIEFS) (3000PSI) (16 GALLON PER MINUTE)<translation lang="fr_FR"> (3000PSI) (16 GALLON PER MINUTE)</translation>
37	-	1	Part 41	(A) (ORDER <service-part qty="1">AT224381</service-part> ) (SUB FOR <service-part qty="1">AT211322</service-part>)(NOT ILLUSTRATED) (CIRCUIT RELIEFS) (1900PSI) (5 GALLON PER MINUTE)
38	T183756	1	Seal	(SUB FOR T126301)
39	AT207568	1	Spool Valve	(EQUIPMENT FIELD)(AUXILIARY) (LEVER AND LINKAGE KIT WITHOUT FLOAT)
