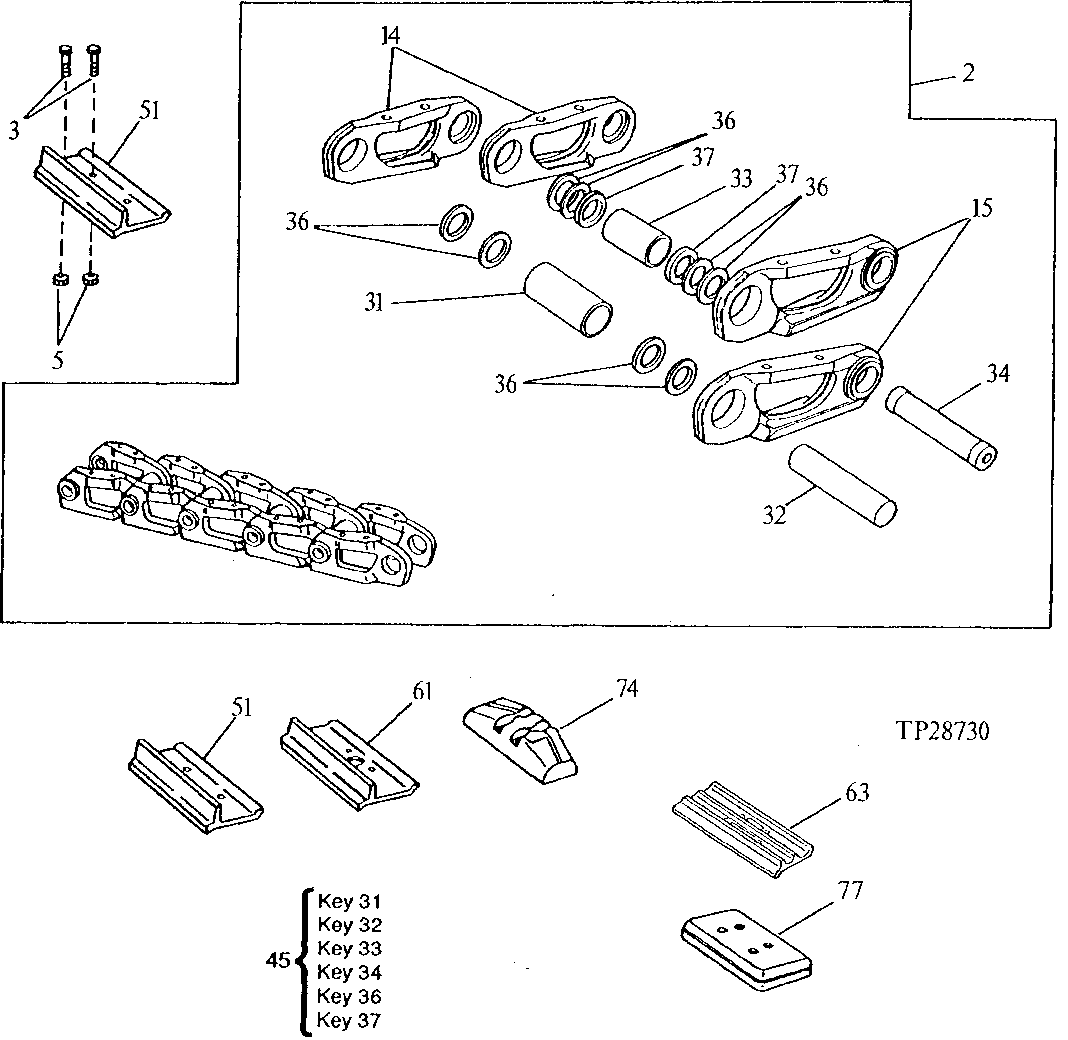

SEALED CHAIN 1/2", WITH MASTER PIN AND NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/16" CHAIN WITH SHOES)
2	AT148558	2	TRACK CHAIN W/O SHOES	(36L) (USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT74166, AT113079 AND AT113052)
2	AT113054	2	TRACK CHAIN W/O SHOES	(39L) (USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT81304, AT113077, AT113094, AT148572 AND AT148573)
2	AT104561	2	TRACK CHAIN W/O SHOES	(38L) (USE WITH SPROCKET T153045 OR T175962) (FOR RICE HARVESTERS, CAN BE USED FOR SMALL CRAWLERS BY ADDING OR DEDUCTING A LINK) (SUB FOR AT148572)
3	T74183	1	BOLT	(QUANTITY IS 144, 152 OR 156)
3	T80151	1	BOLT	(FOR USE WITH SELF CLEANING SHOE) (QUANTITY IS 144, 152 OR 156)
5	T74184	1	NUT	(QUANTITY IS 144, 152 OR 156)
14	T112081	1	NON-STRUTTED LINK-LH	L.H. (QUANTITY IS 36, 38 OR 39) (SUB FOR T75437)
15	T112080	1	NON-STRUTTED LINK-RH	R.H. (QUANTITY IS 36, 38 OR 39) (SUB FOR T75436)
31	T105116	1	Bushing	(QUANTITY IS 35, 37 OR 38) (SUB FOR T74182)
32	T74178	1	Track Pin	(QUANTITY IS 35, 37 OR 38)
33	T74177	1	Master Track Bushing	-
34	T74185	1	Master Track Pin	-
36	T105117	1	Spring Washer	(QUANTITY IS 144, 152 OR 156) (SUB FOR T74180)
37	T105131	2	Washer	(SUB FOR T74186)
45	AT104530	1	Pin & Bushing Kit	(SUB FOR AT75611) (INCLUDES (35) T105116, (144) T105117, (2) T105131, T74177, (35) T74178 AND T74185) (FOR 38L, ALSO ORDER (2) T105116, (2) T74178 AND (8) T105117) (FOR 39L, ALSO ORDER (3) T105116, (3) T74178 AND (12) T105117)
51	T112404	1	SINGLE BAR SHOE	406MM (16") (QUANTITY IS 36, 38 OR 39) (SUB FOR T75586)
51	T112405	1	SINGLE BAR SHOE	457MM (18") (QUANTITY IS 36, 38 OR 39) (SUB FOR T75507)
51	T112406	1	SINGLE BAR SHOE	610MM (24") (QUANTITY IS 36, 38 OR 39) (SUB FOR T106997)
61	T112400	1	OPEN CENTER 1 BAR SHOE	406MM (16") (QUANTITY IS 36, 38 OR 39) (SUB FOR T75591)
61	T112401	1	OPEN CENTER 1 BAR SHOE	457MM (18") (QUANTITY IS 36, 38 OR 39) (SUB FOR T75592)
61	T112402	1	OPEN CENTER 1 BAR SHOE	610MM (24") (QUANTITY IS 36, 38 OR 39) (SUB FOR T78331)
63	T75588	1	OPEN CENTER 3 BAR SHOE	355MM (14") (QUANTITY IS 36, 38 OR 39)
63	T24699	1	OPEN CENTER 3 BAR SHOE	406MM (16") (QUANTITY IS 36, 38 OR 39) - NLA
74	T106996	1	SELF CLEANING SHOE	610MM (24") (QUANTITY IS 36, 38 OR 39, (SUB FOR T80152)
77	-	1	Part 26	330MM (13"), AT125940 NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365 PHONE 800-289-1456, QUANTITY IS 37 OR 39, (SUB FOR AT22880)

SEALED CHAIN 1/2", WITH MASTER PIN AND NON-STRUTTED LINKS STD (36L) AND LT (39L) [01B06]

Нет текстового описания
