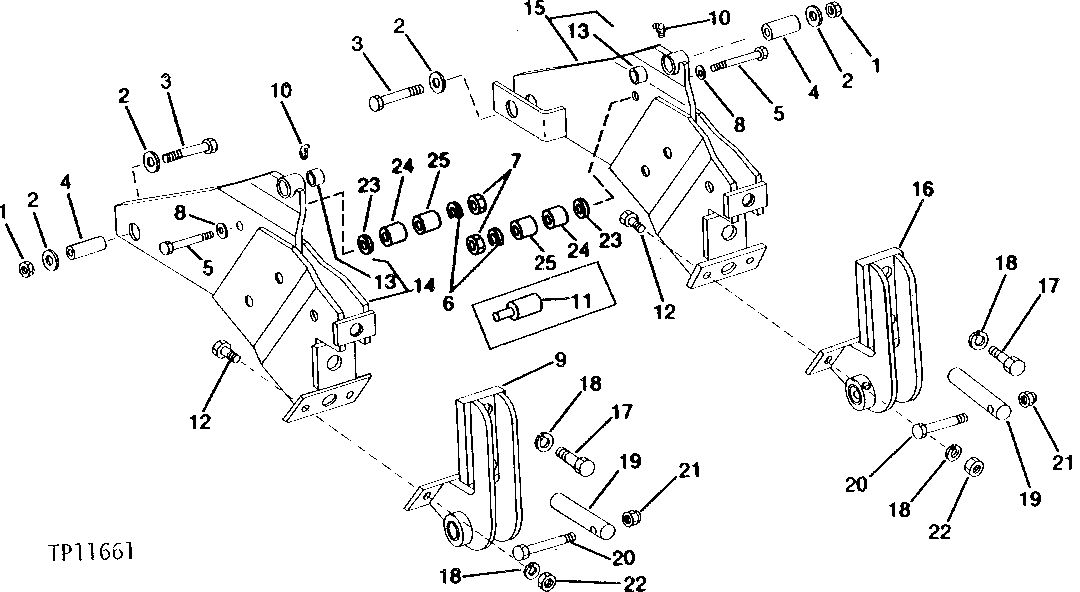

MOUNTING FRAMES AND PIVOT ASSEMBLIES (6405 BULLDOZER) [02C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T44249	2	LOCK NUT	-
2	T47806	4	Washer	(SUB FOR H98316 AND R30399, THIS APPLICATION)
3	19H3313	2	Cap Screw	1" X 4-1/2"
4	T47054	2	BUSHING	-
5	19H3136	2	Cap Screw	1/2" X 5-3/4"
6	12H301	2	Lock Washer	1/2"
7	14H1040	2	Nut	1/2"
8	T18407	2	WASHER	-
9	AU14504	1	PIVOT	R.H.
10	JD7760	2	Lubrication Fitting	1/8"
11	U16921	2	BUSHING	(SUB (2) T18407, (2) 28H1600 AND (2) 28H1788)
12	19H2717	4	Cap Screw	3/4" X 1-3/4"
13	U10052	2	BUSHING	-
14	AT104931	1	FRAME	MOUNTING, R.H. (LONG TRACK INSIDE HYDRAULIC DOZER)
14	AT81319	1	FRAME	MOUNTING, R.H. (LONG TRACK)
14	BU10740	1	FRAME	MOUNTING, R.H. (WITHOUT REAR MOUNTED EQUIPMENT) (STANDARD TRACK)
14	BU40076	1	FRAME	MOUNTING, R.H. (WITH REAR MOUNTED EQUIPMENT) (STANDARD TRACK)
15	BU10741	1	FRAME	MOUNTING, L.H. (WITHOUT REAR MOUNTED EQUIPMENT) (STANDARD TRACK)
15	BU40077	1	FRAME	MOUNTING, L.H. (WITH REAR MOUNTED EQUIPMENT) (STANDARD TRACK)
15	AT81320	1	FRAME	MOUNTING, L.H. (LONG TRACK)
15	AT104932	1	FRAME	MOUNTING, L.H. (LONG TRACK INSIDE HYDRAULIC DOZER)
15	28H1600	2	Spacer	0.546" X 0.840" X 1", (INSIDE HYDRAULIC DOZER MOUNTING)
15	28H1788	2	BUSHING	0.546" X 0.840" X 3-3/16", (INSIDE HYDRAULIC DOZER MOUNTING)
16	AU13968	1	PIVOT	L.H.
17	19H2431	2	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
18	12H236	6	Lock Washer	3/4"
19	U41528	2	Pin Fastener	-
20	19H3550	2	Cap Screw	1/2" X 4"
21	K40014	2	Lock Nut	-
22	14H794	4	Nut	3/4"
23	T18407	2	WASHER	-
24	28H1600	2	Spacer	0.546" X 0.840" X 1"
25	28H1788	2	BUSHING	0.546" X 0.840" X 3-3/16"

MOUNTING FRAMES AND PIVOT ASSEMBLIES (6405 BULLDOZER) [02C01]
