Открытый узел

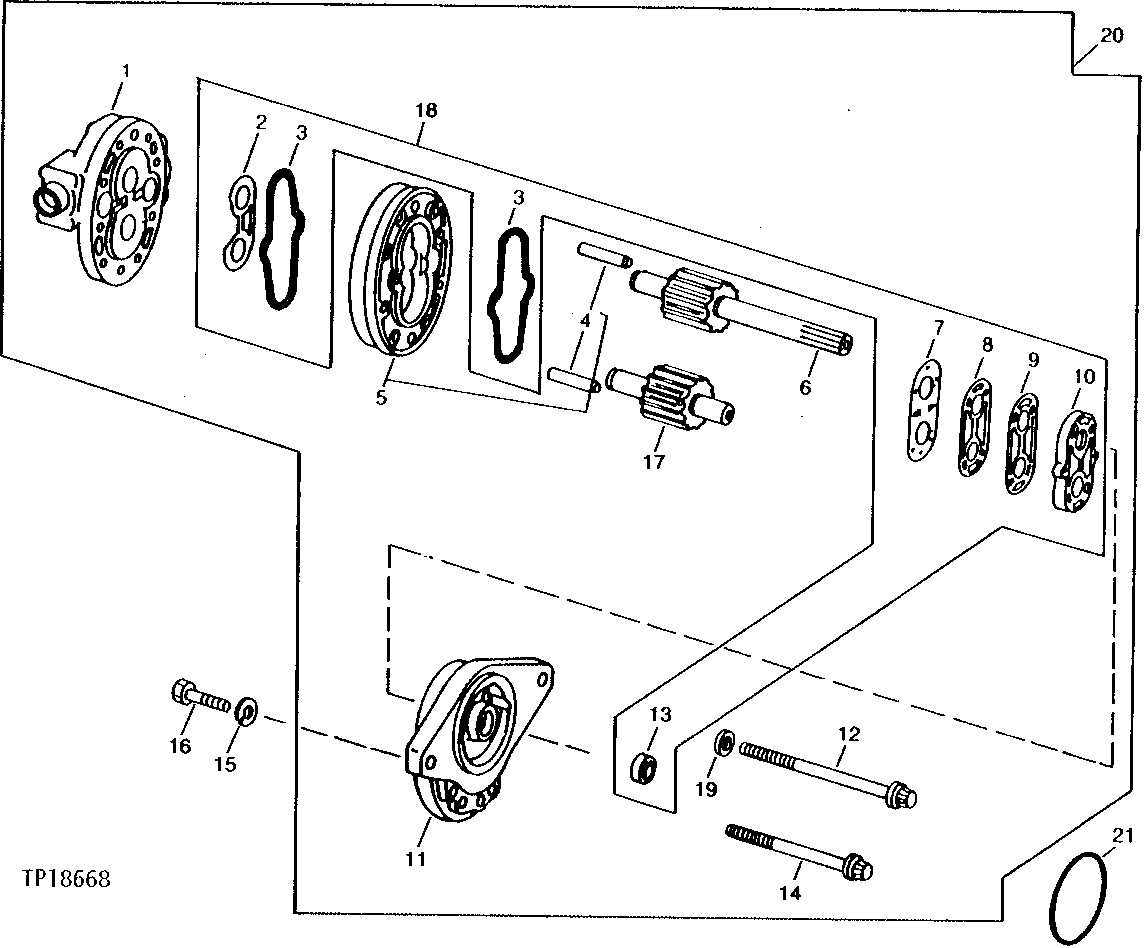

DOZER HYDRAULIC PUMP [02A17]

DOZER HYDRAULIC PUMP [02A17]

DOZER HYDRAULIC PUMP [02A17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

DOZER HYDRAULIC PUMP [02A17]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	29.2 CU CM (1.78 CU. IN.) (USE WITH LONG TRACK) ( AT75804 USE IF AVAILABLE)
2	-	2	Part 2	( T77174 USE IF AVAILABLE)
3	T40419	2	PACKING	-
4	T19034	2	Dowel Pin	-
5	AT113258	1	HOUSING	(WITH 33.6 CU.CM(2.05 CU.IN. PUMP)
5	AT113256	1	HOUSING	(WITH 42.8 CU.CM.(2.61 CU.IN. PUMP)
5	-	1	Part 7	(WITH 29.2 CU.CM.(1.76 CU.IN. PUMP) ( AT113257 USE IF AVAILABLE)
5	AT113259	1	HOUSING	(WITH 38.2 CU.CM(2.33 CU.IN. PUMP)
6	-	1	Part 9	(DRIVE) (WITH 29.2 CU.CM.(1.78 CU.IN. PUMP) ( T112394 USE IF AVAILABLE)
6	T112396	1	GEAR	(DRIVE) (WITH 33.6 CU.CM.(2.05 CU.IN. PUMP)
6	T112393	1	GEAR	(DRIVE) (WITH 42.8 CU.CM.(2.61 CU.IN. PUMP)
6	T112398	1	GEAR	(DRIVE) (WITH 38.2 CU.CM.(2.33 CU.IN. PUMP)
7	-	1	Part 13	(SUB AT75805)
8	-	1	Part 14	(SUB AT75805)
9	-	1	Part 15	(SUB AT75805)
10	-	1	Part 16	(SUB AT75805)
11	-	1	Part 17	( AT75803 USE IF AVAILABLE)
12	W14199	4	Screw	(WITH 38.2 CU.CM.(2.33 CU.IN. PUMP) (WITH 42.8 CU.CM.(2.61 CU.IN. PUMP)
12	U13341	4	Screw	(WITH 29.2 CU.CM.(1.78 CU.IN. PUMP) (WITH 33.6 CU.CM.(2.05 CU.IN. PUMP)
13	AT59652	1	SEAL	-
14	-	4	Part 21	(WITH 38.2 CU.CM.(2.33 CU.IN. PUMP) (WITH 33.6 CU.CM.(2.05 CU.IN. PUMP) ( H29856 NO LONGER AVAILABLE)
14	U13341	4	Screw	(WITH 42.8 CU.CM.(2.61 CU.IN. PUMP)
14	-	4	Part 23	(WITH 29.2 CU.CM.(1.78 CU.IN. PUMP) ( U13342 NO LONGER AVAILABLE)
15	12H301	2	Lock Washer	-
16	19H2993	2	Cap Screw	-
17	T112392	1	GEAR	(IDLER) (WITH 42.8CU.CM.(2.61 CU.IN. PUMP)
17	T112413	1	GEAR	(IDLER) (WITH 38.2 CU.CM.(2.33 CU.IN. PUMP)
17	T112397	1	GEAR	(IDLER) (WITH 33.6 CU.CM.(2.05 CU.IN. PUMP)
17	-	1	Part 26	(IDLER) (WITH 29.2 CU.CM.(1.78 CU.IN. PUMP) ( T112395 USE IF AVAILABLE)
18	AT75805	1	SEAL KIT	-
19	R74553	1	Washer	-
20	AT81405	1	PUMP	(29.2 CU.CM.(1.78CU.IN.) (USE WITH LONG TRACK)
20	AT81402	1	PUMP	(33.6 CU.CM.(2.05 CU.IN.) (USE WITH STANDARD AND WIDE TRACK)
20	AT81404	1	PUMP	(42.8 CU.CM.(2.61 CU.IN.) (USE WITH STANDARD AND WIDE TRACK) (USE WITH AUXILIARY FUNCTIONS OR BACKHOE)
20	AT81406	1	PUMP	(38.2 CU.CM.(2.33 CU.IN.) (USE WITH LONG TRACK) (USE WITH AUXILIARY FUNCTIONS OR BACKHOE)
21	R34317	1	PACKING	-
