Severe Duty Plate Lip Bucket Tooth Assembly

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	EV51PN	1	Pin Fastener	Use With Super V Style Tooth Not Illustrated
2	EX47VPN	1	Pin	Esco Not Illustrated
2	TP475HD	1	Pin Fastener	-
3	EV5857A-V51	1	Bucket Tooth Adapter	Use With Super V Style Tooth Not Illustrated
3	-	1	Part 17	Esco Not Illustrated, EX5857-47V NLA
3	T303X475	1	Bucket Tooth Adapter	-
6	EX47VPL	1	Plug	Not Illustrated
1A	-	1	Part 1	Fanggs™ Tooth, ( AT163558 NLA)
1B	-	1	Part 2	Standard Tooth, (AT163559 NLA)
1C	-	1	Part 3	Twin Tiger Tooth, (AT163563 NLA)
1D	-	1	Part 4	Flare Tooth, (AT163562 NLA)
1E	-	1	Part 5	Abrasion Panel Tooth, (AT163561 NOT USED THIS APPL.
1F	-	1	Part 6	Tiger Tooth, (AT163560 NLA)
1G	-	1	Part 7	Esco Standard Tooth Not Illustrated, (AT163564 NLA)
1H	-	1	Part 8	Esco Twin Tiger Tooth Not Illustrated, (AT163567 NLA)
1I	-	1	Part 9	Esco Flare Tooth Not Illustrated, (AT163566 NOT USED THIS APPL
1J	-	1	Part 10	Esco Tiger Tooth Not Illustrated, (AT163565 NLA)
1K	-	1	Part 11	Super V-Style Tooth Not Illustrated, (AT199375 NLA)
1L	-	1	Part 12	Caterpillar Style Replacement Tooth Not Illustrated, (AT198439 NLA)
4A	TF475	1	Tooth	Fanggs™
4B	TX475	1	Tooth	Standard
4C	TX475WT	1	Tooth	Twin Tiger
4D	TX475F	1	Tooth	Flare
4E	-	1	Part 23	Abrasion Panel, (TX475AP NLA)
4F	TT475	1	Tooth	Tiger
4G	-	1	Part 25	Esco Standard Not Illustrated, EX47SYL NLA
4H	EX47TVIP	1	Tooth	Esco Twin Tiger Not Illustrated
4I	EX47S9F	1	Tooth	Esco Flare Not Illustrated
4J	EX47VIP	1	Tooth	Esco Tiger Not Illustrated
4K	EV51SYL	1	Tooth	Super V-Style Not Illustrated

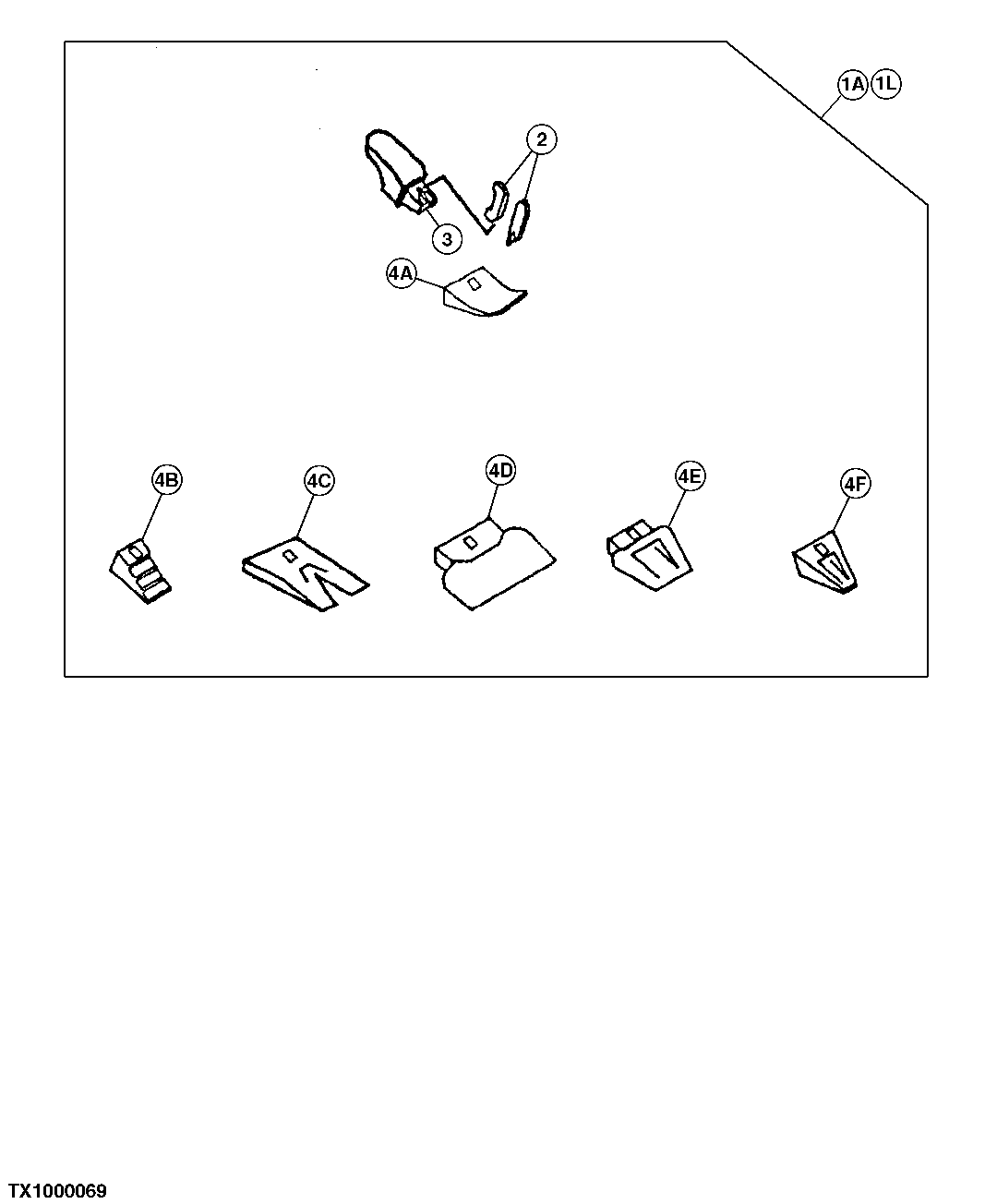

Severe Duty Plate Lip Bucket Tooth Assembly

Нет текстового описания
