Pilot Lines (Hydraulic Tank To Filter and Pump)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4630525	1	Filter Element	-
0	4629717	1	Filter	Components On Separate Page, ALSO ORDER 9228867
1	-	2	Part 3	J271000 NLA
1	19M7668	2	Cap Screw	M10 X 100, SUB FOR J901000
1	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
2	A852344	2	Elbow Fitting	-
2	4506418	2	O-Ring	-
3	A852122	2	Adapter Fitting	-
3	M800650	2	Packing	SUB FOR 957366
4	A852144	2	Adapter Fitting	-
4	4506418	2	O-Ring	-
6	4322485	1	Hydraulic Hose	-
7	AH79175	3	Clip	SUB FOR 4190272
8	-	3	Part 14	J271025 NLA
8	24M7346	3	Washer	11 X 20 X 2 mm, SUB FOR J222010
8	19M7402	3	Cap Screw	M10 X 25, SUB FOR J901025
10	4397471	1	Hydraulic Hose	SUB FOR 4270458
11	R73291	1	Clamp	SUB FOR 4190262
12	-	1	Part 19	J271025 NLA
12	19M7402	1	Cap Screw	M10 X 25, SUB FOR J901025
12	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
14	4448867	1	Hydraulic Hose	SUB FOR 4487224
16	4618606	1	Hose	-
50	9228867	1	Shim	Pilot Pressure Regulating Valve Shim Kit Not Included With Filter Not Illustrated, INCLUDES 4606473, 4487297, 4601120, SUB FOR 4293211
50	4606473	2	Shim	Not Illustrated, SUB FOR 4309836
50	4487297	2	Shim	Not Illustrated, SUB FOR 4309837
50	4601120	2	Shim	Not Illustrated, SUB FOR 4309838

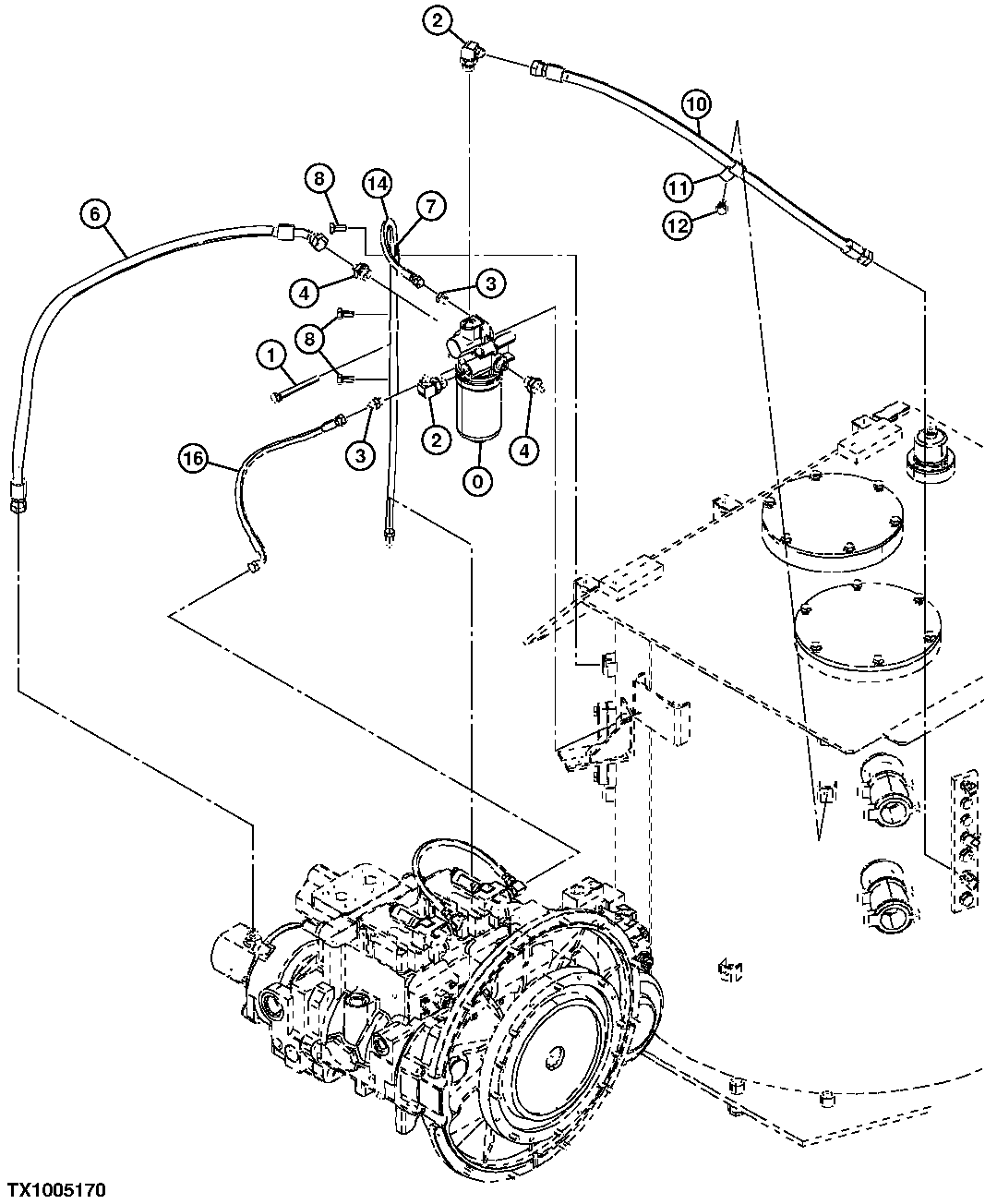

Pilot Lines (Hydraulic Tank To Filter and Pump)
