Pilot Lines From Control Valve To Reservoir and Center Joint

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	M800650	2	Packing	SUB FOR 957366
0	A852222	2	Union Fitting	-
1	M800650	2	Packing	SUB FOR 957366
1	A852122	2	Adapter Fitting	-
2	4634388	1	Hydraulic Hose	-
3	4634390	1	Hydraulic Hose	-
6	A852223	1	Elbow Fitting	-
6	M800650	1	Packing	SUB FOR 957366
7	-	1	Part 9	9261223 NLA
7	4634389	1	Hydraulic Hose	-
7	-	1	Part 11	MAKE FROM E90991, CTL 600 MM
8	XCL-19	1	Hose Clamp	SUB FOR 4192035
9	-	1	Part 13	J271025 NLA
9	19M7402	1	Cap Screw	M10 X 25, SUB FOR J901025
9	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
14	A852234	1	Elbow Fitting	-
14	CH11570	1	O-Ring	SUB FOR 4509180
15	A852333	1	Elbow Fitting	-
15	CH11570	1	O-Ring	SUB FOR 4509180
16	4634354	1	Hydraulic Hose	-
17	4651397	1	Hydraulic Hose	-
19	A852422	1	Tee Fitting	-
19	M800650	1	Packing	SUB FOR 957366
20	4154670	1	Elbow Fitting	SUB FOR A852322
20	M800650	1	Packing	SUB FOR 957366
21	4651399	1	Hydraulic Hose	-
22	-	1	Part 27	-
22	4638242	1	Hydraulic Hose	-
22	-	1	Part 29	MAKE FROM E90991, CTL 600 MM
45	A852122	1	Adapter Fitting	-
45	M800650	1	Packing	SUB FOR 957366
46	FYD60007017	1	Hose	SUB FOR 4680164 AND 4486003
54	4208479	1	Clamp	-
55	-	1	Part 34	J271025 NLA
55	19M7402	1	Cap Screw	M10 X 25, SUB FOR J901025
55	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
57	4167524	1	Isolator	SUB FOR 4326809
58	H77698	2	Tie Band	SUB FOR 4055312

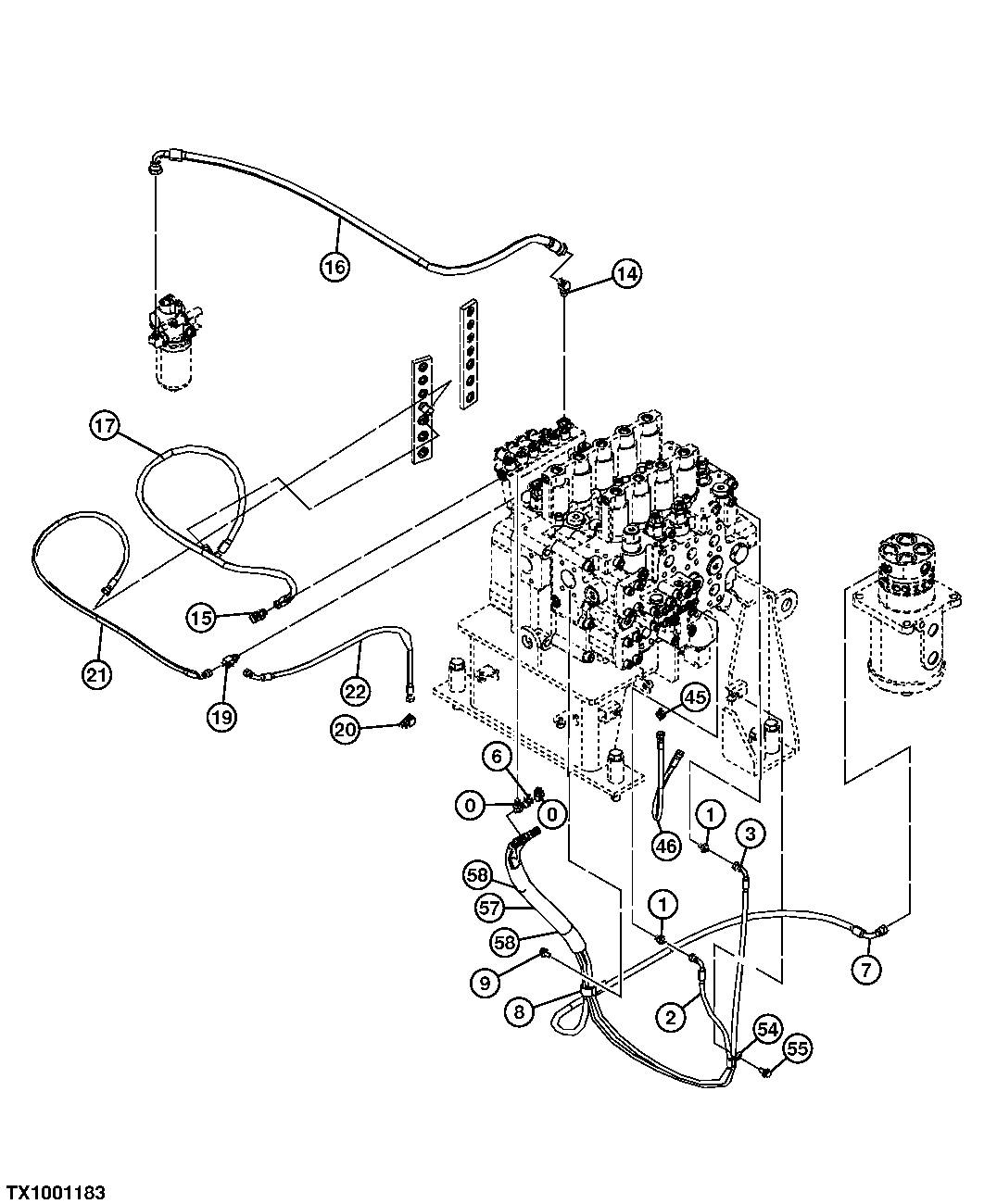

Pilot Lines From Control Valve To Reservoir and Center Joint
