General Purpose Bucket For Use w/ Short Arm (Also Order Bucket Teeth)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3038818	1	Boss	(SUB FOR AT131625)
5	4179110	2	Pin	(SUB FOR TH103520)
6	AT131816	7	Washer	1 mm
7	4207194	2	Shim	0.5 mm, (SUB FOR AT131815)
8	AT131814	1	Plate	-
9	19H2706	4	Cap Screw	5/8" X 2"
10	12H294	4	Lock Washer	5/8"
11	AT128461	2	Bushing	-
13	CF609726	1	Pivot	(Dealer Order Directly From Woods-Central Fabricators) Bucket Ear Blank Assembly
14	300324	2	Plate	(Dealer Order Directly From Woods-Central Fabricators) (RH) (LH)
15	AT159362	1	Cutting Edge	(CUT TO LENGTH)
16	300327	1	Vertical Cutter	(Dealer Order Directly From Woods-Central Fabricators) Upper RH Side Cutter
17	300328	1	Vertical Cutter	(Dealer Order Directly From Woods-Central Fabricators) LH Upper Side Cutter
18	311080	1	Vertical Cutter	(Dealer Order Directly From Woods-Central Fabricators) Cutter Insert, (LH)
19	311079	1	Vertical Cutter	(Dealer Order Directly From Woods-Central Fabricators) Cutter Insert, (RH)
20	611803	1	Moldboard	(Dealer Order Directly From Woods-Central Fabricators)
21	-	1	Part 17	-
22	-	1	Part 18	-
23	09H1770	6	Bolt	7/8" X 2-1/2"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
26	4205109	3	Bushing	(SUB FOR AT131768)
28	309972	2	Bar	(Dealer Order Directly From Woods-Central Fabricators) Wear
29	-	1	Part 24	Wear Shroud
30	-	1	Part 25	Wear Shroud
31	14H1044	6	Nut	7/8"
39	T145372	1	Label	Not Illustrated
40	-	1	Part 28	84 in. 5.0 yd³, Requires 7 Teeth For Use With 9 ft 6 in. Short Arm Only, (AT163674 NLA) (INCLUDES T145372) (WHOLE GOODS)
90	-	1	Part 29	Side Cutter Kit Woods-Central Fabricators Part No. C20338, (WHOLE GOODS) (AT131080 NLA)
91	-	1	Part 30	Edge Protector Kit Woods-Central Fabricators Part No. C28357, (WHOLE GOODS) (AT167874 NLA)

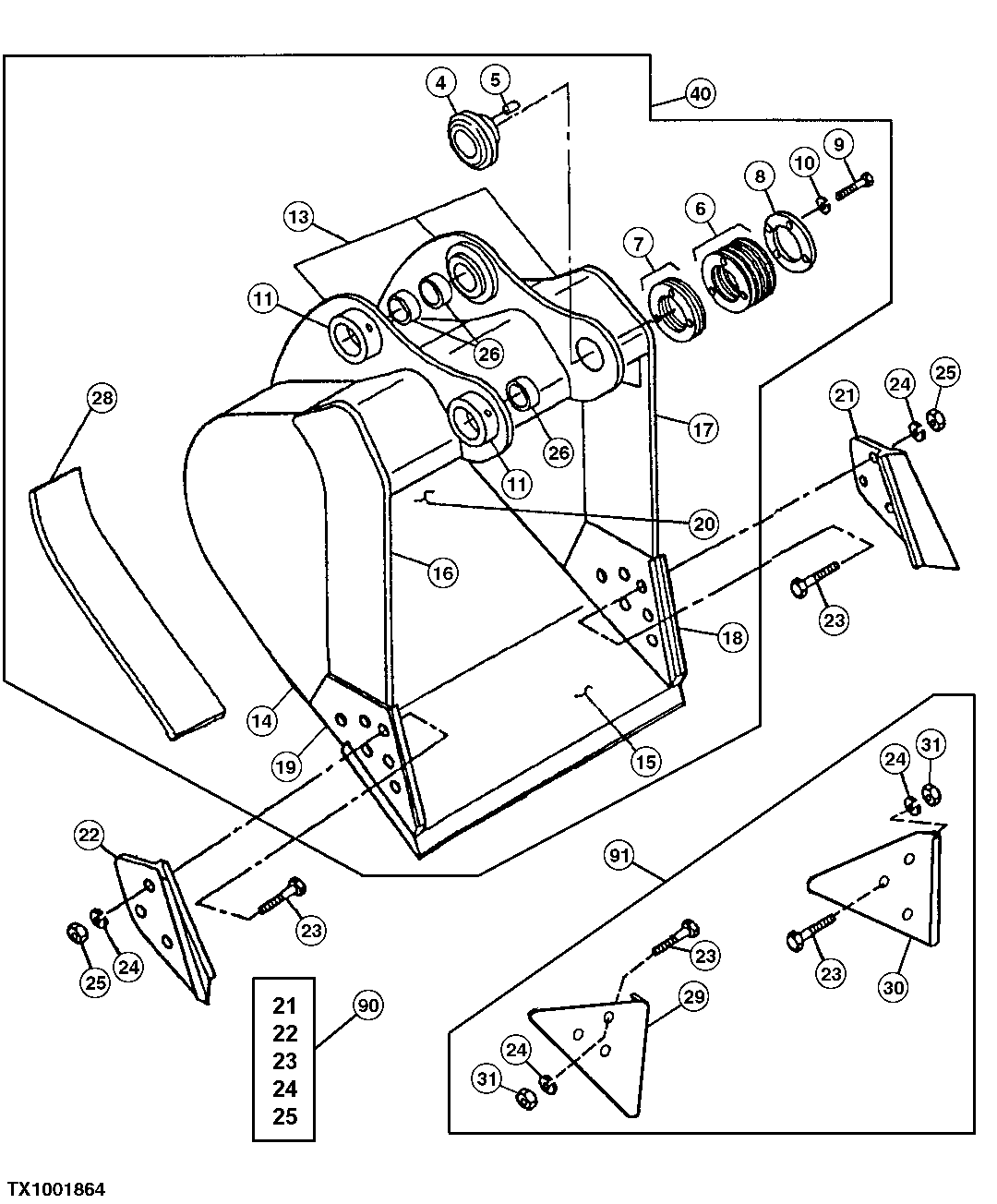

General Purpose Bucket For Use w/ Short Arm (Also Order Bucket Teeth)
