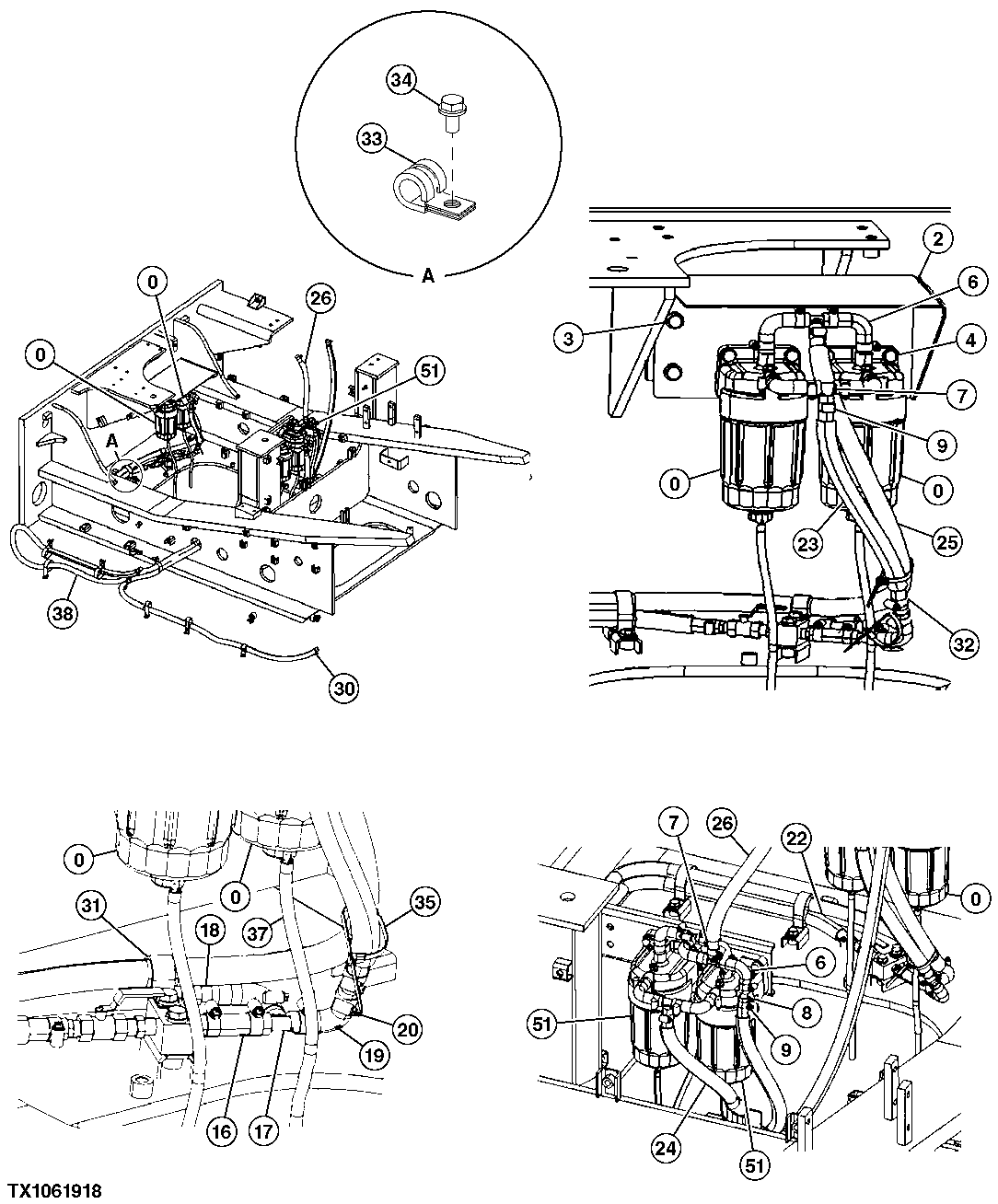

Fuel Prefilter Field Install Option (Non Standard Equipment) (913459 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4679165	2	Fuel Filter	Additional Prefilter Components On Separate Page
2	8117420	1	Cover	-
3	19M8011	2	Cap Screw	M12 X 30, SUB FOR J901230
3	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222012
3	-	2	Part 3	J271230 NLA
4	-	4	Part 6	J271045 NLA
4	19M7572	4	Cap Screw	M10 X 45, SUB FOR J901045
4	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222012
6	4679166	6	Pipe Elbow	-
7	9768265	3	Pipe	-
8	4679167	1	Fitting	-
9	FF500010	15	Hose Clamp	SUB FOR 4514699
16	4690092	1	Hose	-
17	9768265	1	Pipe	-
18	4679167	2	Fitting	-
19	4679166	2	Pipe Elbow	-
20	FF500010	9	Hose Clamp	SUB FOR 4514699
22	-	1	Part 18	9285854 NLA
22	4679238	1	Hose	-
22	4679239	1	Hose Guard	-
23	-	1	Part 23	4705656 NLA, MF TY26191, CTL 250 MM
23	-	1	Part 21	9295158 NLA
23	4705655	1	Hose	-
24	-	1	Part 24	9295165 NLA
24	4690108	1	Hose	-
24	-	1	Part 26	4690109 NLA, MF TY26191, CTL 2450 MM
25	-	1	Part 27	9295178 NLA
25	4690110	1	Hose	-
25	-	1	Part 29	4690111 NLA, MF TY26191, CTL 3000 MM
26	-	1	Part 30	9295157 NLA
26	4690096	1	Hose	-
26	-	1	Part 32	4690098 NLA, MF TY26191, CTL 300 MM
30	FF500010	1	Hose Clamp	SUB FOR 4514699
31	XCL-19	1	Hose Clamp	SUB FOR 4192035
32	R50454	1	Clamp	SUB FOR 4411911
33	R134002	6	Clamp	SUB FOR 4193816
34	-	6	Part 37	J271025 NLA
34	19M7402	6	Cap Screw	M10 X 25, SUB FOR J901025
34	24M7346	6	Washer	11 X 20 X 2 mm, SUB FOR J222010
35	4055312	2	Clip	-
37	TY22324	2	Bulk Hose	SUB FOR 4677530
38	-	1	Part 42	9264223 NLA, MFTY22553, CTL 4050 MM
38	4657171	1	Tube	-
51	4679165	2	Fuel Filter	Components On Separate Page Existing Prefilter

Fuel Prefilter Field Install Option (Non Standard Equipment) (913459 - )

Нет текстового описания
