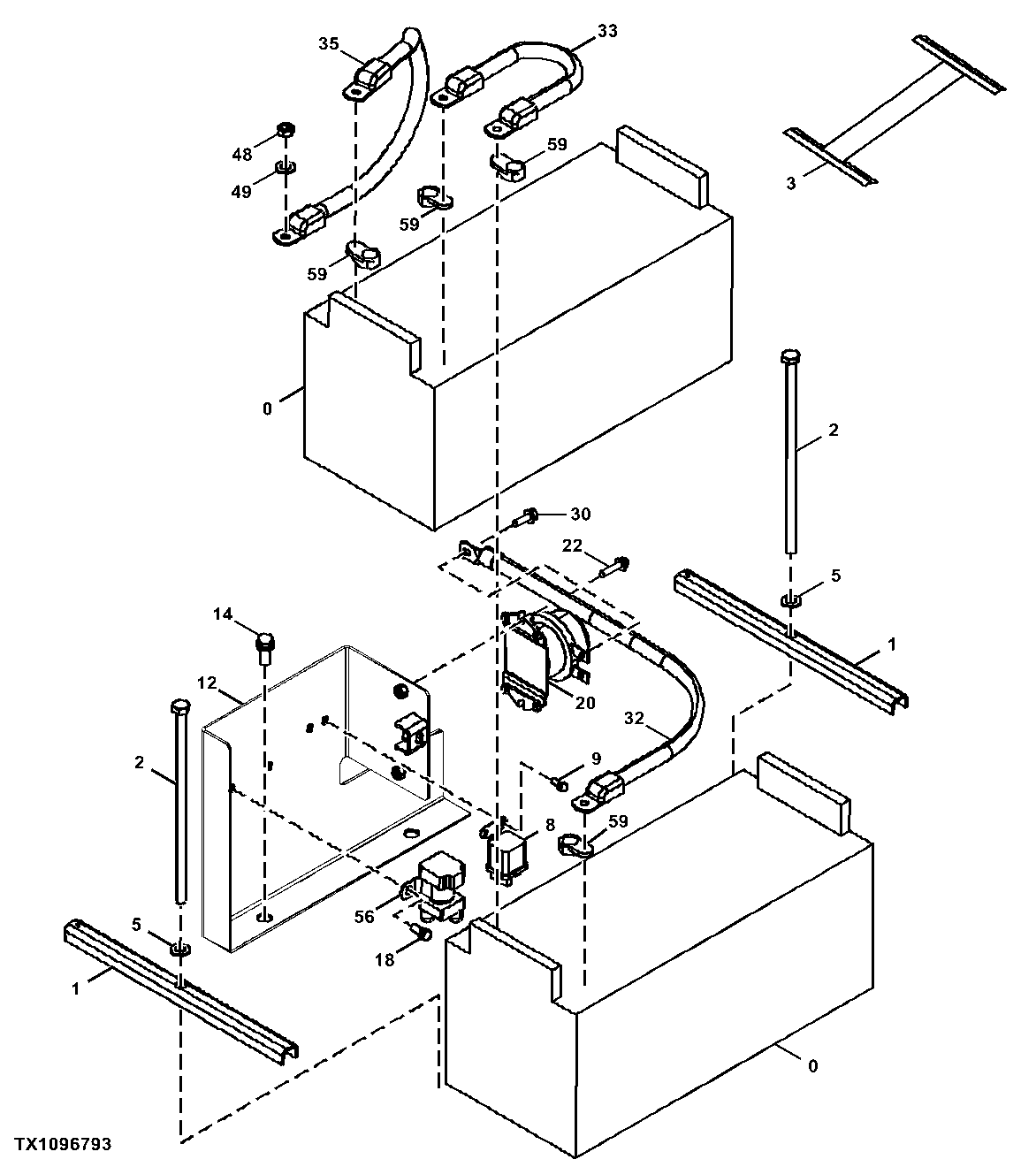

Battery and Battery Cables ( - 913536)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	T356866	2	Bracket	Not Illustrated
0	TY23020B	2	Wet Charged Battery	SUB FOR 4192421 AND TY25882, ALSO ORDER (2) T356866
1	4145156	2	Holder	-
2	4206101	2	Bolt	-
3	AT219489	1	Support	USE WITH TY25882
5	24M7047	2	Washer	13 X 24 X 2.500 mm, SUB FOR A590112
8	8944607061	1	Relay	SUB FOR 4654039 OR 8944607060
9	-	1	Part 8	J260616 NLA
9	19M7560	1	Cap Screw	M6 X 16, SUB FOR J900616
9	24M7054	1	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
12	8099547	1	Bracket	-
14	-	2	Part 12	J271230 NLA
14	19M8011	2	Cap Screw	M12 X 30, SUB FOR J901230
14	24M7345	2	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
18	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
18	-	2	Part 15	J260820 NLA
18	19M7881	2	Screw	M8 X 20, SUB FOR J900820 OR 19M7139
20	4255762	1	Relay	Battery, SUB FOR 8943795431
22	-	2	Part 19	J260830 NLA
22	19M7288	2	Cap Screw	M8 X 30, SUB FOR J900830
22	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
30	19M7881	1	Screw	M8 X 20, SUB FOR J900820 OR 19M7139
32	4673485	1	Wiring Harness	SUB FOR 4605567
33	4294694	1	Wiring Harness	-
35	4605531	1	Wiring Harness	-
48	14M7274	1	Nut	M10, SUB FOR J950010
49	24M7028	1	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
56	1825530391	1	Relay	Starter, SUB FOR 4279835
56	8980056311	1	Relay	Starter, SUB FOR 8980056310 AND 4681233
57	4315323	1	Fuse	45 A, Fusible Link Not Illustrated
58	4315324	1	Link	75 A, Fusible Link Not Illustrated
59	AT219485	4	Elec. Connector Terminal	-
