Auxiliary Travel Pilot Control Valve and Pedals

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9216905	1	Valve	-
1	8101299	1	Bracket	-
2	-	3	Part 3	(J271035 NLA)
2	19M7550	3	Cap Screw	M10 X 35, (SUB FOR J901035)
2	24M7346	3	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
3	4317640	1	Bolt	-
4	14M7273	1	Nut	M8, (SUB FOR M500807)
6	-	1	Part 8	(SUB 8106893, 9766166 AND 4660755) (8101451 NLA)
6	8106893	1	Bracket	-
7	-	3	Part 10	(J271025 NLA)
7	19M7402	3	Cap Screw	M10 X 25, (SUB FOR J901025)
7	24M7346	3	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
8	-	1	Part 13	(SUB 9766166, 8106893 AND 4660755) (9765444 NLA)
8	9766166	1	Stop	-
9	4279604	1	Spring	-
10	4287795	1	Pin	-
11	11M7080	1	Cotter Pin	2.500 X 16 mm, (SUB FOR A763016)
12	24M7028	1	Washer	10.500 X 20 X 2 mm, (SUB FOR A590110)
15	1033219	1	Pedal	-
16	9765447	1	Bracket	-
17	-	2	Part 21	(J260816 NLA)
17	19M7162	2	Cap Screw	M8 X 16, (SUB FOR J900816)
17	24M7055	2	Washer	8.400 X 16 X 1.600 mm, (SUB FOR A590108)
18	-	1	Part 24	(SUB 4660755, 8106893 AND 9766166) (4647334 NLA)
18	4660755	1	Plate	-
19	-	2	Part 26	(J260835 NLA)
19	19M7298	2	Cap Screw	M8 X 35, (SUB FOR J900835)
19	24M7055	2	Washer	8.400 X 16 X 1.600 mm, (SUB FOR A590108)
22	19M7358	2	Cap Screw	M10 X 40, (SUB FOR J901040)
23	24M7028	2	Washer	10.500 X 20 X 2 mm, (SUB FOR A590110)
24	12M7066	2	Lock Washer	10 mm, (SUB FOR A590910)
25	3106855	1	Pedal	-
27	4658295	2	Isolator	-

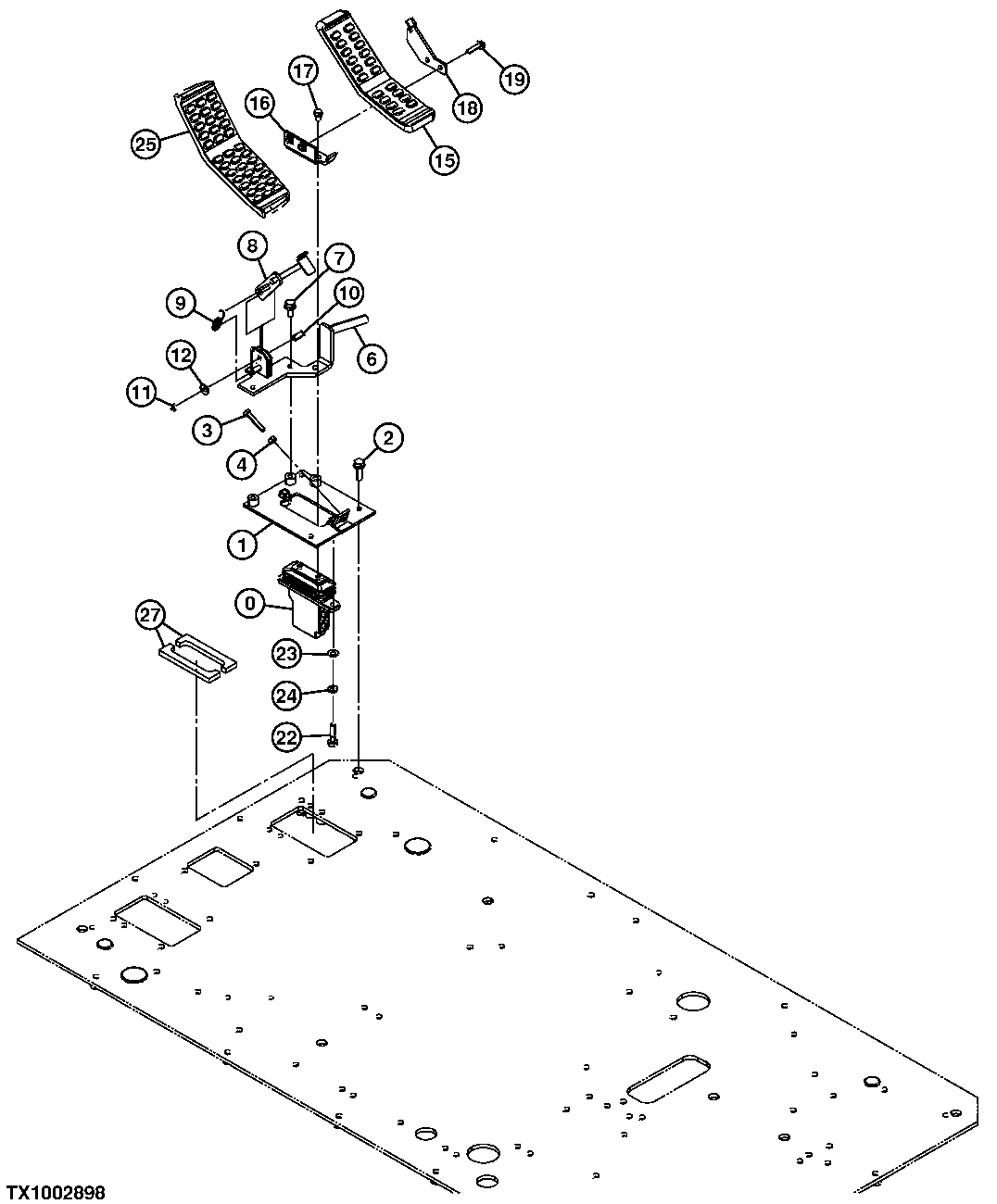

Auxiliary Travel Pilot Control Valve and Pedals
