Открытый узел

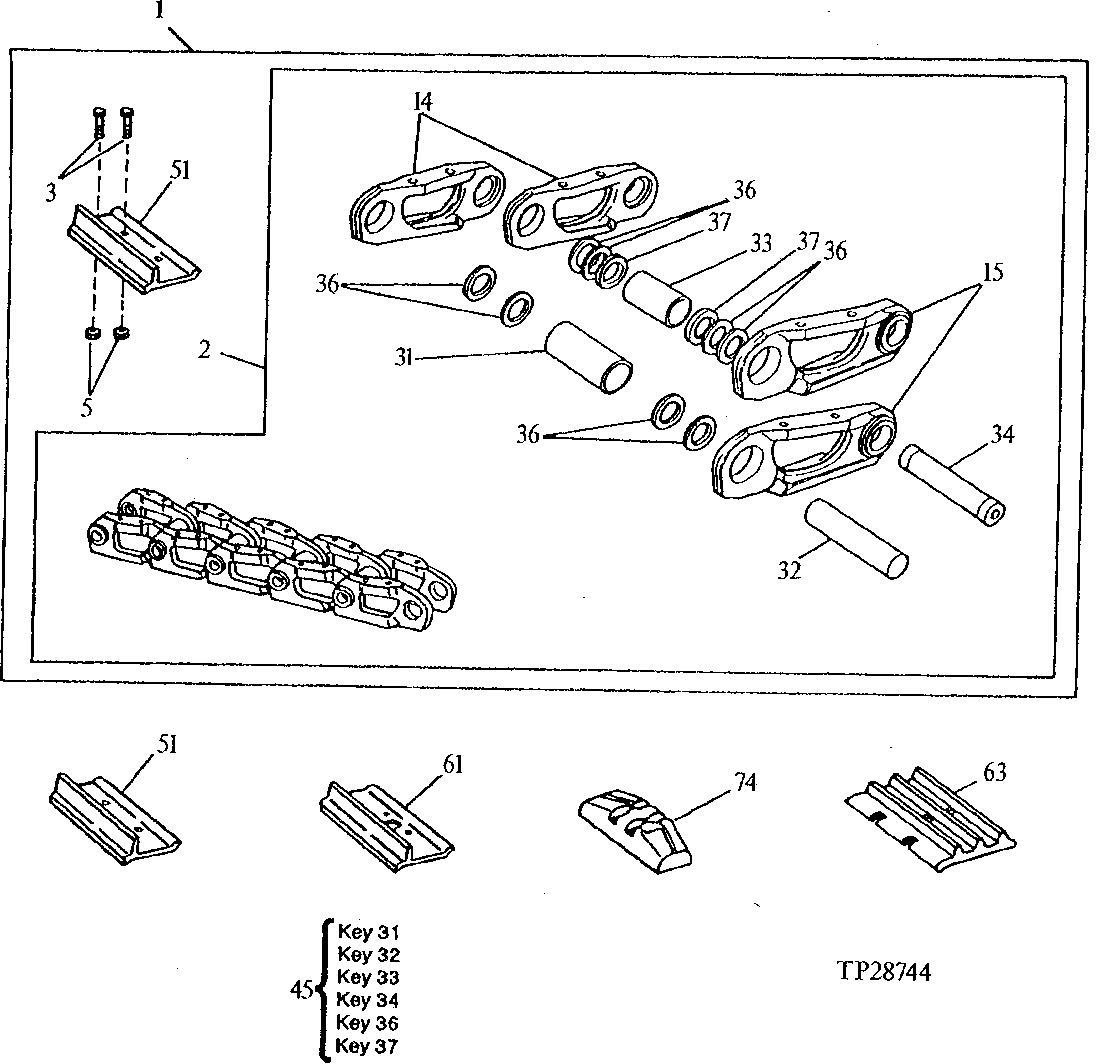

SEALED CHAIN 1/2", WITH MASTER PIN AND NON-STRUTTED LINKS STD (36L) [01B07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/16" CHAIN WITH SHOES)
2	AT113052	2	TRACK CHAIN W/O SHOES	(36L) (USE WITH SPROCKET T129880) (SUB FOR AT74166, AT113079 AND AT148558)
2	AT104561	2	TRACK CHAIN W/O SHOES	(38L) (USE WITH SPROCKET T153045 OR T175962) (FOR RICE HARVESTERS, CAN BE USED FOR SMALL CRAWLERS BY ADDING OR DEDUCTING A LINK) (SUB FOR AT148572)
3	T74183	1	BOLT	(QUANTITY IS 144 OR 152)
3	T80151	1	BOLT	(FOR USE WITH SELF CLEANING SHOE) (QUANTITY IS 144 OR 152)
5	T74184	1	NUT	(QUANTITY IS 144 OR 152)
14	T112081	1	NON-STRUTTED LINK-LH	(QUANTITY IS 36 OR 38) (SUB FOR T75437)
15	T112080	1	NON-STRUTTED LINK-RH	(QUANTITY IS 36 OR 38) (SUB FOR T75436)
31	T105116	1	Bushing	(QUANTITY IS 35 OR 37) (SUB FOR T74182)
32	T74178	1	Track Pin	(QUANTITY IS 35 OR 37)
33	T74177	1	Master Track Bushing	-
34	T74185	1	Master Track Pin	-
36	T105117	1	Spring Washer	(QUANTITY IS 144 OR 152) (SUB FOR T74180)
37	T105131	2	Washer	(SUB FOR T74186)
45	AT104530	1	Pin & Bushing Kit	(SUB FOR AT75611) (INCLUDES (35) T105116, (144) T105117, (2) T105131, T74177, (35) T74178 AND T74185) (FOR 38L, ALSO ORDER (2) T105116, (2) T74178 AND (8) T105117)
51	T112404	1	SINGLE BAR SHOE	406MM (16") (SUB FOR T75586)
51	T112405	1	SINGLE BAR SHOE	457MM (18") (QUANTITY IS 36 OR 38) (SUB FOR T75507)
51	T112406	1	SINGLE BAR SHOE	610MM (24") (QUANTITY IS 36 OR 38) (SUB FOR T106997)
61	T112400	1	OPEN CENTER 1 BAR SHOE	406MM (16") (QUANTITY IS 36 OR 38) (SUB FOR T75591)
61	T112401	1	OPEN CENTER 1 BAR SHOE	457MM (18") (QUANTITY IS 36 OR 38) (SUB FOR T75592)
61	T112402	1	OPEN CENTER 1 BAR SHOE	610MM (24") (QUANTITY IS 36 OR 38) (SUB FOR T78331)
63	T75588	1	OPEN CENTER 3 BAR SHOE	356MM (14") (QUANTITY IS 36 OR 38)
74	T106996	1	SELF CLEANING SHOE	610MM (24") (SUB FOR T80152)

SEALED CHAIN 1/2", WITH MASTER PIN AND NON-STRUTTED LINKS STD (36L) [01B07]

Нет текстового описания
