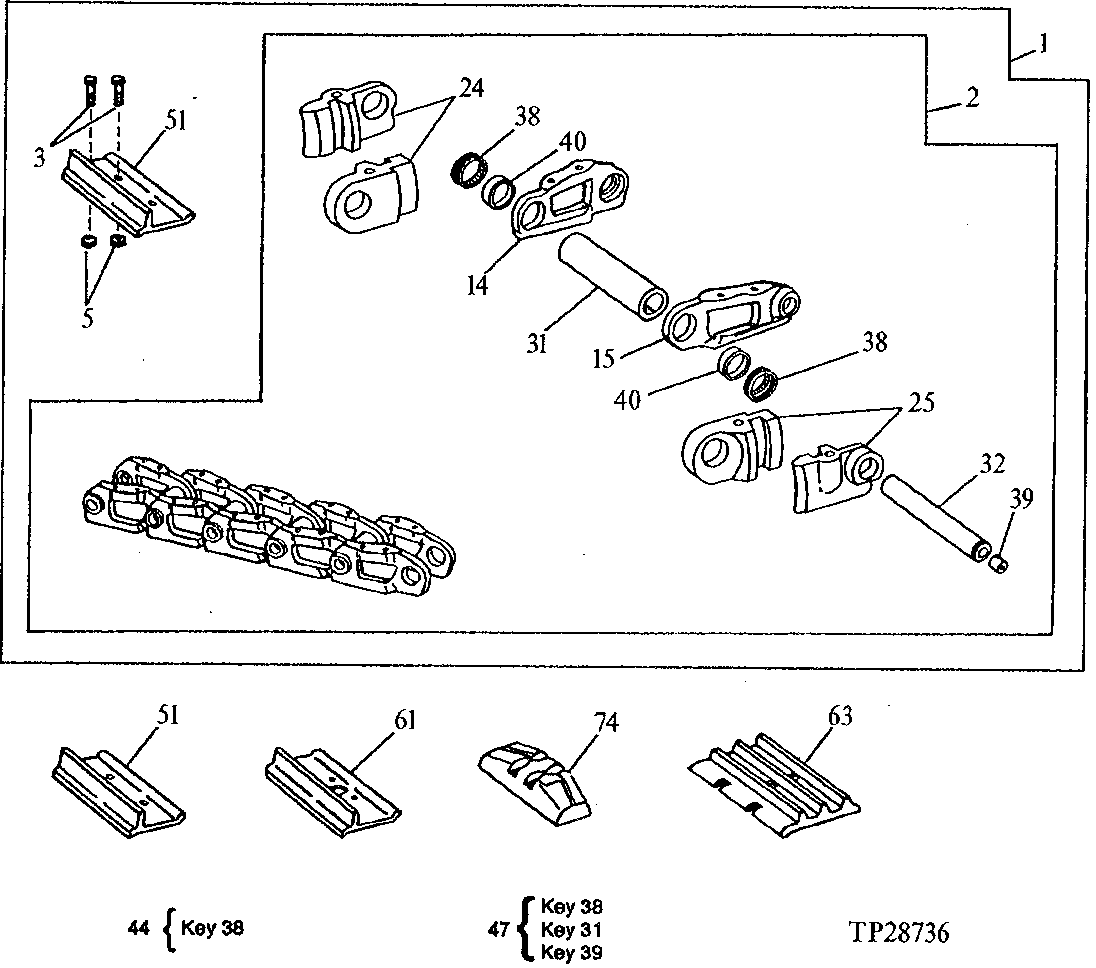

LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) [01B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/18" CHAIN WITH SHOES)
2	AT168619	2	TRACK CHAIN W/O SHOES	(36L) (USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT113036 AND AT148561)
3	T74183	144	BOLT	-
5	T74184	144	NUT	-
14	T112081	35	NON-STRUTTED LINK-LH	-
15	T112080	35	NON-STRUTTED LINK-RH	-
24	AT113369	1	MASTER TRACK LINK-SPLIT-LH	-
25	AT113370	1	MASTER TRACK LINK-SPLIT-RH	-
31	T112245	36	BUSHING	-
32	T112247	36	Track Pin	-
38	AT113118	36	Seal	(PACKAGE OF 2)
39	T149248	36	Plug	(INSERT IN MIDDLE OF PLUG T159270)
39	T151270	36	Plug	(SUB FOR T112246) (ALSO ORDER T149248)
40	T112252	72	Washer	-
44	AT124014	1	SEAL KIT	CONTAINS 72 SEALS (PACKED 2 PER PACKAGE)
47	AT113119	1	PLUG AND SEAL KIT BUSHING	CONTAINS 72 SEALS, 36 BUSHING AND 36 PLUGS
51	T112404	36	SINGLE BAR SHOE	406MM (16") (SUB FOR T75586)
51	T112405	36	SINGLE BAR SHOE	457MM (18") (SUB FOR T75507)
51	T112406	36	SINGLE BAR SHOE	610MM (24") (SUB FOR T106997)
61	T112400	36	OPEN CENTER 1 BAR SHOE	406MM (16") (SUB FOR T75591)
61	T112401	36	OPEN CENTER 1 BAR SHOE	457MM (18") (SUB FOR T75592)
61	T112402	36	OPEN CENTER 1 BAR SHOE	610MM (24") (SUB FOR T78331)
63	T75588	36	OPEN CENTER 3 BAR SHOE	355MM (14")
74	T106996	36	SELF CLEANING SHOE	610MM (24") (SUB FOR T80152)
77	-	36	Part 25	350MM (13") AT125940, NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365 PHONE 800-289-1456, (SUB FOR AT22880)

LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) [01B11]
